9.3.5. Step 5: Mounting the Gate Bracket
Although the installation is easier when using the VERT-X Metal Template (which
can be purchased as an optional extra), it is possible to install the unit without
the use of the template.
9.3.5.1. VERT-X Metal Template
From Figure 18 and Table 6 find
the corresponding C-Value for the
installation determined in Section
9.3.1.

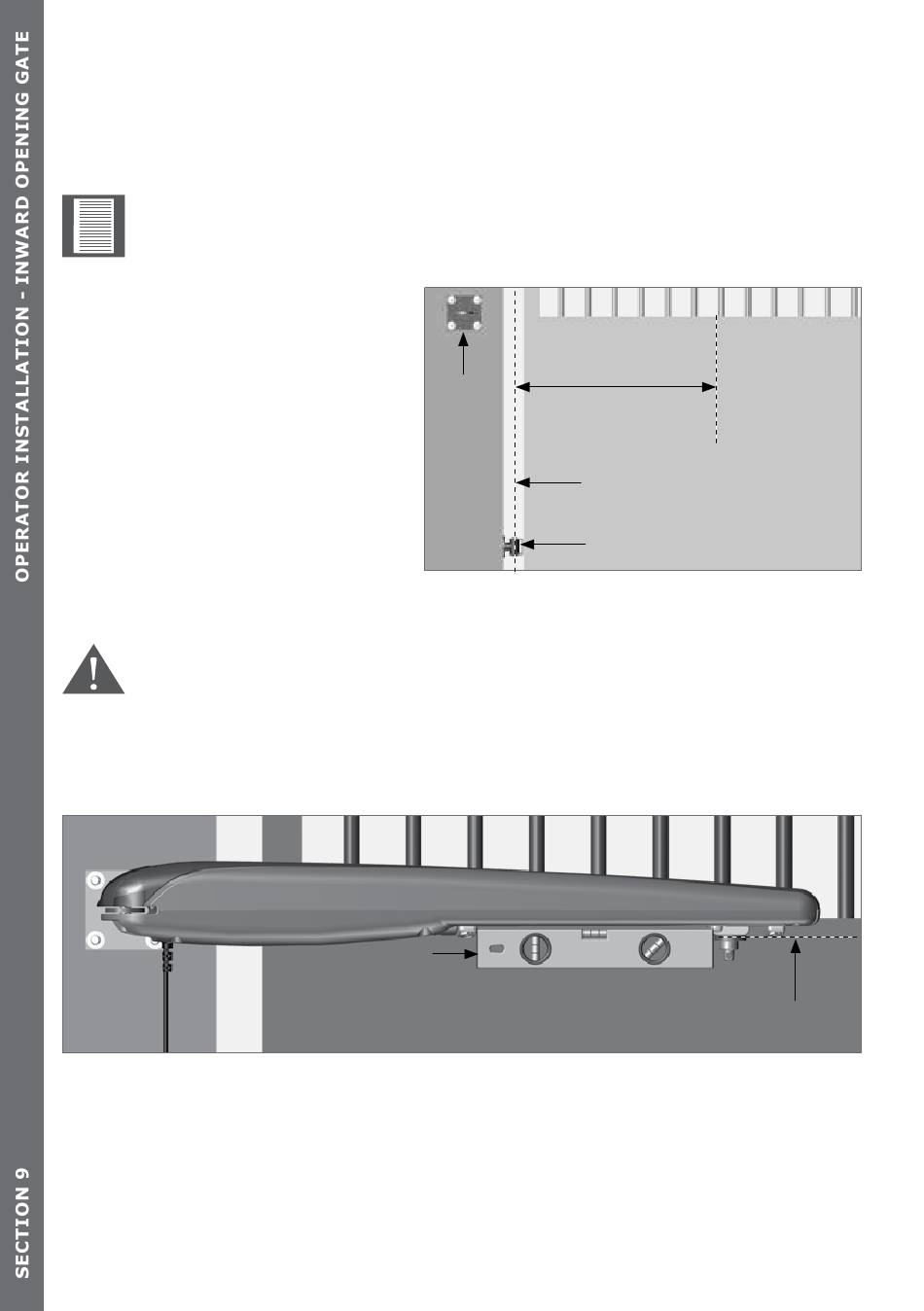

Close the gate leaf and mark the
C-Value distance along the gate leaf
(measured from the Gate Hinge
Point).
Refer to Figure 28 for details.
• The operator should never be run manually directly off of a battery!
Doing so and driving the operator into an endstop will result in serious
damage being sustained by the worm drive
• Never lubricate the worm drive
Mount the operator to the Wall Bracket and, using a spirit level, level the operator and
determine the height of the Gate Bracket. Mark the height of the Gate Bracket.
Wall
Bracket
Spirit level
FIGURE 29. MARK THE GATE BRACKET HEIGHT
page 34
C
Gate Hinge Point
Gate Hinge
FIGURE 28. MARK THE C-VALUE
With the operator levelled,
mark the Gate Bracket
height on the gate
