CENTURION SYSTEMS VERT-X Mechanical Installation Manual page 45

Mount the Wall Bracket in the correct
position onto the wall using the
preferred method as discussed in
Section 6.5 or mount it to the custom
bracket as shown in Figure 44.
10.3.4. Step 4: Cutting the Gate
Bracket
Determine the E-Value for this
specific installation by following
the example in section 10.3.1 and
substituting the hinge depth of
this specific installation into the
calculation.
Cut the Gate Bracket to the E-Value
length in order to mount the bracket
to the gate and achieve the correct
D-Value.
www.CentSys.com

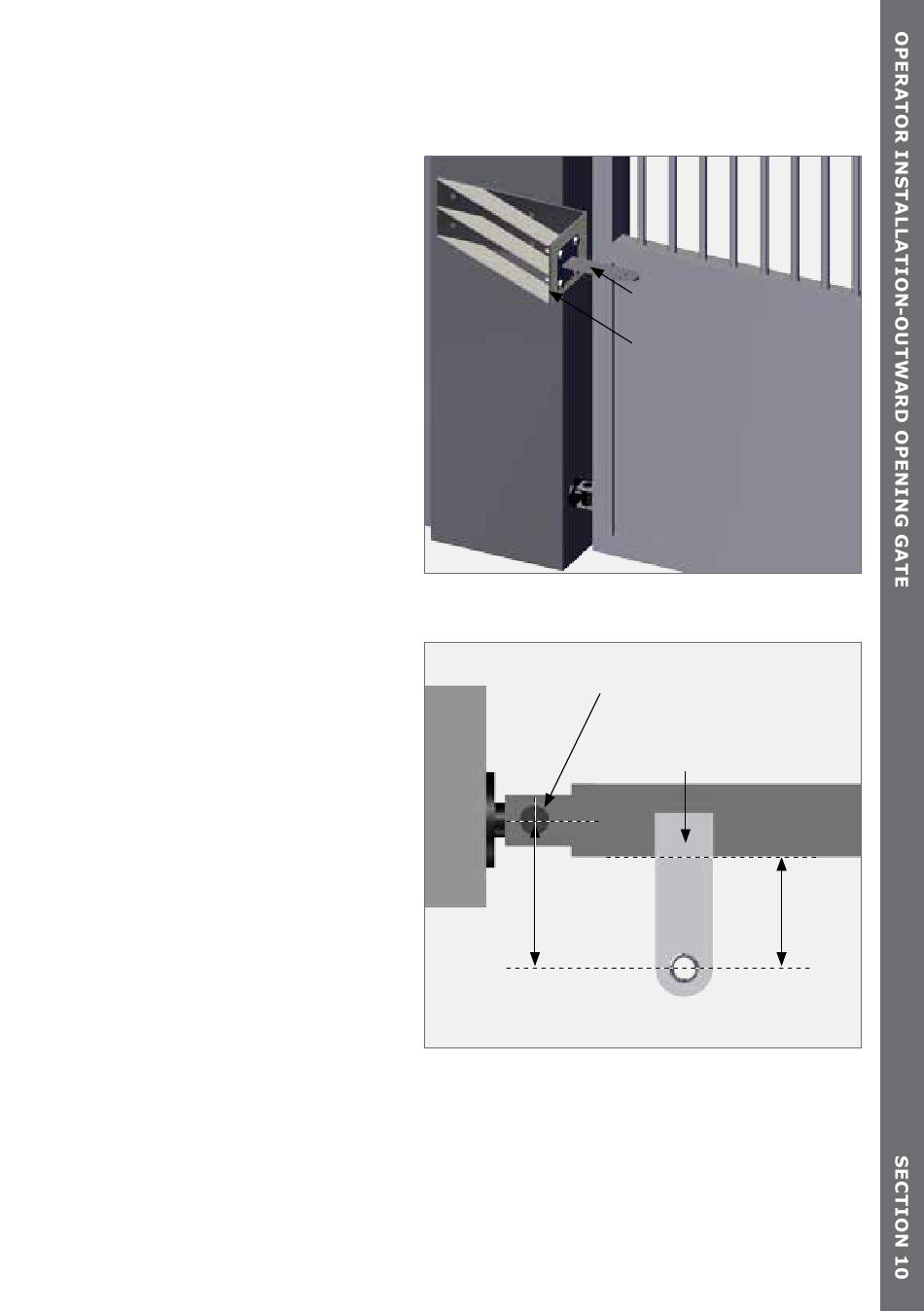

FIGURE 44. MOUNT THE WALL BRACKET
Gate Hinge Point
D
FIGURE 45. CUT THE GATE BRACKET
page 45
Wall Bracket
Typical Custom
Bracket
Cut Gate Bracket
to length
E
