6.7. Wall Bracket Mounting Methods

For reliable operation, it is important to ensure that the way the operator is secured to the
wall takes into account the strength of the pillar, the size of the gate and how frequently the
gate will be used.
6.7.1. Through-Wall
Applications:
• Pre-fabricated walling
• For heavy gates operating
frequently, use this method
6.7.2. Chemical Anchors
Applications:
• Masonry pillars
• Frequently use
6.7.3. Welding
Application:
• Steel pillars
www.CentSys.com

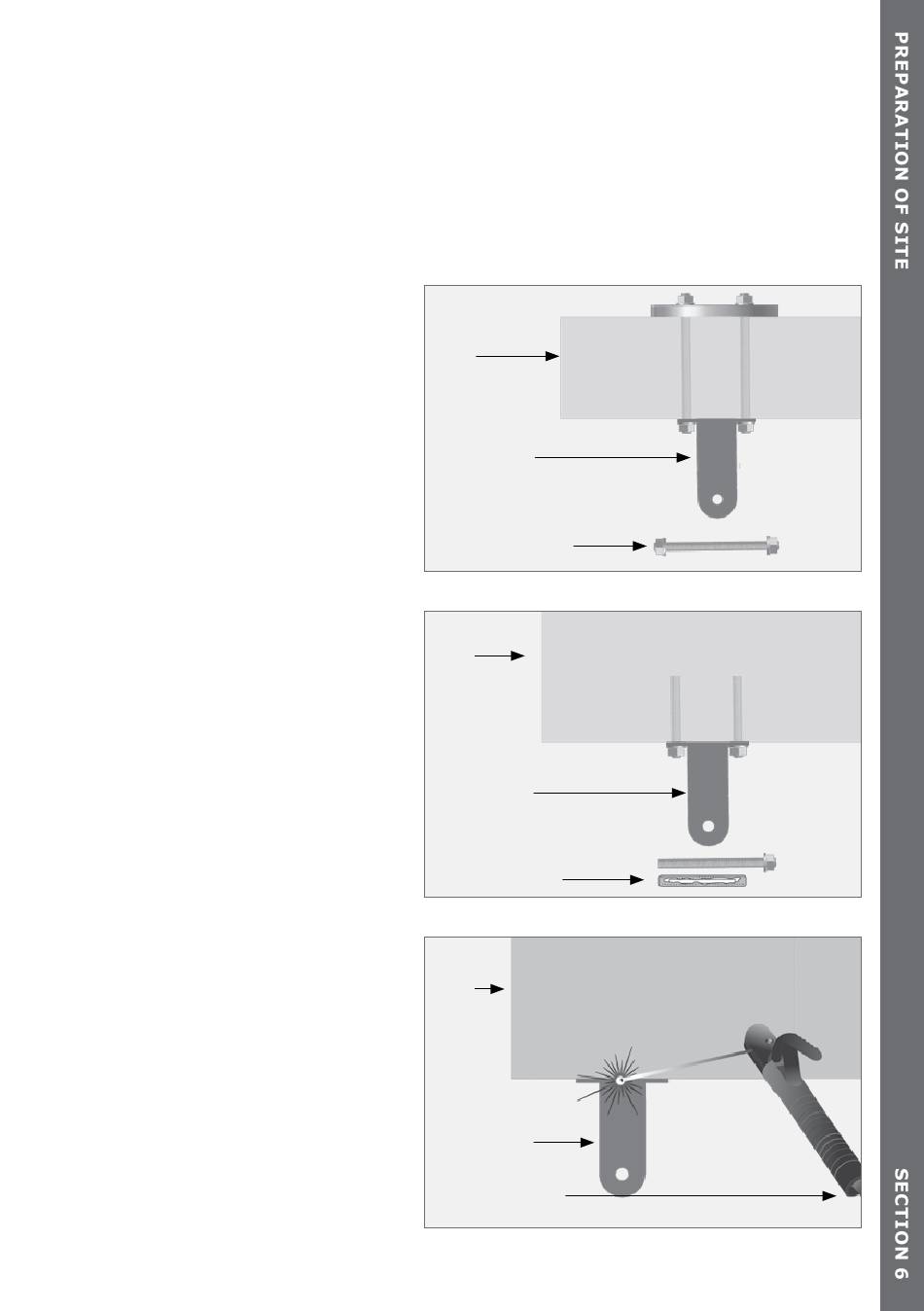

Pillar
Wall Bracket
Through-wall bolt
FIGURE 10. THROUGH-WALL
Pillar
Wall Bracket
Chemical anchor
FIGURE 11. CHEMICAL ANCHORS
Steel
pillar
Wall Bracket
Welding machine
page 23
FIGURE 12
