6.5. Inward Opening Installation - 100º
Figure 7 shows the minimum wall clearance and maximum pillar to gate hinge point
distance for an inward opening gate leaf opening to an angle of 100°.
The pillar to gate hinge point maximum ensures that the operator does not foul against
the pillar when installed. The minimum wall clearance in the case of the 100° opening
ensures that the gate does not run into the wall.
•
For gates 1.0m to 2.0m long, the minimum wall clearance is 370mm
•
For gates 2.0m to 3.0m long, the minimum wall clearance is 540mm
Pillar to gate hinge
(60mm maximum)
Wall
Minimum wall
clearance as
indicated in
text above
Side wall

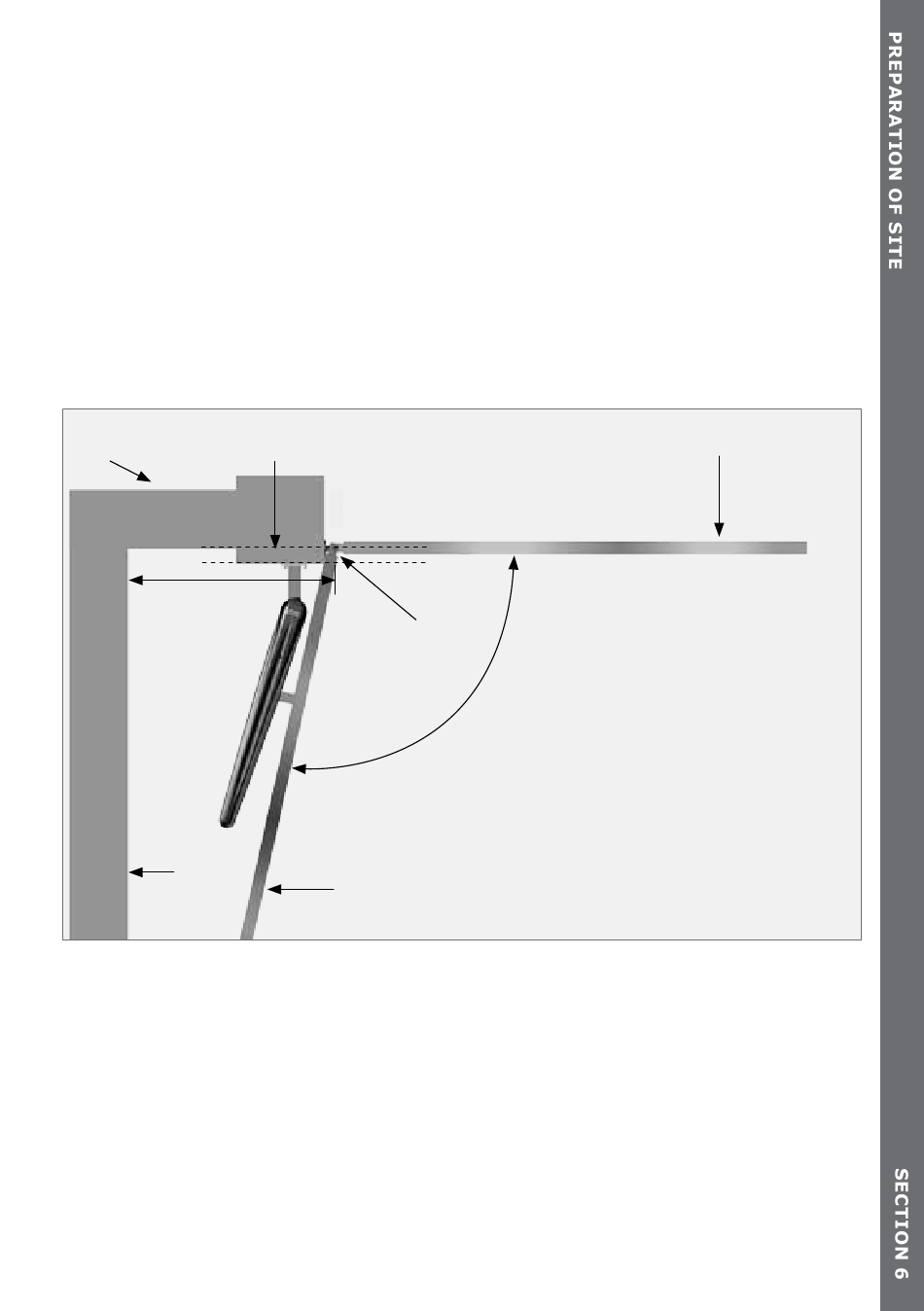

FIGURE 7. SIDE WALL LIMITATION FOR A 100° INWARD OPENING GATE
www.CentSys.com
Gate Hinge Point
Gate openning 100º
Gate in open position
page 21
Gate in closed position
