9.3.4.1. Cutting the Gate
Bracket
Determine the E-Value for this
specific installation by following
the example in section 9.3.1 and
substituting the hinge depth of
this specific installation into the
calculation.
Cut the Gate Bracket to the E-Value
length in order to mount the bracket
to the gate and achieve the correct
D-Value.

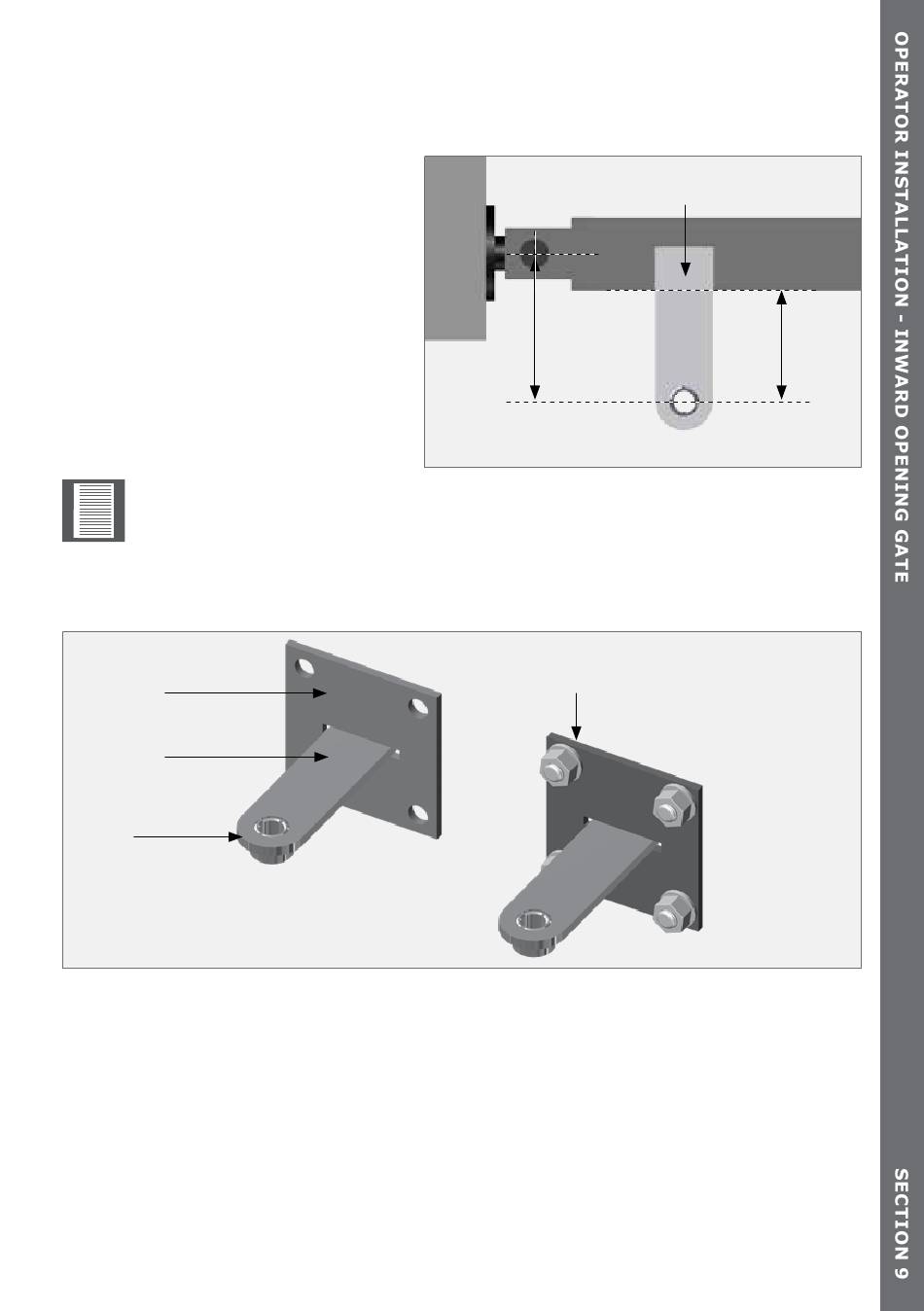

The measurement is taken
from the centre of the hole
of the Gate Bracket as
indicated in Figure 26.
9.3.4.2. Making Up a Bracket for a Non-steel Gate
Wall Bracket
Mounting Plate
(ordered
separately)
Weld brackets
together
Gate
Bracket
In the case where the gate is not manufactured from steel or the mounting point for the
front bracket is not on a steel section of the gate, it is necessary to make up a mounting
bracket for the Gate Bracket. This is easily achieved by purchasing a second Wall
Mounting Bracket and welding the Gate Bracket to the Wall Bracket Mounting Plate.
www.CentSys.com
FIGURE 27. ATTACH THE GATE BRACKET ONTO A NON-STEEL GATE
page 33
Cut Gate Bracket
to length
D
FIGURE 26. CUT THE GATE BRACKET
Fasten the welded Gate
Bracket to the gate
E
