9.3.3.2. Cut and Weld the Wall
Bracket
Mark the determined length on the
Wall Bracket.
Measure the determined
length from the centre of
the hole.
Cut off excess length.
Insert the Wall Bracket into the
mounting plate.
Weld the brackets together.
9.3.4. Step 4: Mounting the
Wall Bracket Assembly
From Figure 18 and Table 6 find
the corresponding A-Value for the
installation determined in
Section 9.3.
Using a steel ruler (tape measure) or
the VERT-X ABS template, determine
the mounting position of the Wall
Bracket.
Ensure that the
measurement is taken to the
centre of the hole as shown
in Figures 24 and 25.
Mark the Wall Bracket in the correct
position on the wall and then mount
it using the preferred mounting
method as discussed in Section 6.5.
Cut off
Excess length
Mark length
on bracket
Wall Bracket
length

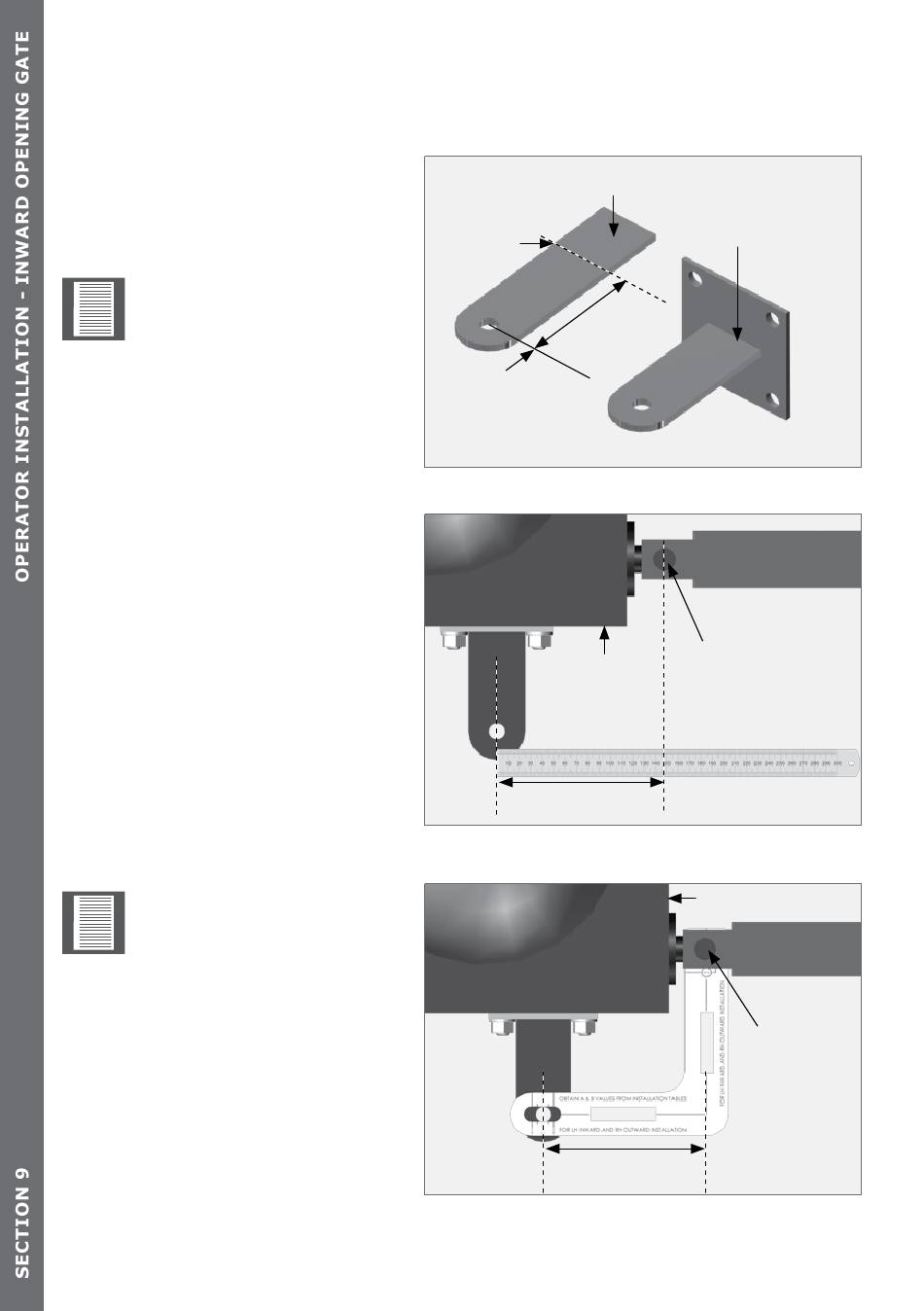

FIGURE 23. CUT AND WELD THE WALL BRACKET
Pillar
Wall Bracket
position (Value A)
FIGURE 24. DETERMINE WALL BRACKET
POSITION (USING A RULER)
Wall Bracket
position (Value A)
FIGURE 25. DETERMINE THE WALL BRACKET
POSITION (USING THE ABS TEMPLATE)
page 32
Weld the Wall
Bracket to the
wall mounting
bracket plate
Gate Hinge
Point
Pillar
Gate Hinge
Point
