10. Operator Installation-Outward Opening Gate
• The installation guidelines shown below include the use of the VERT-X
ABS template and the VERT-X metal template
• The installation can still be performed without these templates by
using a tape measure and spirit level
10.1. Key Terms Used in this Section
A-Value: The horizontal distance from the pivot point on the Wall Bracket to the gate
hinge point
B-Value: The vertical distance from the pivot point on the Wall Bracket to the gate hinge
point
C-Value: The horizontal distance from the gate hinge point to the Gate bracket pivot
point
D-Value: The distance from the gate center line to the pivot point on Gate Bracket
welded assembly
E-Value: The distance from the face of the gate to the pivot point on the Gate Bracket
welded assembly
10.2. Installation Tables - Outward Opening
Wall
Gate Hinge Point
B
A
In most cases it will be necessary to make up a suitable extension bracket on
which to mount the operator's Wall Bracket.
Gate in open position
C
VERT-X
operator

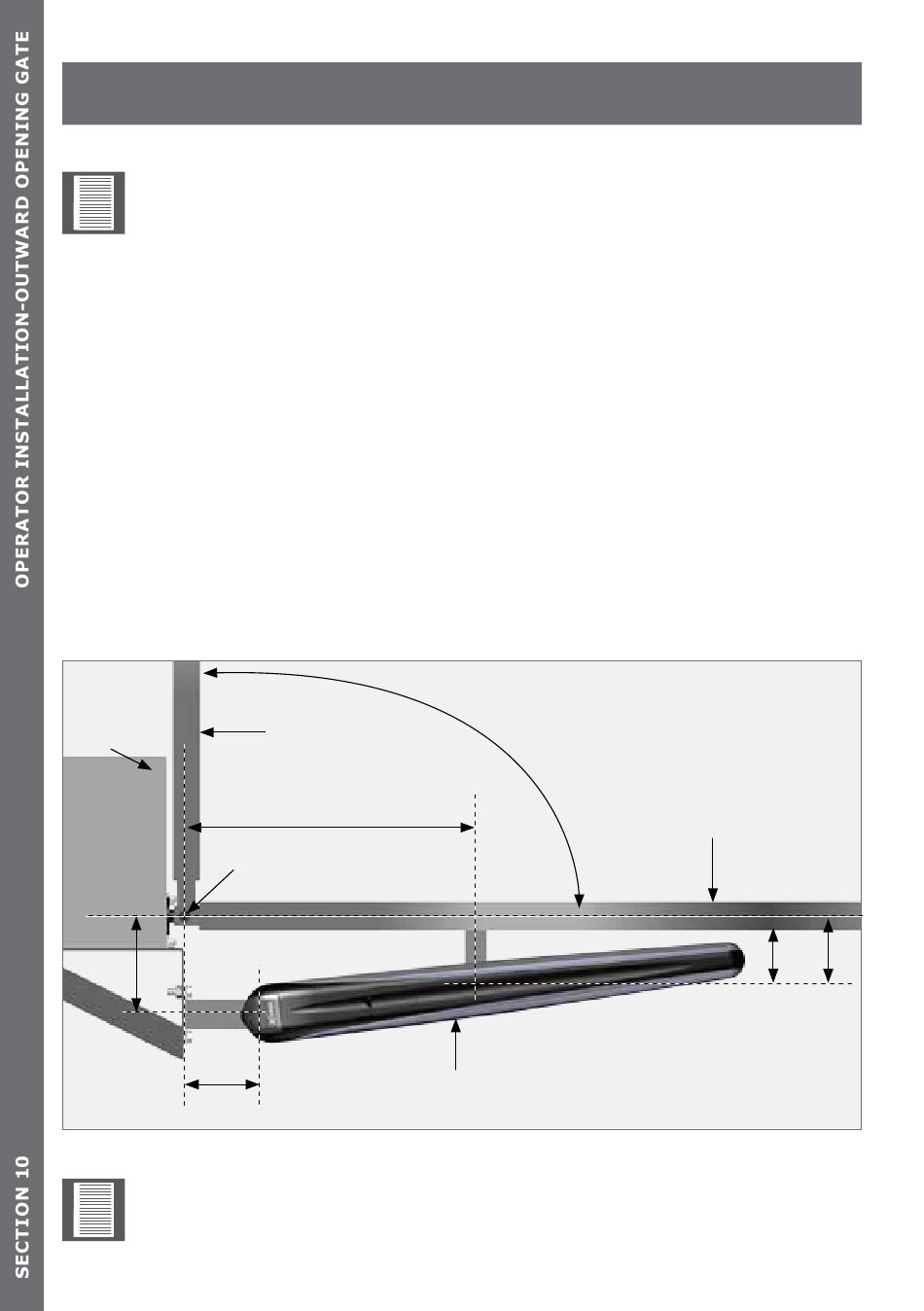

FIGURE 37. OUTWARD OPENING INSTALLATION
page 40
Gate opening angle
Gate in closed position
D
E
