6.8. Gate Bracket Mounting

6.8.1. Steel Gates
The Gate Bracket is designed to
be welded onto the gate.
6.8.2. Non-Steel Gates
In the case where the gate is not manufactured from steel:
• Use a suitable bracket made up from steel so that the Gate Bracket can be welded to it
and then fastened to the gate using an appropriate method, OR
• Another Wall Mounting Bracket can be purchased and then the Gate Bracket can be
welded to it as shown in Figure 16.
Wall Bracket
Mounting Plate
(ordered
separately)
Weld brackets
together
Gate
Bracket
www.CentSys.com

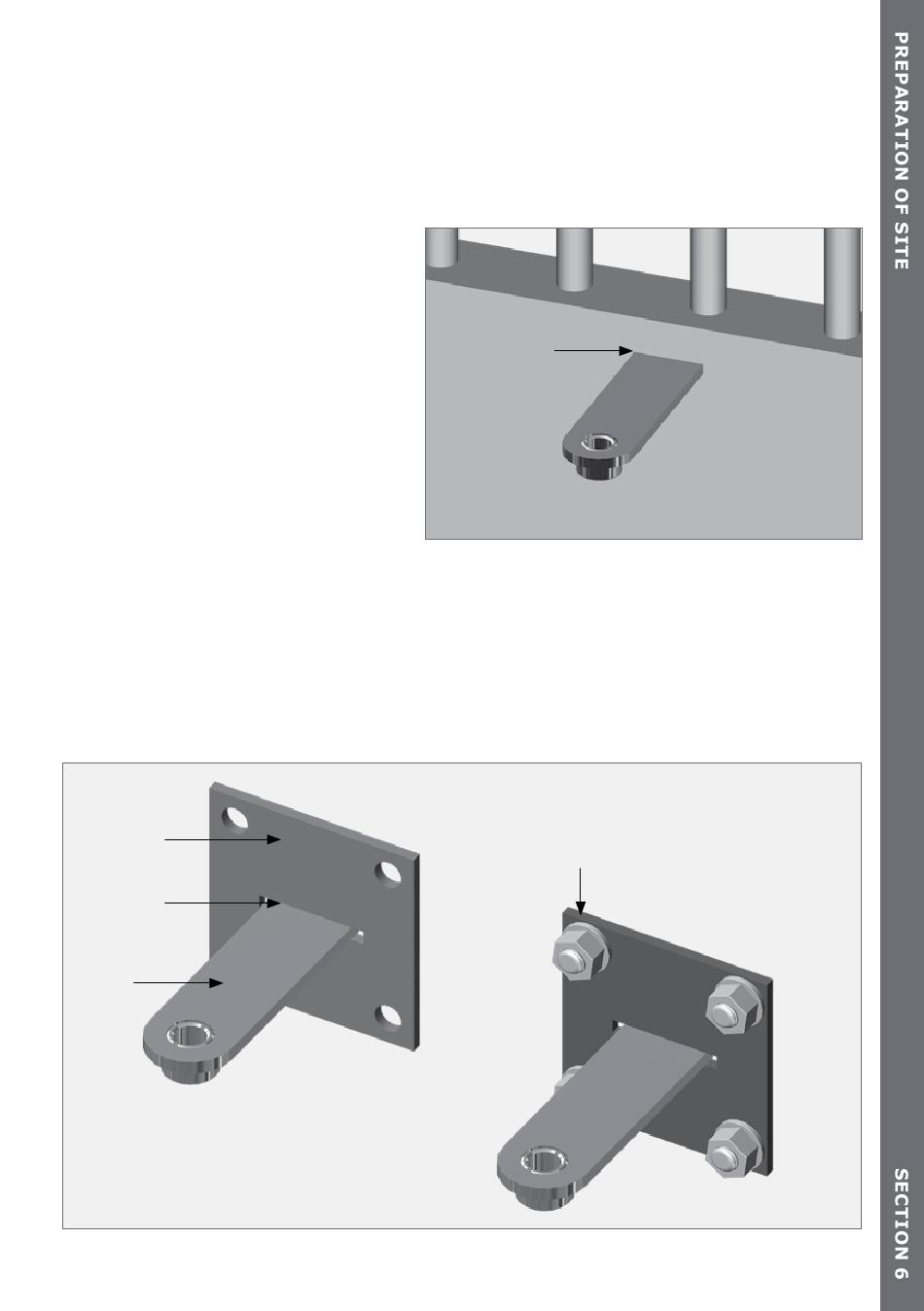

FIGURE 16. MOUNTING THE GATE BRACKET TO A NON-STEEL GATE
page 25
Weld Gate
Bracket to gate
FIGURE 15. WELD GATE BRACKET TO GATE
Fasten the welded Gate
Bracket to the gate
