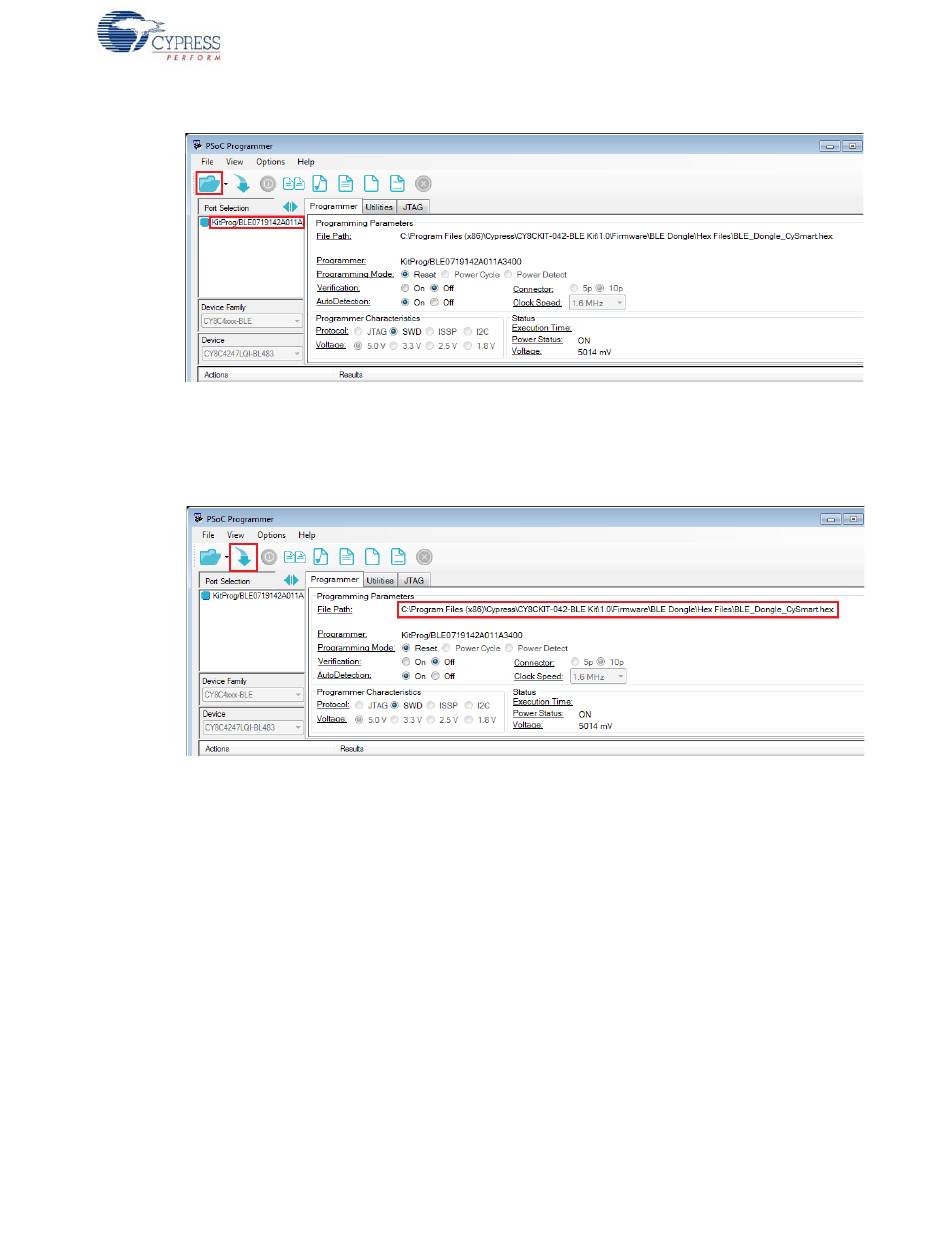

Figure 3-16. Open Hex File
4. Ensure the other settings match as shown in
programming. The status bar at the bottom of the PSoC Programmer window will show the
programming status and the result (Pass/Fail).
Figure 3-17. Programming Hex File to Dongle
5. After programming is completed successfully, the BLE Dongle firmware is updated and can be
used to connect to the CySmart Central Emulation Tool.
3.7

USB-UART Bridge

The KitProg on both the BLE Pioneer Baseboard and BLE Dongle acts as a USB-UART bridge.
When connected to PC, a device named KitProg USB-UART is available under Ports (COM &
LPT) in the Device Manager. The UART lines between modules and KitProg are hard-wired on
board, with UART_RX assigned to P1_4 and UART_TX assigned to P1_5 on PSoC 4 BLE/PRoC
BLE device.
COM terminal software, such as Hyperterminal or TeraTerm, can be used to send and receive data.
UART data sent from PSoC 4 BLE/PRoC BLE device on UART_TX line will be received by the
software. Data entered in the software will be received by PSoC 4 BLE/PRoC BLE on UART_RX
line. Refer to Advanced section in
CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *C
Figure 3-16. Click the Program button to start
®
CY8CKIT-042 PSoC 4 Pioneer Kit User Guide
Kit Operation
for more details.
