Example Projects
14.Modify the Value field of the Client Characteristic Configuration descriptor to '00:00' to disable
notifications.

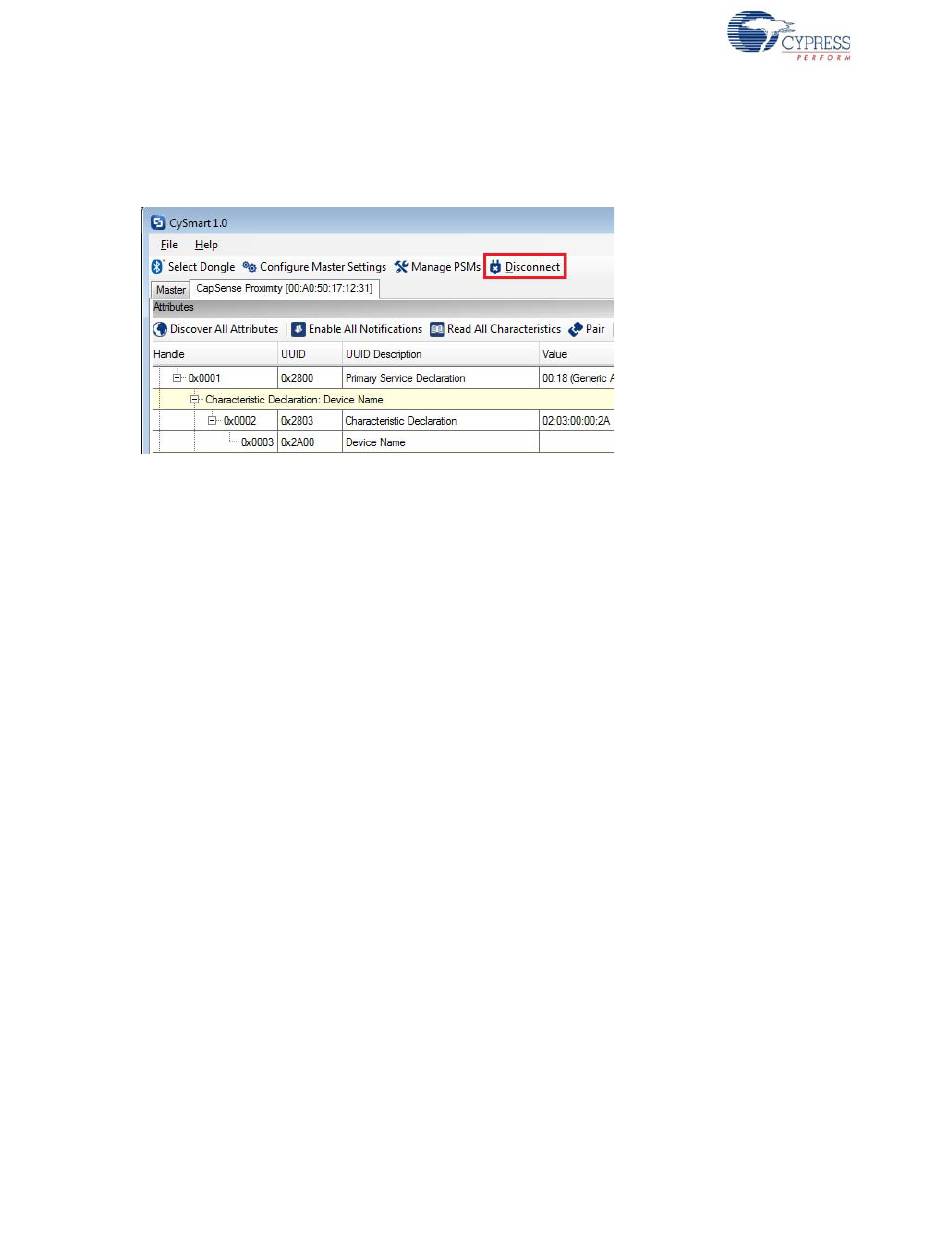

15.To disconnect from the device, click Disconnect, as shown in
Figure 4-45. Disconnect from the Device
16.Press user button (SW2) to wake up from sleep and restart the advertisement for the next
connection.
4.3.4.2 CySmart Mobile Application
To learn how to use the CySmart mobile application, see
the app user
To verify the CapSense proximity project using the CySmart mobile application, follow these steps:
1. Place the desired module on BLE Pioneer Baseboard.
2. Connect the five-inch wire as a loop to the proximity connector J14 on the baseboard.
3. Plug the BLE Pioneer Kit into the PC, using the J13 USB connector.
4. Program the kit with the CapSense proximity example project. Follow steps in
Projects on page 41
5. Press the user button (SW2) on the BLE Pioneer Kit to start the advertisement.
6. Open the CySmart mobile application on the mobile device. If Bluetooth is not enabled on the
device, the app will ask to enable it.
7. The app will automatically search for available Peripherals and list them. Select the CapSense
Proximity Peripheral, as shown in
68
guide.
to program the device.
Figure
CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *C
Figure
CySmart Mobile Application on page 112
4-46.
4-45.
Using Example
or
