Example Projects

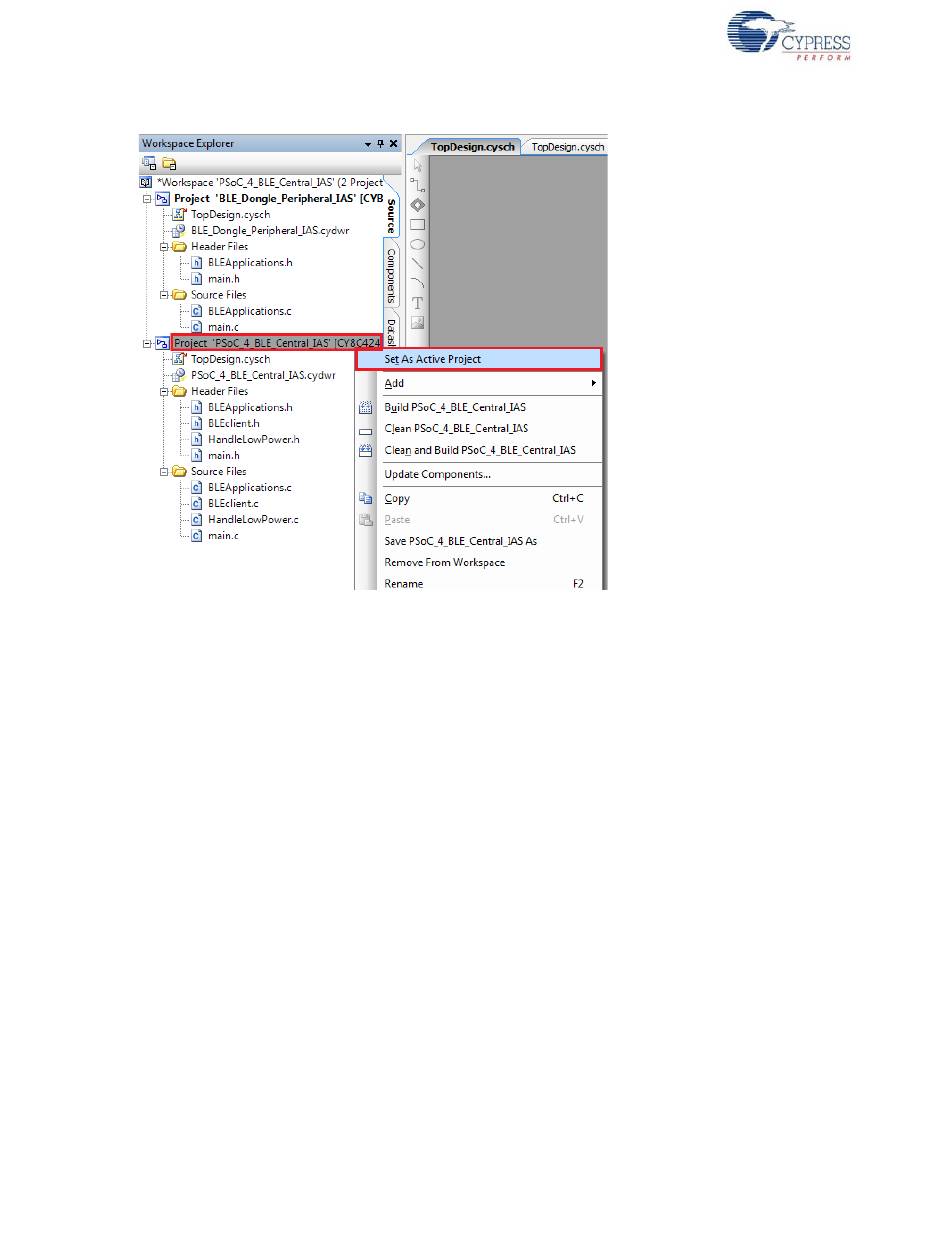

Figure 4-57. Set Central IAS Project as Active
6. Program
PRoC_BLE_Central_IAS project, depending on the module placed on the BLE Pioneer Kit.
7. Press button SW2 on the BLE Pioneer Kit to wake the system and start scanning. Scanning is
indicated by a blinking LED.
8. Wait for the BLE connection between the BLE Dongle and the BLE Pioneer Kit. The connection
success status is indicated on the baseboard in the following three stages:
a. Fast blinking blue LED represents scanning mode. During this mode, the BLE Pioneer Kit is
scanning for peripheral devices.
b. Slow blinking blue LED represents discovery mode. During this mode, the BLE Pioneer Kit
has found the BLE Dongle Peripheral device and has started the connection procedure.
c. The blue LED remains on, representing the connected mode. This mode indicates that the
Peripheral device has been connected and the application can now send alert levels.
9. Press button SW2 on the BLE Pioneer Kit to send the next alert level to the BLE Dongle. The
alert level will rotate from No Alert to Mid Alert to High Alert.
76
the BLE Pioneer Kit
CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *C
with either the PSoC_4_BLE_Central_IAS or the
