Additional Functionality of Header J2
The J2 header is a 6×2 header that supports Arduino shields. The Port 2 and Port 3 pins of PSoC 4
BLE and PRoC BLE are brought to this header. The Port 2 pins also connect to the onboard
CapSense slider through 560-ohm resistors. When the CapSense feature is not used, remove these
resistors to help ensure better performance with these pins.
5.1.4.2 PMod Connector - Digilent Pmod Compatible (J5-unpopulated)
This port supports Digilent Pmod modules (see
connect with the embedded control boards through either 6- or 12-pin connectors. The BLE Pioneer
Kit supports the 6-pin Pmod type 2 (SPI) interface. For Digilent Pmod cards, go to
www.digilentinc.com.
This header is not populated on the BLE Pioneer Baseboard. You must populate this header before
connecting the Pmod daughter cards. Refer to the "No Load Components" section of
(BOM) on page 133

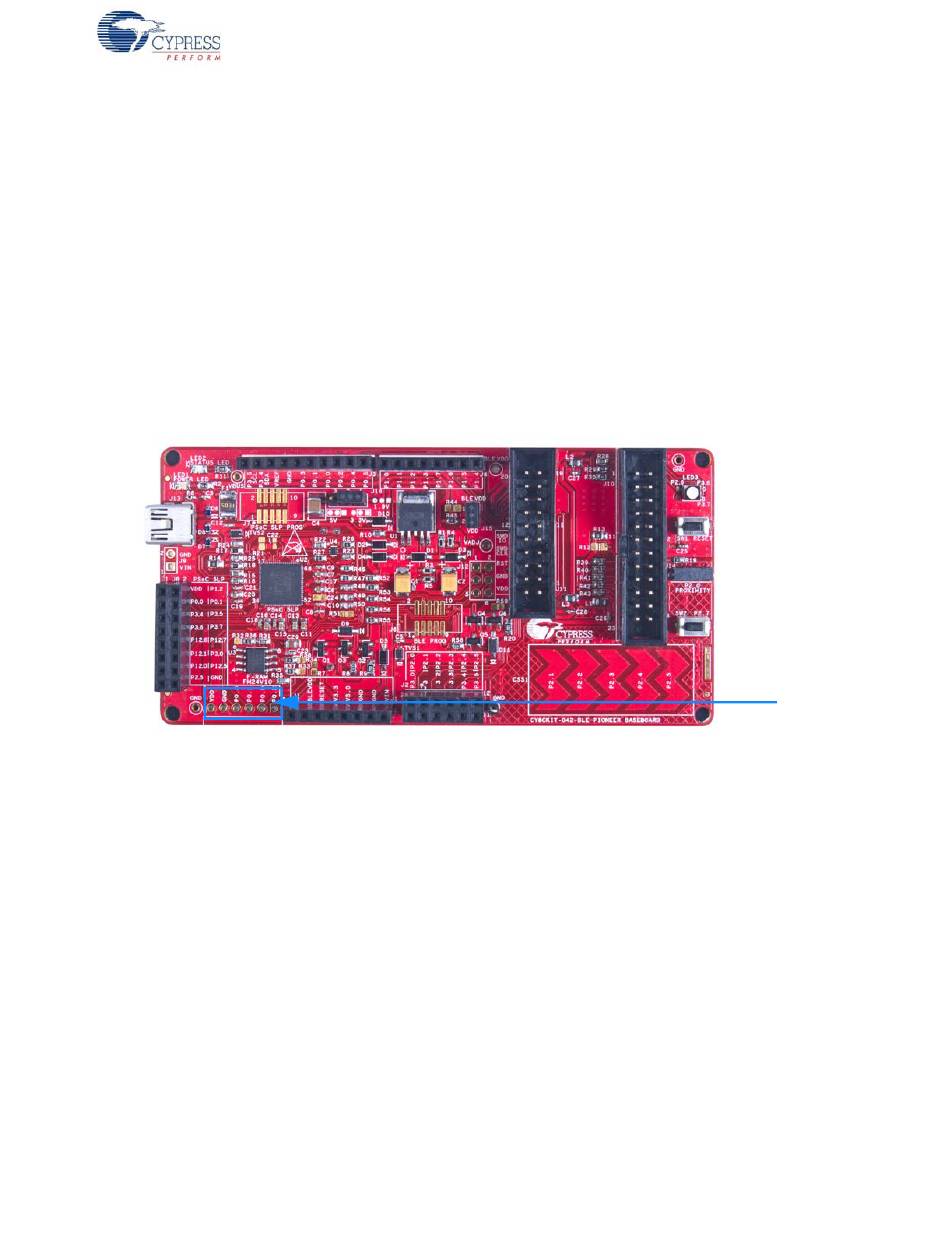

Figure 5-10. Schematics and Board Highlight of PMod Connector
CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *C
for the header part number.
Figure 5-10). Pmods are small I/O interfaces that
Hardware
Bill of Materials
®
Digilent
TM
Pmod -
compatible I/O
header (J5)
