The following methods are supported for measuring the current consumption of the module.
When the BLE Pioneer Baseboard is powered through the USB port (J13), remove jumper J15
■
and connect an ammeter, as shown in

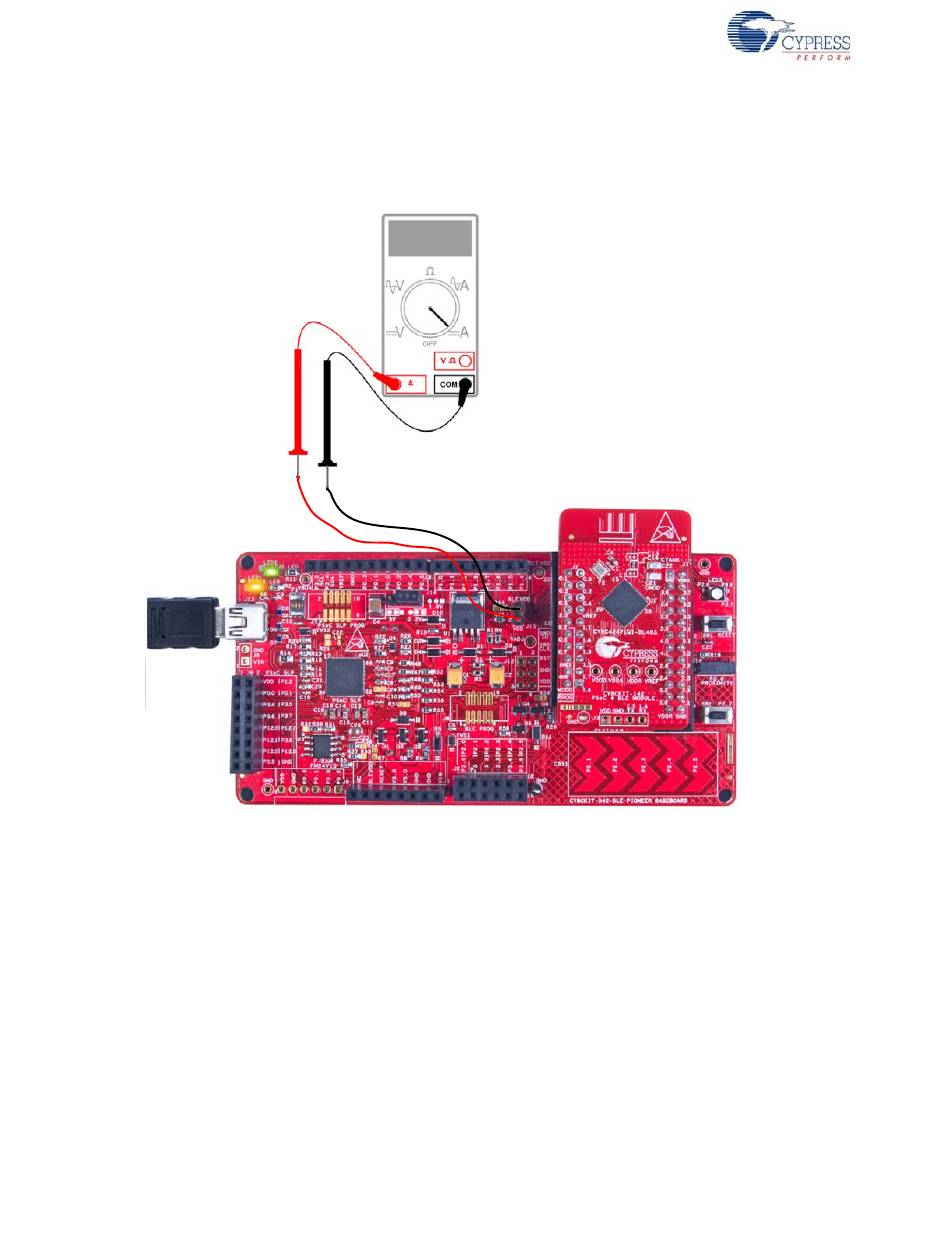

Figure 5-6. Current Measurement when Powered from USB Port
90
CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *C
Figure
5-6.
