Flow Chart

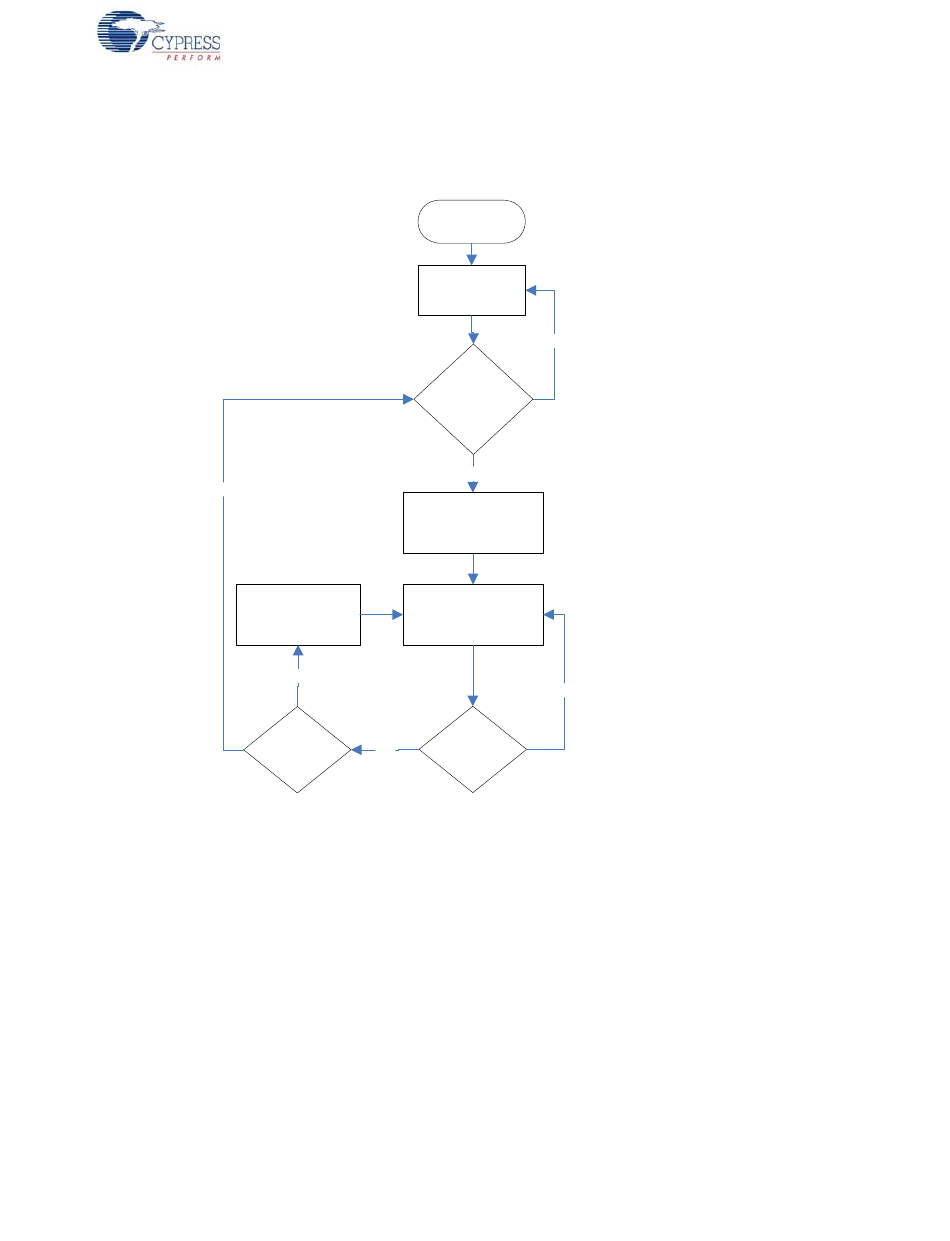

Figure 4-53 shows the flow chart for the IAS GATT client mode example project.
Figure 4-53. IAS GATT client mode Flow Chart
No
Write the next Alert
level (Alert levels will
be repeated )
connection
CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *C
Start
Initialize BLE
Module
Discovered
peripheral with
IAS Peripheral
Address ?
Initiate and complete
connect operation .
Provide LED indication
on connection complete
Check for configured
Button press event
Yes
Does
Button press
Yes
detected ?
exist ?
No
Yes
No
Example Projects
73
