BLE Pioneer Baseboard Details

The BLE Pioneer Baseboard consists of the blocks shown in
1. RGB LED
2. Module reset button
3. CapSense proximity header
4. User button
5. CapSense slider
6. Arduino compatible I/O headers (J2/J3/J4)
7. Arduino compatible power header (J1)
8. Digilent Pmod compatible I/O header (J5)
9. Cypress F-RAM 1-Mb (FM24V10-G)
10.PSoC 5LP - programmer and debugger (CY8C5868LTI-LP039)
11. PSoC 5LP I/O header (J8)
12.Coin cell holder (bottom side)
13.USB connector (J13)
14.Power LED and Status LED
15.System power supply jumper (J16) - LDO 1.9 V~5 V
16.BLE power supply jumper (J15) - for current measurement
17.Module headers (J10/J11)

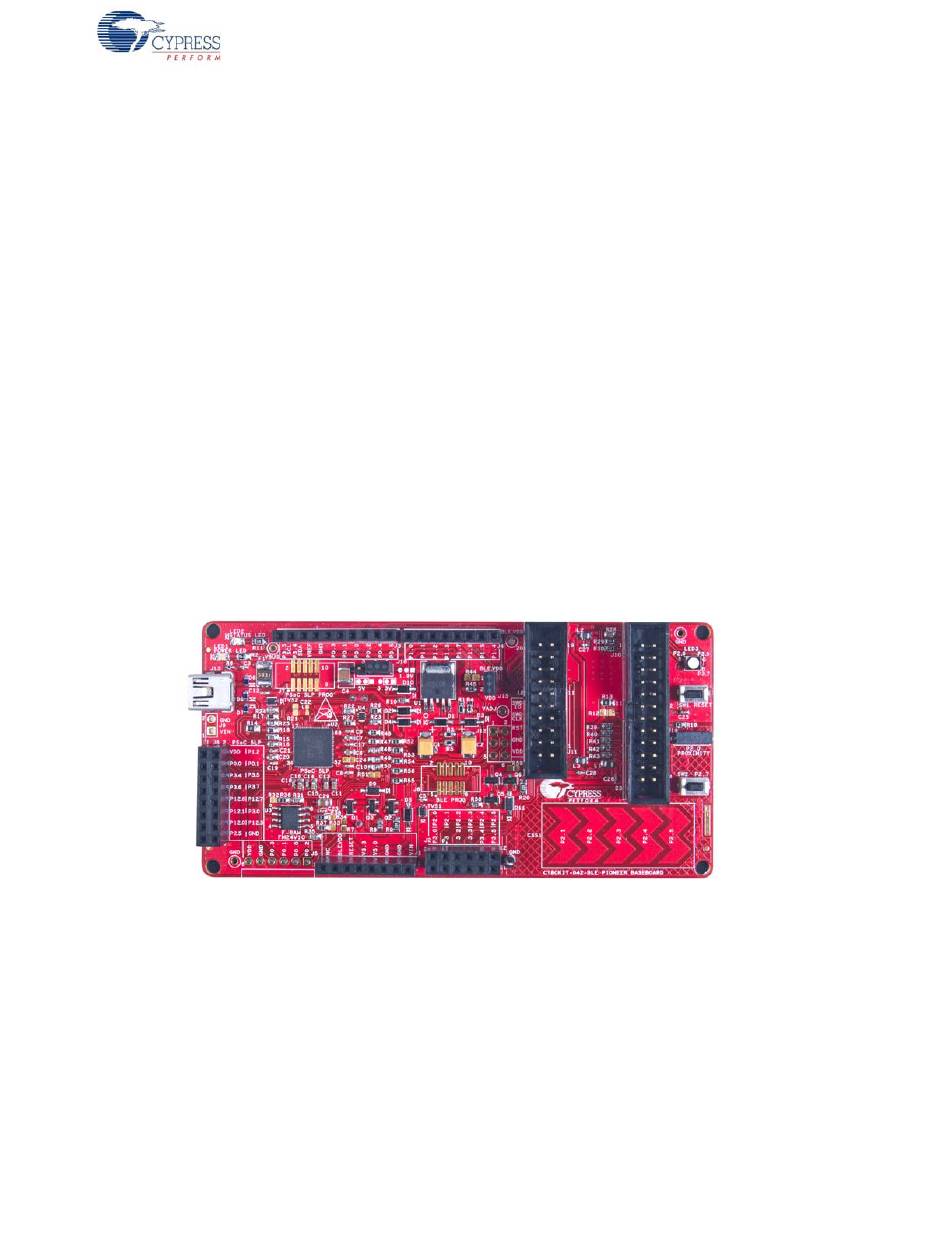

Figure 1-2. BLE Pioneer Baseboard
CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *C
Figure 1-2.
