Kit Operation

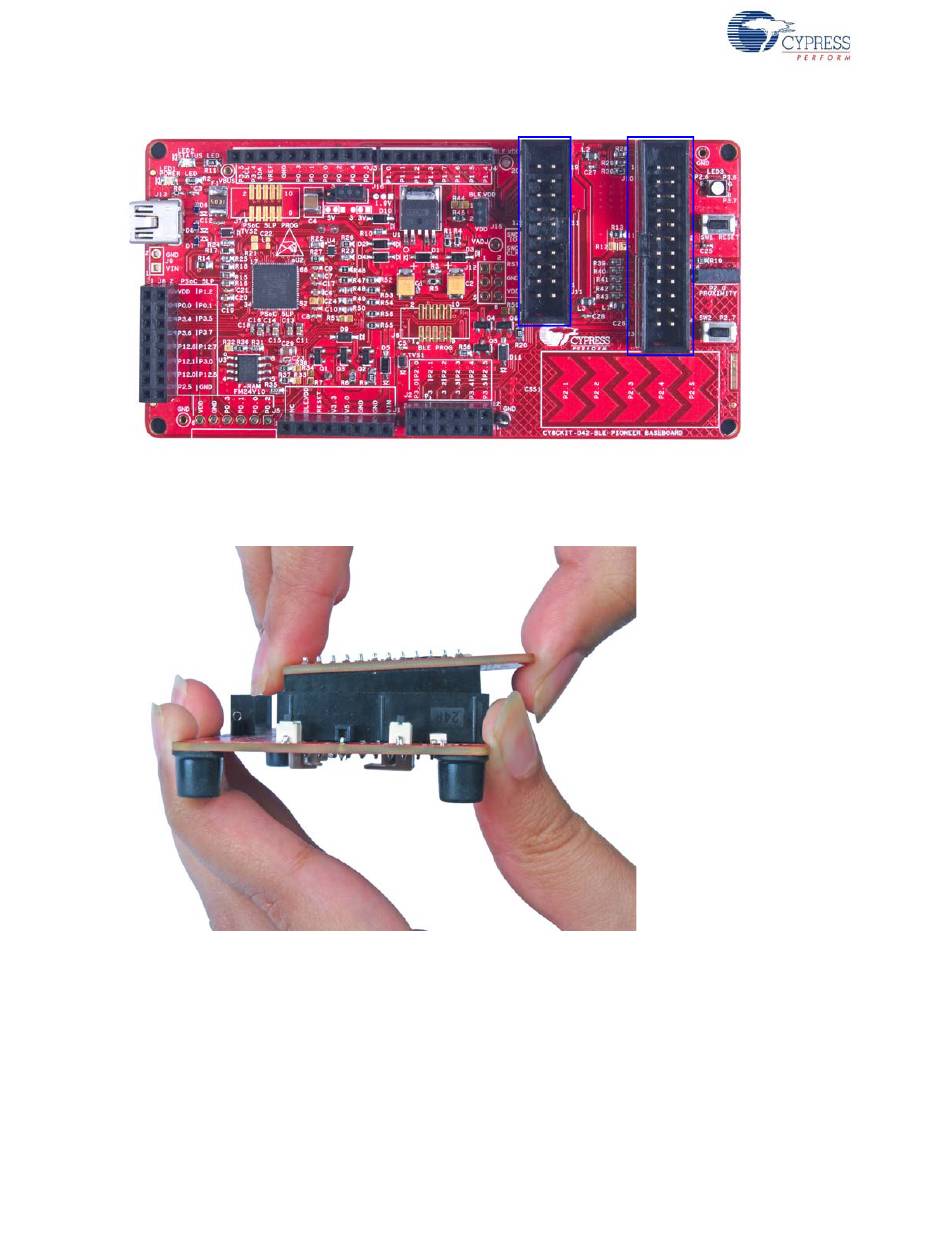

Figure 3-5. Baseboard with J10 and J11 Headers to connect modules
To remove the modules from the BLE Pioneer Kit, hold the BLE Pioneer Kit in one hand and the
module in the other, as shown in
Figure 3-6. Remove module connected on BLE Pioneer Kit
3.5

Programming and Debugging BLE Device

The BLE Pioneer Kit and BLE Dongle can be programmed and debugged using the KitProg. Before
programming the device, ensure that PSoC Creator and PSoC Programmer are installed on the PC.
See the section
3.5.1

Programming using PSoC Creator

1. Connect the BLE Pioneer Kit/BLE Dongle to the PC USB port, as shown in
30
Figure
Install Software on page 23
CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *C
3-6, and pull it out using a rocking motion.
for more information.
Figure 3-7.
