No Load Vtarg - Cypress CY8CKIT-042-BLE User Manual

5.1.2.2 Current Measurement Jumper
To demonstrate the low power consumption of PSoC 4 BLE/PRoC BLE Module, a two-pin header
(J15) is populated in series with the power supply to the module. This can be used to measure cur-
rent using an ammeter without the need to desolder any components from the BLE Pioneer Base-
board, as shown in

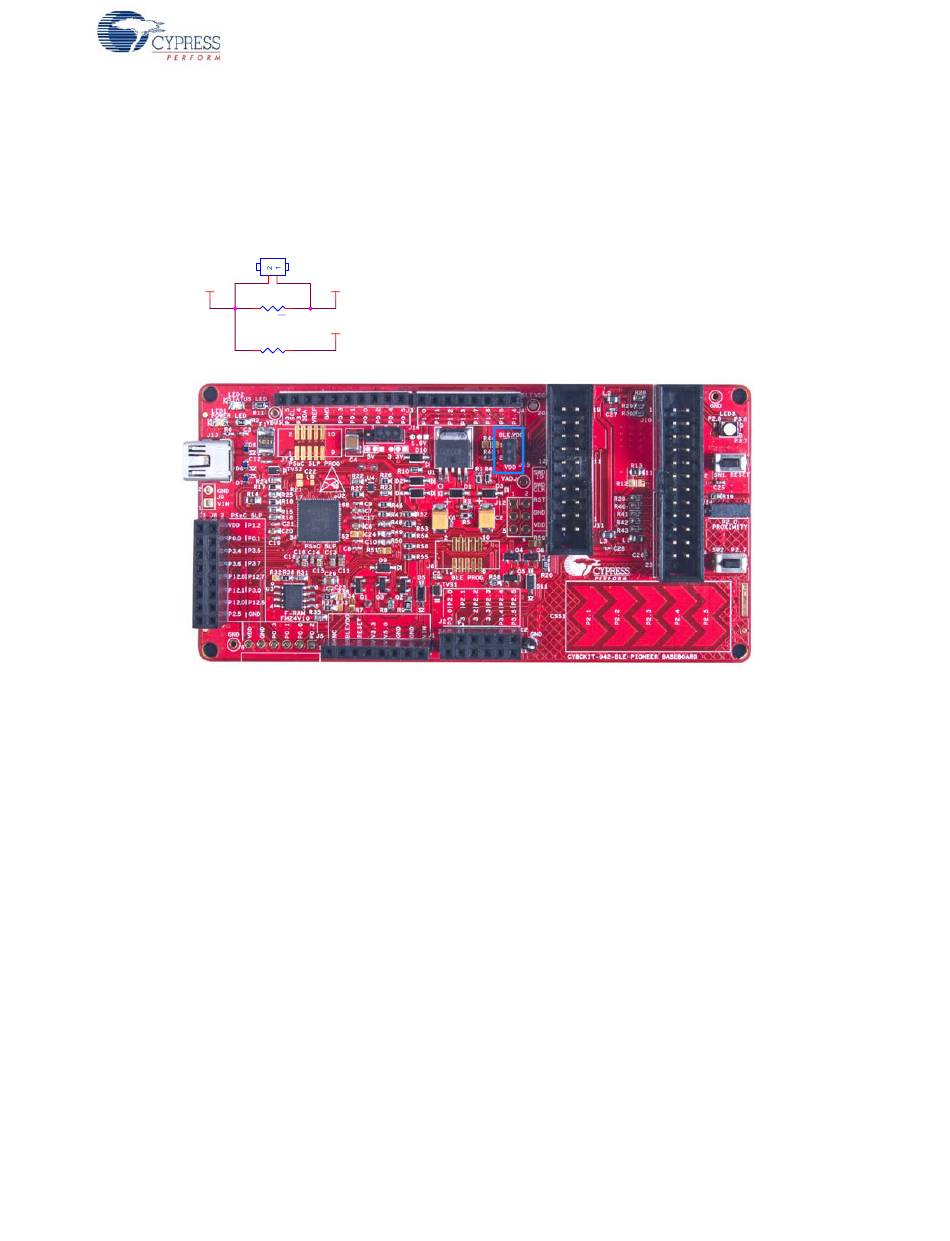

Figure 5-5. Schematics and Board Highlight of Current Measurement Jumper
J15
VDD
R44
NO LOAD
0603
R45
CY8CKIT-042-BLE Bluetooth® Low Energy (BLE) Pioneer Kit Guide, Doc. # 001-93731 Rev. *C
Figure 5-5.
HDR2
BLE_VDD
ZERO
VTARG
ZERO
Hardware
89
