Antenna Matching Network - Cypress CY8CKIT-042-BLE User Manual

Hardware
5.2.4

Antenna Matching Network

An Antenna Matching Network is required between the BLE device and the antenna to achieve opti-
mum performance
Transform the balanced output of the radio to an unbalanced connection to the antenna (balun).
■
Transform the output impedance of the radio to a 50-ohm antenna.
■
Suppress harmonics to a level below the regulations level in TX mode.
■
Suppress the local oscillator (LO) leakage in RX mode.
■

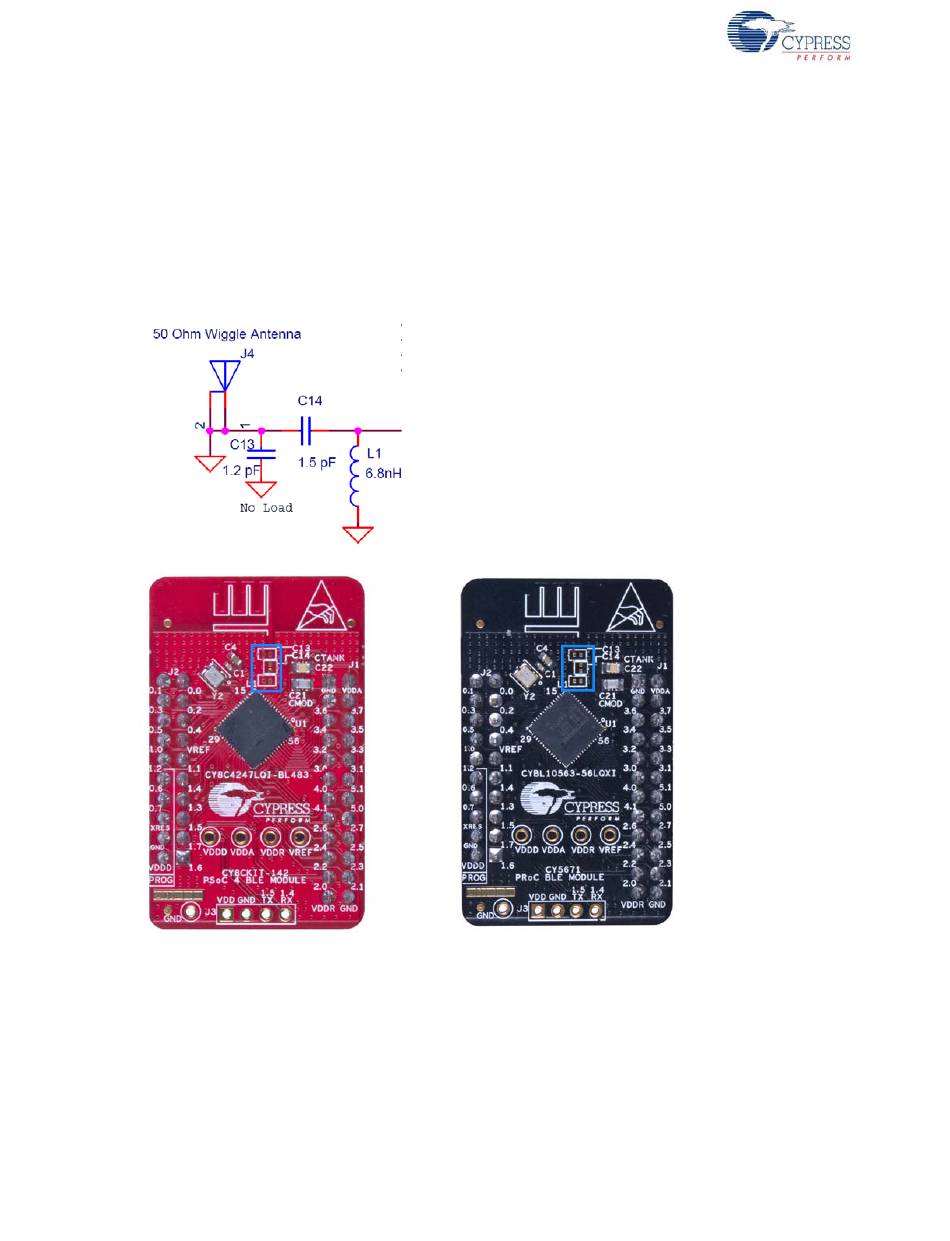

Figure 5-24. Schematics and Board Highlight of Antenna Matching Network and Antenna
106
(Figure 5-24). The matching network has four main tasks:
