The Logger3000 can be connected to both AC power supply and DC power
supply. UPS can be used as a DC backup power source.

7.8 Connecting to the DC Power Supply

The Logger3000 can be connected to 24Vdc external power supply. UPS can be used
as a power source.

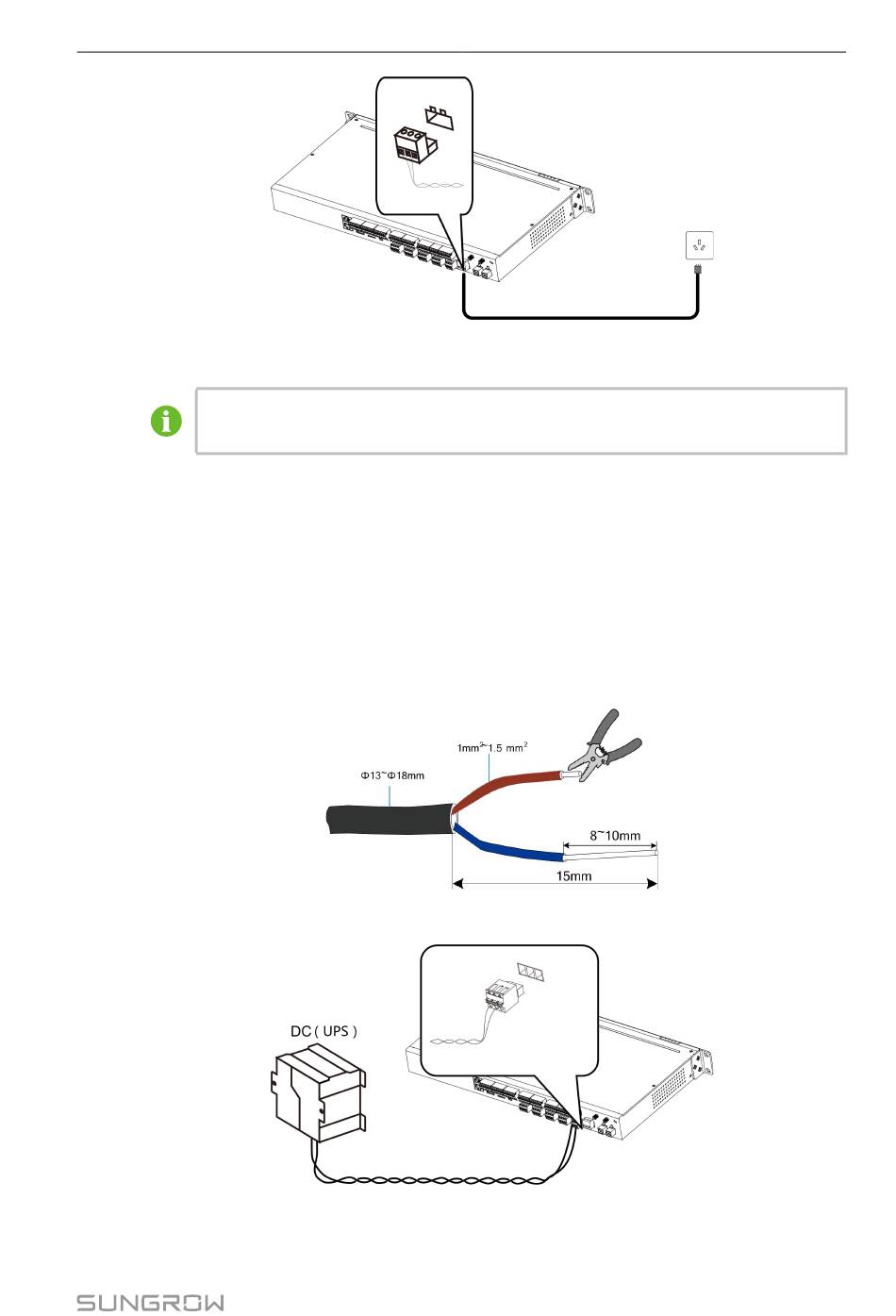

step 1 Lead the external power supply cable to the wiring area of the Logger3000.
step 2 Strip the power supply cable by an appropriate length and crimp it to an euro style
terminal.
step 3 Insert the euro style terminal to the external jack "24V （+、-）" of the Logger3000.
