6 Mechanical Installation
Expansion bolt (in the delivery scope)
•
Tapping screw (in the delivery scope)
•
Screwdriver (beyond the delivery scope)
•
I I n n s s t t a a l l l l M M o o u u n n t t i i n n g g E E a a r r s s a a n n d d B B o o t t t t o o m m S S u u p p p p o o r r t t e e r r s s

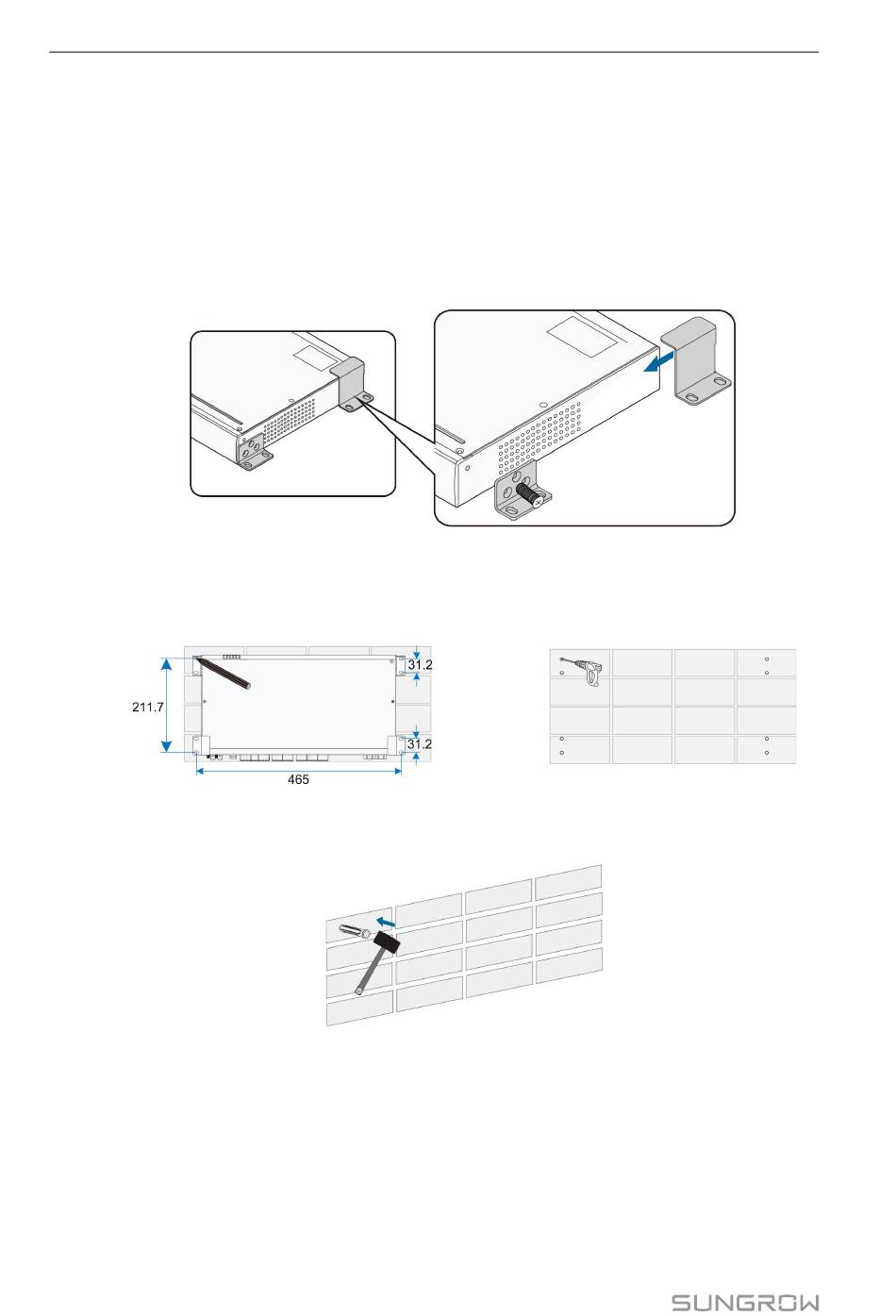

Anchor the mounting ears and bottom supporters to the Logger3000 with supplied
M4x8 cross recessed countersunk head screws. The fastening torque is 1.8-2.4N·m,
and the anchoring method is as follows:
M M o o u u n n t t t t h h e e L L o o g g g g e e r r 3 3 0 0 0 0 0 0 t t o o t t h h e e W W a a l l l l
step 1 Mark positions for drilling holes on the installation wall. Drill the holes with a hammer drill
of φ6mm. (Note: Reserve sufficient clearances around the Logger3000.)
step 2 Insert the expansion sleeve into the drilled hole, and make it completely embedded in
the wall with a rubber hammer.
step 3 Insert the tap screw and mounting ear successively into the expansion sleeve, to fix the
Logger3000 onto the wall.
