Output installation
Although two types of pin configuration are allowed for the input side, the output
installation must be done specifically according to this manual, to prevent UPS
damage. Fig. 10 shows the diagrams of correct and incorrect output configurations.
CAUTION! Only TN-S configuration is allowed for the UPS output
installation.
POWERLINE RT PLUS output socket configuration is shown in Fig. 11.
Sockets IEC 320 C13 (10 A)
Fig. 11: POWERLINE RT UPS output socket configuration.
TOWER VERSION UPS INSTALLATION
To install the UPS as a free-standing unit (tower) follow these steps:
1. Switch off the UPS and disconnect the power cord from the mains socket.
2. Place the UPS in vertical position.
3. Use the supplied set of bolts to fix the assembled feet kit to the UPS (Fig. 12).
25
www.ever.eu
EVER POWERLINE RT PLUS UPS Operating Manual
CORRECT
WRONG

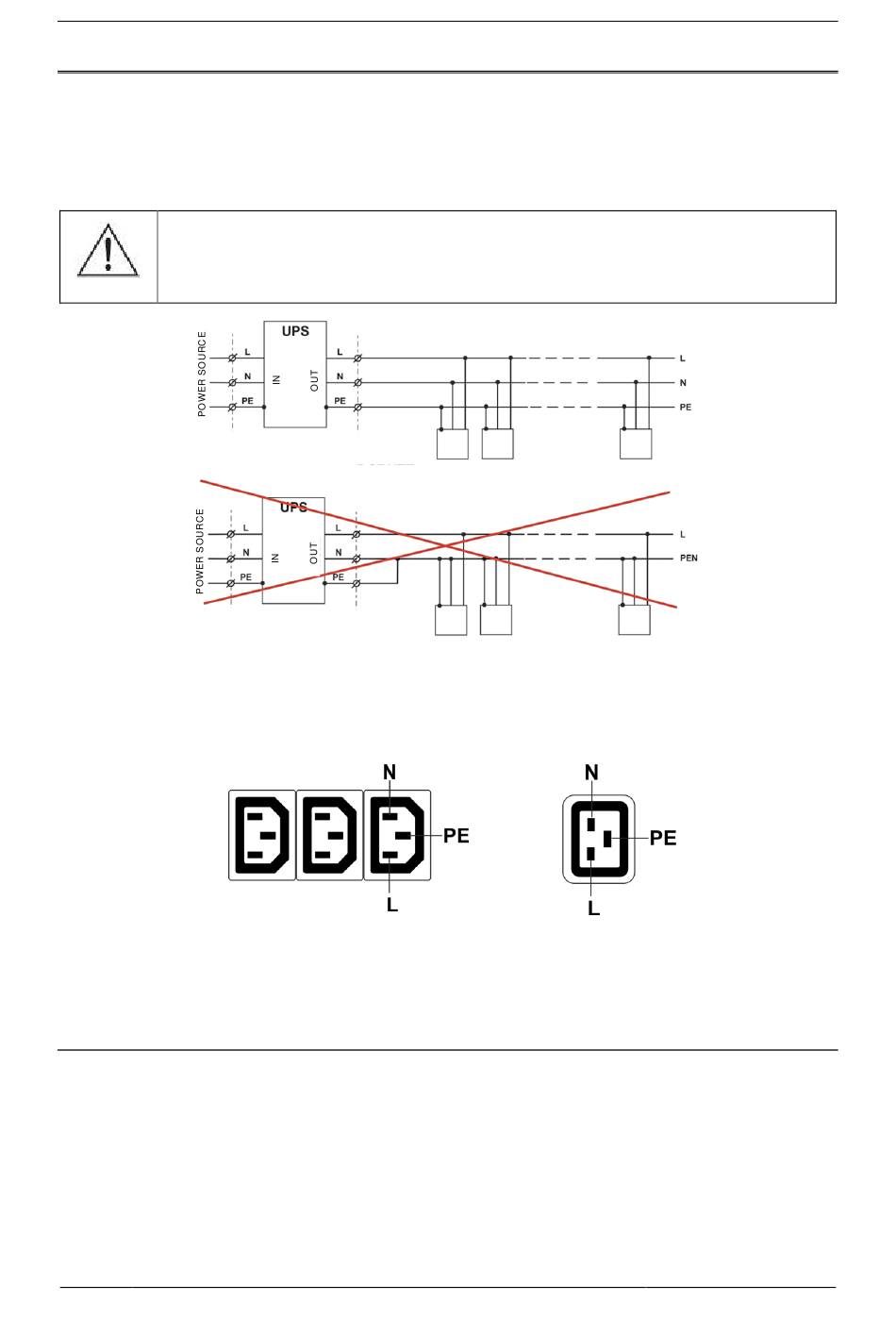

Fig. 10: POWERLINE RT PLUS output installation
Technical Support, phone: +48 61 6500 400
LOAD
LOAD
Socket IEC 320 C19 (16 A)
