5. Make sure the dimensions and type of replacement batteries satisfy the
technical parameters (are identical as the parameters of the old batteries).
Replace the old batteries with new ones exercising special caution.
6. Slide in the battery chamber with the batteries into the UPS (Fig. 26).
7. Connect the battery chamber's terminal to the UPS battery terminal (Fig. 27).
2019-11-25 11:43
EVER POWERLINE RT PLUS UPS Operating Manual

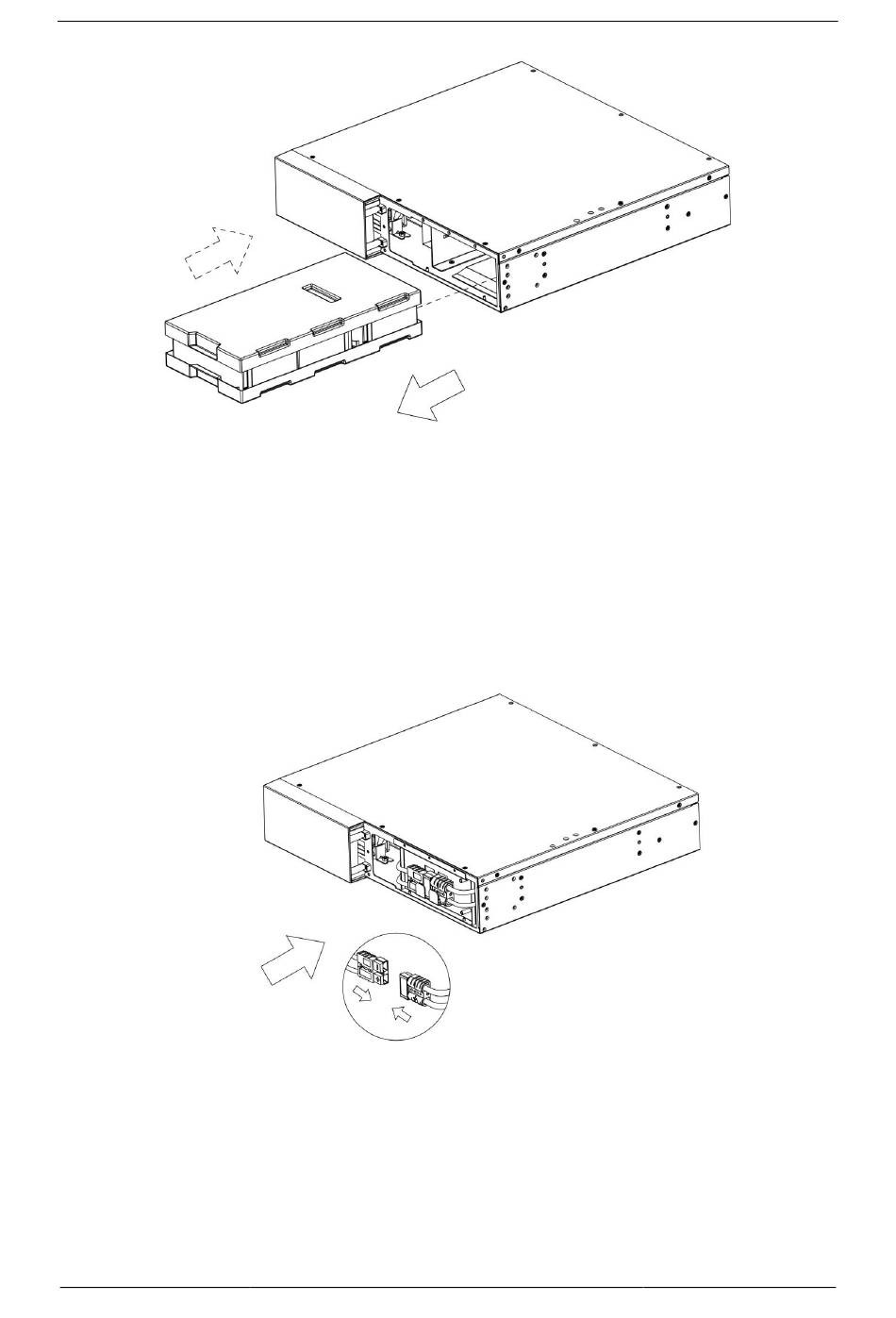

Fig. 26: Removing and installing the battery chamber
Fig. 27: Connecting the battery terminal
Technical Support, phone: +48 61 6500 400
38
