4. Use the supplied plugs to cover the unused mounting openings (Fig. 13).

Installation of the UPS with a battery module

Up to 10 battery modules may be connected to the UPS. To install the UPS with a
battery module as a free-standing unit follow these steps:
1. Switch off the UPS and disconnect the power cord from the mains socket.
2. Place the UPS and the battery module in vertical position.
3. Use the supplied set of bolts to fix the assembled feet kit to the UPS and the
battery module (Fig. 14).
2019-11-25 11:43
EVER POWERLINE RT PLUS UPS Operating Manual

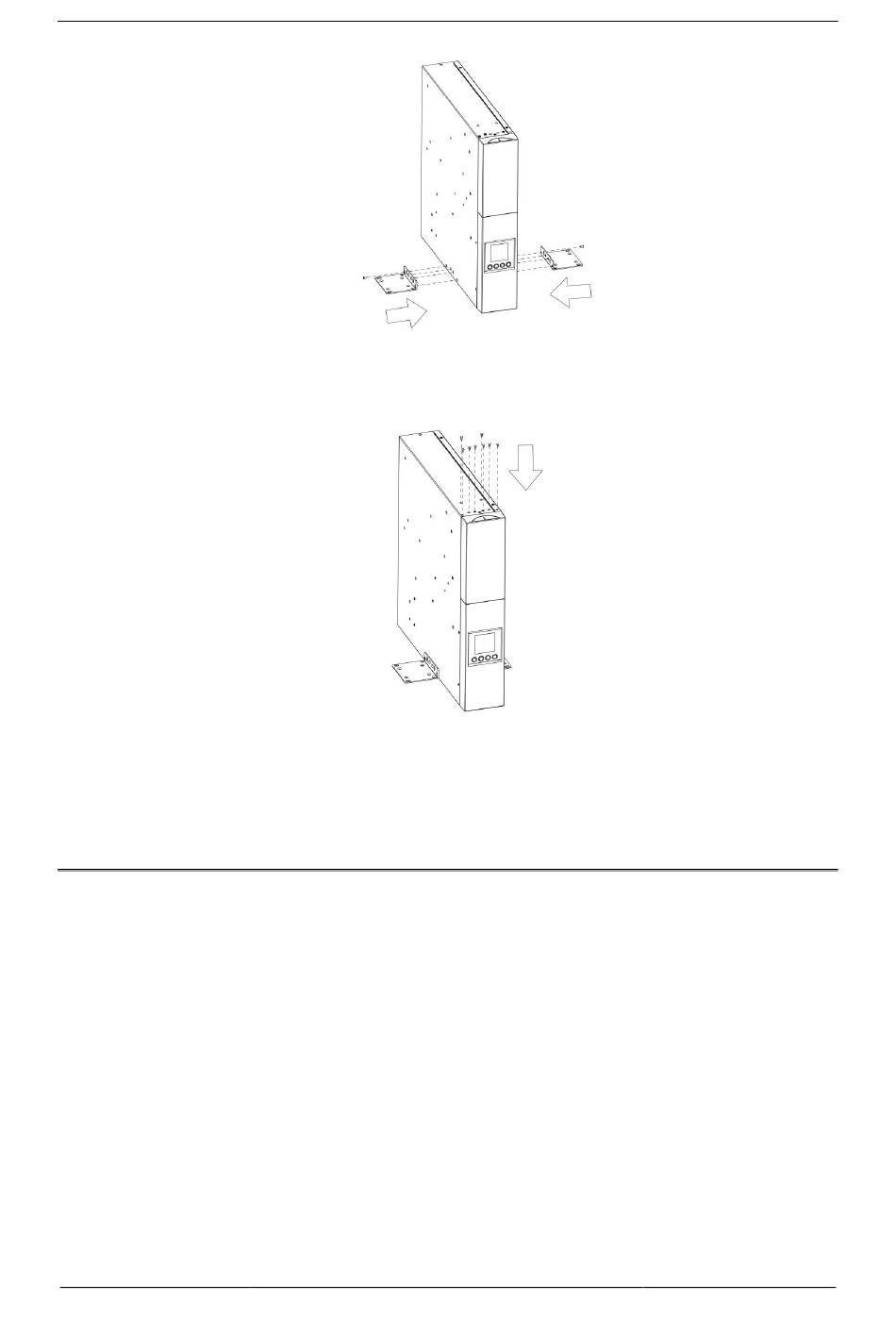

Fig. 12: Attaching the feet kit to the UPS
Fig. 13. Installation of plugs
