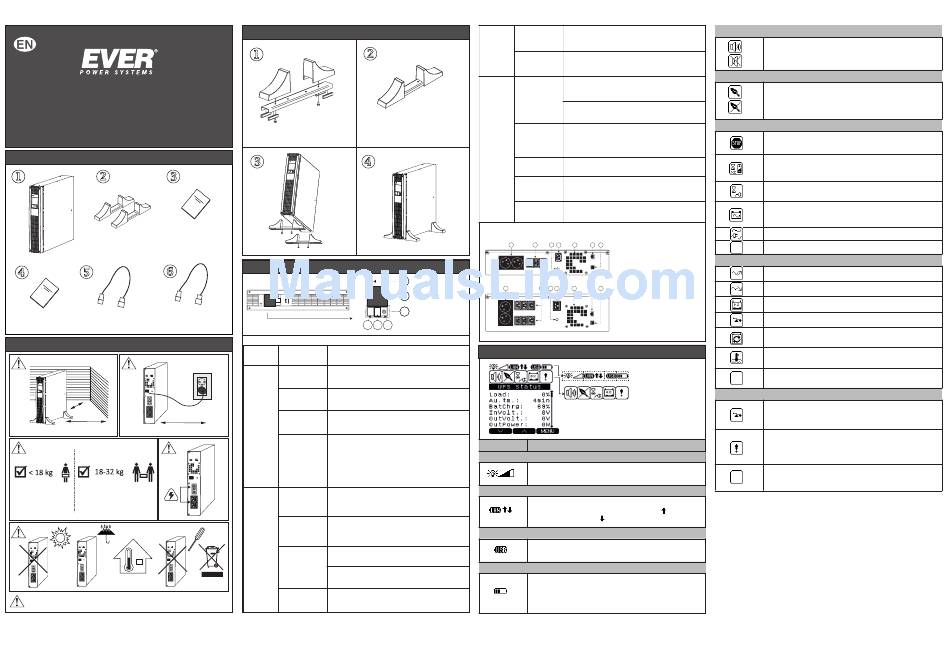

Ever Power Systems SINLINE RT 1000 Quick Reference Manual

UPS SINLINE RT
QUICK REFERENCE GUIDE
Note: to obtain detailed information, please read the full instruction manual, which can be
downloaded from our website www.ever.eu.
1.
IN THE PACKAGING
Quick reference guide
2 sets of Tower supports
for installing the unit vertically
UPS unit
Warranty card Power cord USB cable
CEE 7/7 - IEC 320 C13 (10 A)
lub CEE 7/7 - IEC 320 C19 (16 A)*
*Depending on the UPS unit
2.
ADDITIONAL REMARKS
>10cm
>10cm
max. 1,8m
SINLINE RT 1000 SINLINE RT 1600
SINLINE RT 1200 SINLINE RT 2000
SINLINE RT 3000
+5 ÷ +35 °C
SINLINE RT battery back-ups are not designed to power medical
equipment, in particular life support machines!
Type 01
3.
TOWER VERSION UPS INSTALLATION
x2
4.
ELEMENTS OF THE UPS
1
a. Front panel:
2 1. Signaling LED
2. LCD display
3. Multi-function buttons:
3
A, B, C
A
C B
Functions of the control panel buttons
Button Function Description
Press and keep the button depressed for over 1 second
Switching on
to switch the unit on (power supply is switched on).
When the UPS is on and the LCD display shows one of the information
screens (screensavers), press and keep the button depressed for over
Switching off
1 second to switch the unit off (power supply is switched off).
A
When an information screen is displayed, press the button shortly
Access
to enter the main menu.
to main menu
When in MENU screen, press the button briefly to select or
change the highlighted option (depending on what option is
selected, the button's action is indicated by an icon shown on the
Confirming /
LCD display, next to the button).
canceling the
current setting
When the value edit mode is selected, press the button briefly
to change the active object (edited values or command keys).
When in command selection mode, keep the button depressed
to execute the operation assigned to the object.
When the UPS is not on logically (not operating in back-up or
normal mode), and the LCD display shows one of the information
Switching the unit
screens, press and keep the button depressed for over 1 second
on logically
to switch the unit on logically (power supply to receiver's
connected to the UPS's output is switched on).
When the UPS is on logically (operating in back-up or normal
Switching the unit
mode), and the LCD display shows one of the information
off logically
screens, press and keep the button depressed for over 1 second
to switch the unit off logically (power supply to receiver's
connected to the UPS's output is switched off).
B
Press the button shortly to scroll up between information screens.
Scrolling up
Press the button shortly to navigate up the menu options.
Navigating to the
Press and keep the button depressed for over 1
beginning of the
second to navigate to the beginning of the submenu.
submenu
Canceling
Press the button to cancel the currently displayed message.
messages
Increasing the
Press the button to increase the value of the edited parameter.
value of parameters
Press the button shortly to scroll down between
information screens.
Scrolling down
x2 Press the button shortly to navigate down the menu options.
Press and keep the button depressed for over 1 second
Switching the
to switch the UPS unit's sound alarm on/off.
C sound alarm on/off
The function is only accessible from information screens.
Navigating to the
Press and keep the button depressed for over 1 second
end of the submenu to navigate to the end of the submenu.
Decreasing
Press the button shortly to decrease the value of the
the value
edited parameter.
of parameters
Confirming Press the button shortly to confirm the currently displayed
message.
messages
b. Rear panel:
1 2 3 4 5 6 7
1. Output sockets PN-E-93201 (10 A)
2. Output sockets IEC 320 C13 (10 A)
3. Automatic fuse
4. Mains input:
SINLINE RT 1000 | 1200 IEC 320 C14 (10 A)
SINLINE RT 1000 – 1200
1 2 3 4 5 6 7
IEC 320 C20 (16 A)
SINLINE RT 1600 – 3000
5. Fan
6. Ethernet communication port
7. USB communication port
SINLINE RT 1600 | 2000 | 3000
5.
DESCRIPTION OF LCD DISPLAY ICONS
1 2 3 4
5 6 7 8 9
Symbol Description
1 – UPS output load indicator
Load level signaling. Further segments of the icon light up while the load
increases.
2 – LAN connection indicator
Signal confirming that the UPS is connected to LAN and visualization of the
direction of transferred data. Packets sent to the network (icon
received from the network (icon )
3 - USB connection indicator
The icon is displayed if the UPS is connected with the PC through USB.
4 - Battery charge level indicator
Battery charge level indicator. Further segments of the icon light up
as the battery charge level increases.
5 - MUTE function indicator
Icon indicating the activation / deactivation of sound signal when the UPS
is in back-up (battery) mode. The UPS alarm states is not muted.
6 – GREEN function indicator
Icon activating / deactivating the function of saving energy stored in the batteries.
When the UPS is in back-up (battery) mode and there are no receivers connected
or power consumption is below the threshold value of 30 W, the UPS will
automatically switch off after 15 minutes.
7 – UPS operation indicator
The icon is displayed if one of the following operation modes is activated:
EMERGENCY, STOP or READY.
The UPS is on logically, the mains parameters are correct. After the UPS switches
from the STANDBY mode, the unit waits until the battery is charged to a minimal,
required level declared in % (CONFIGURATION; UPS; STB - ChargeMin).
The UPS operates in STANDBY mode. The mains voltage fails to satisfy
the correctness criteria, the UPS is on logically.
The UPS operates in back-up (battery) mode - there is no mains power supply or
threshold frequency value or effective value of supply voltage are exceeded.
The UPS operates in mains (normal) mode.
The UPS operates in INIT (initialization) mode.
8 – Messages
AVR system activity signalization (increasing value).
AVR system activity signalization (decreasing value).
Low battery charge level.
The icon is displayed in case of an overload of the UPS.
Battery is used up and must be replaced. In order to replace the battery
and to deactivate the icon, please contact EVER Support Centre.
The icon is displayed if the permissible temperature of the battery or inverter
is exceeded.
There are no messages or they are not shown in graphical form
(but are available from the Messages screen).
9 – Alarms
If the icon is activated, the UPS unit's output is overloaded or shorted, or
there is reversed voltage. The detailed description is available from the Alarms
screen.
The icon is displayed in case of: internal error, EPO triggering or if the permissible
temperature of the battery or inverter is exceeded. The detailed description is
available from the Alarms screen. If there is an internal error, please contact the
service department.
No alarms.
), packets
v3 20150917
