DESCRIPTION OF LCD DISPLAY ICONS

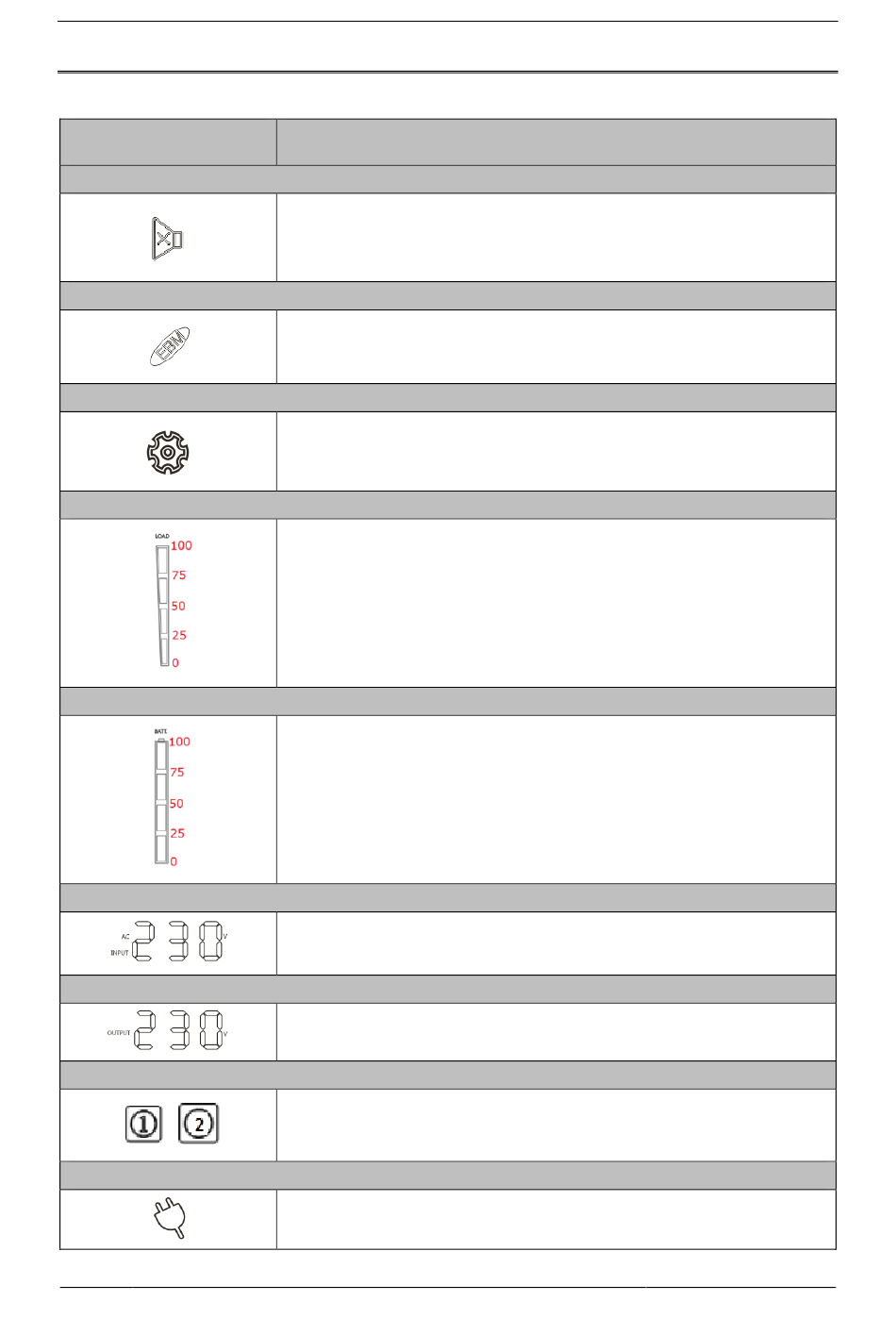

Table 3. Description of LCD display icons
Symbol
1 - MUTE function indicator
2 – External battery modules indicator
3 – Menu settings indicator
4 – UPS output load indicator
5 – Battery charge level indicator
6 – Input voltage indicator
7 – Output voltage indicator
8 – Active output sockets indicator
9 – UPS operation indicator
17
www.ever.eu
EVER POWERLINE RT PLUS UPS Operating Manual
The icon indicates the activation / deactivation of sound signal when the UPS is
in the backup (battery) or bypass mode. The UPS alarm states is not muted.
The icon is displayed if external battery modules are connected to the UPS.
The icon is displayed when the unit's settings menu is accessed.
Load level signaling. The icon's further segments light up while the load
increases
Battery charge level indicator.
The icon's further segments light up while the load increases
Input (mains) voltage value.
Output voltage value.
1 – signalization of activated / deactivated controlled sockets
1 – signalization of activated / deactivated uncontrolled sockets
Signalization of operation in the mains (normal) mode.
Technical Support, phone: +48 61 6500 400
Description
