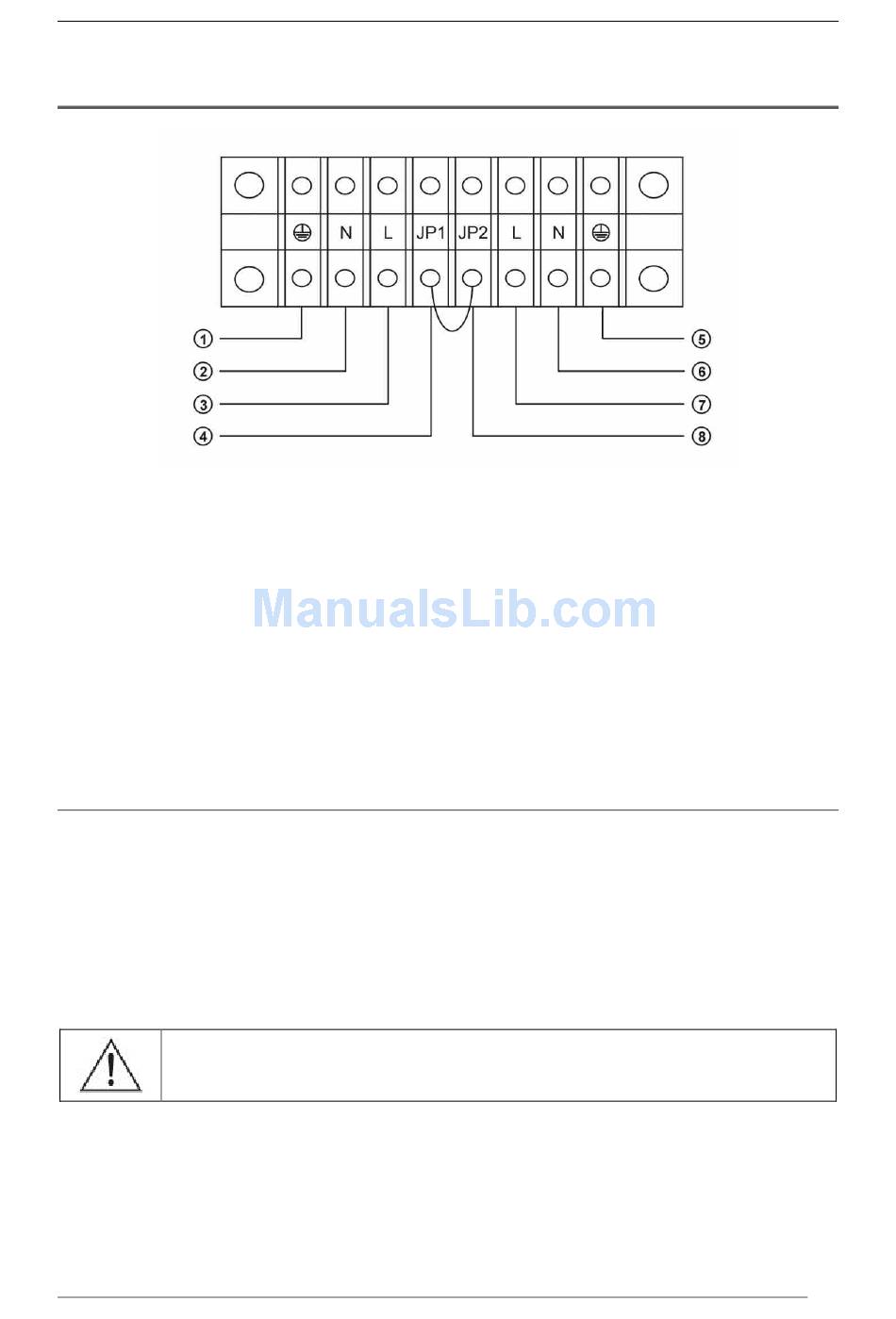

Input / Output Installation

1 – PE cord of the power supply line
2 – N cord of the power supply line
3 – L cord of the power supply line
4 – Jumper (parallel operation option)
5 – PE cord of the output line
6 – N cord of the output line
7 – L cord of the output line
8 – Jumper (parallel operation option)

FIRST START

When started for the first time the battery back-up may require to be left connected to
the mains in order to allow the internal accumulators to charge. In order to do this,
connect the input power supply line. UPS will charge the accumulators regardless of
the operation mode (ONLINE – UPS on, inverter working, or OFFLINE – UPS off,
inverter not working, output powered by the bypass system).
WARNING! Back-up's batteries reach their full capacity after
approximately a month of mains operating mode.
