Table 2. Sound signals for specific states of the UPS unit
Event
Operation modes: MAINS,
ECO, STANDBY, INVERTER
BACKUP (battery) mode
BYPASS mode
EMERGENCY Mode
Warning (overload,
overheating, EPO input
triggered)

LCD DISPLAY ICONS

The front panel of the UPS unit presents useful information on the current functional
state of the UPS unit: the operation mode, the input and output voltage values, the
load level, the battery charge level, alarms and messages.
Figure 7 shows the display panel. Table 3 presents the description of information
icons that may be shown on the LCD display depending on the UPS unit's operation
mode.
2019-11-25 11:43
EVER POWERLINE RT PLUS UPS Operating Manual
No sound signal
Sound signal every 10 s. Can be activated / deactivated through menu 009 or
through PowerSoft. The sound signal is activated every second as the battery
keeps discharging.
Sound signal every 20 s. Can be activated / deactivated through menu 009 or
through PowerSoft.
Continuous sound signal
Sound signal every second. Sound signals are active if overload, overheating
or EPO triggered are detected, despite previous deactivation.

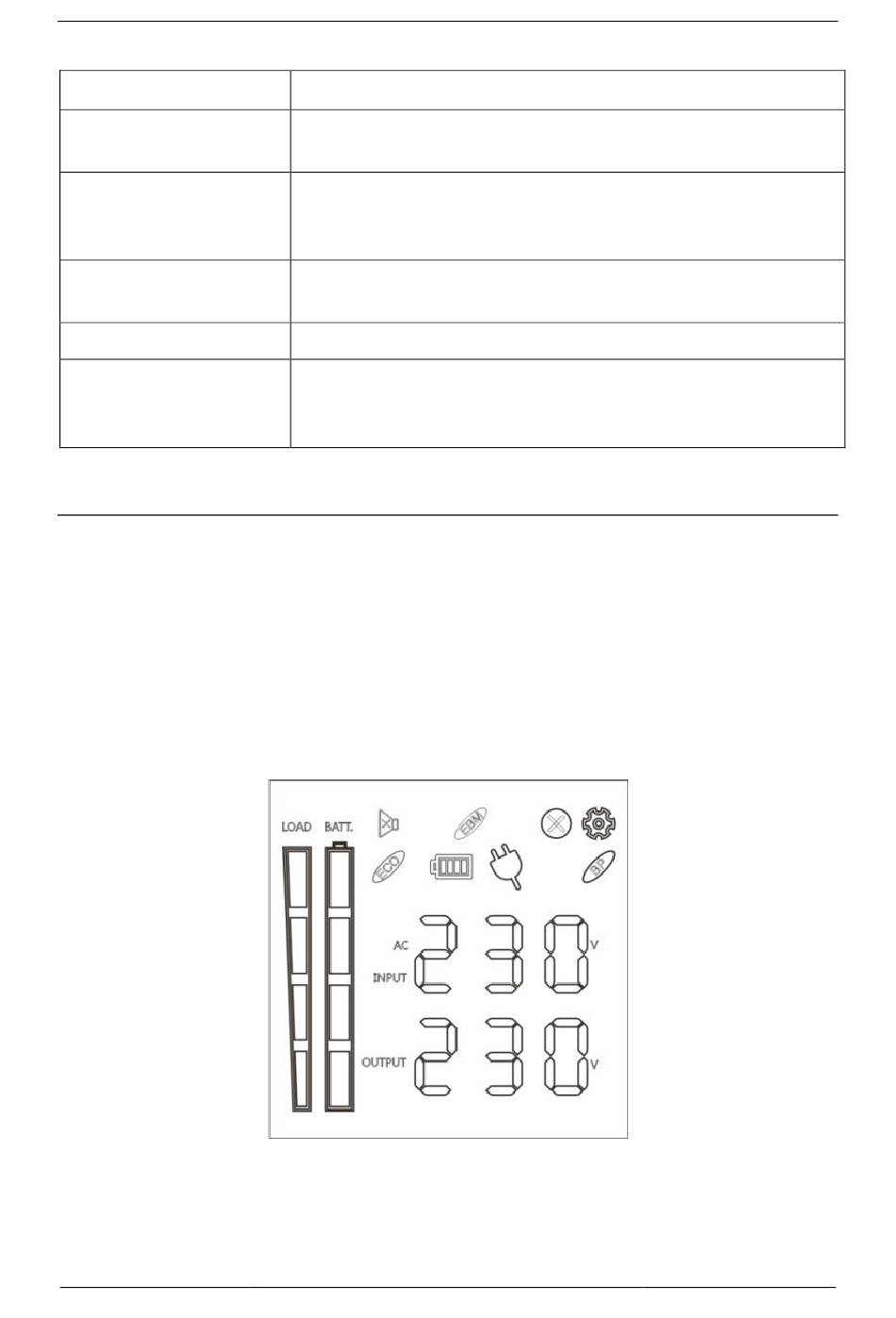

Fig. 7: LCD display screen with information icons
Technical Support, phone: +48 61 6500 400
Sound signal
www.ever.eu
