3.1 Assembly Group Wheels

3.1.5 12"-wheels

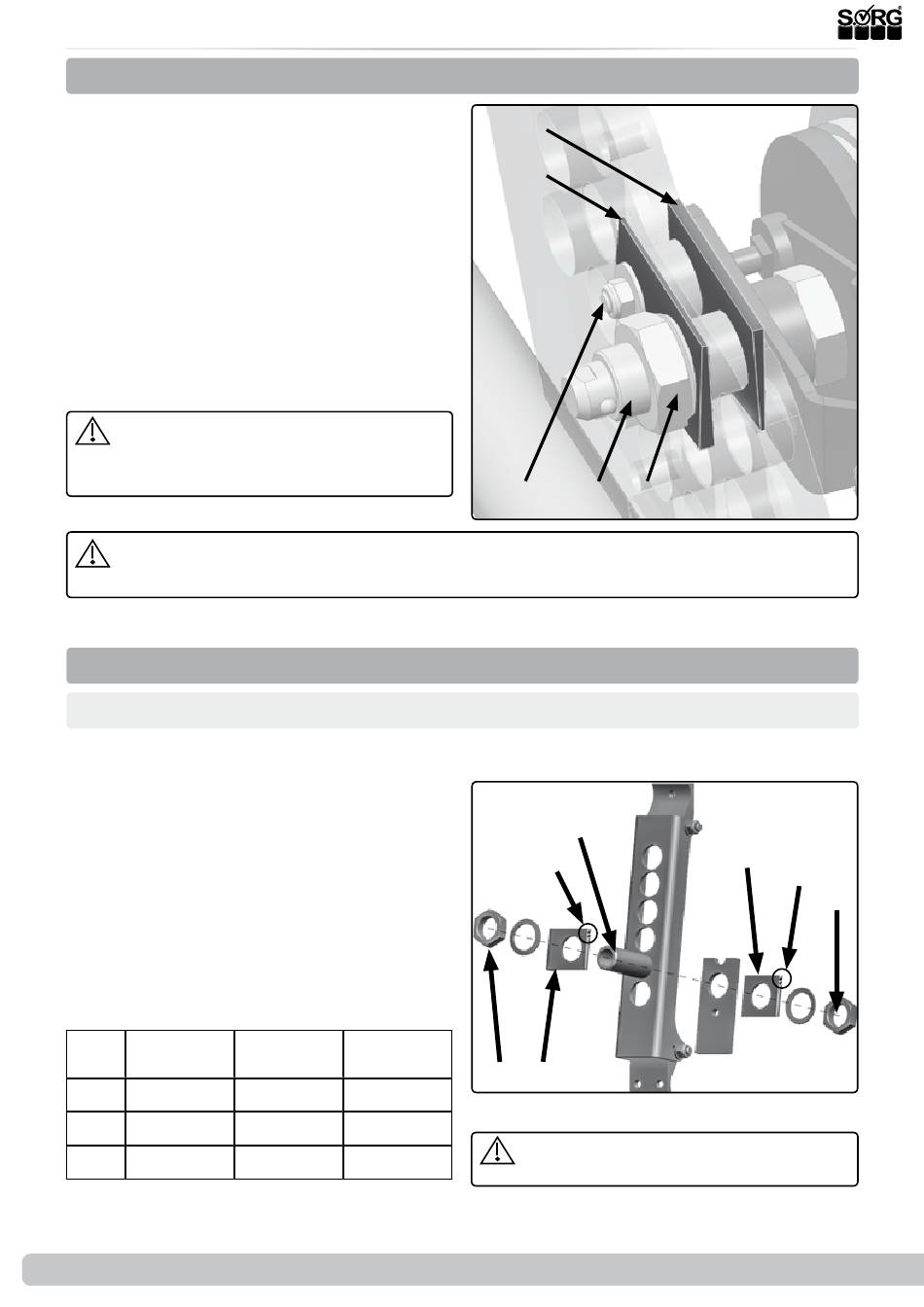

Changing to 12" wheels subsequently:
• (2) Remove the big wheels including the
brake pad, fitting and drum brake arm,
• mount the adapter (A) for the 12" wheels
with the screws (B) in the bottom hole
row (C)
• mount the screw (D) with the delivered
discs in the proper hole.
• Mount the quick-release axle fitting (E)
with the brake pad and the drum brake
arm (F) analogously as described above
and
• put the 12" wheels on.
Be sure that the drum brake functions
properly and if necessary establish its func-
tionality (see drum brake).
Whe using a knee lever brake, this must be displaced (see knee lever brake). Correct the
position and be sure that if functions properly.
To change the camber to 0°, please proceed as described.

3.1.6 Track compensation rear wheels

Version till 02/2017
If you want to change the camber and / or the seat inclination, you will need to mount corres-
ponding wedge wheels for the track compensation to avoid the so-called eraser effect.
• For replacing / inserting the wedges:
• (2) remove the screw connection (A) of
the plug-in axle fitting (D) (also on the
inside),
• insert the required wedge disc (s) (B),
• the mounting notches (C) must point
forward in the direction of travel,
• put all the other discs back in
• and tighten the screw connection (A) of
the plug-in axle fitting (D) (also on the
inside) again (torque 35Nm).
Refer to the following table::
Cam- without seat
ber tilting
2° disk 0°
4°-8° disk 0°
11° disk 0°
**if necessary assemble 2 disc sets (2x inner disc moun-
ted inside, 1x outer disc + 1x inner disc mounted out-
side)
12 of 40
Normal seat strong seat
tilting (< 5°)* tilting
(> 5°)*
disk 0° wedge disc
0,5°
wedge disc wedge disc1°
0,5°
wedge disc 1° wedge disc
1°**
Service Record Loop
(1)
(E)
(D)
(C) (B) (A)
(2)
(D)
(C)
(A) (B)
Then check the functionality of the knee
lever brake and restore it if necessary.
RS
SORG
(B)
(C)
(A)
Picture shows the perforated
plate on the right as seen in
the direction of travel
