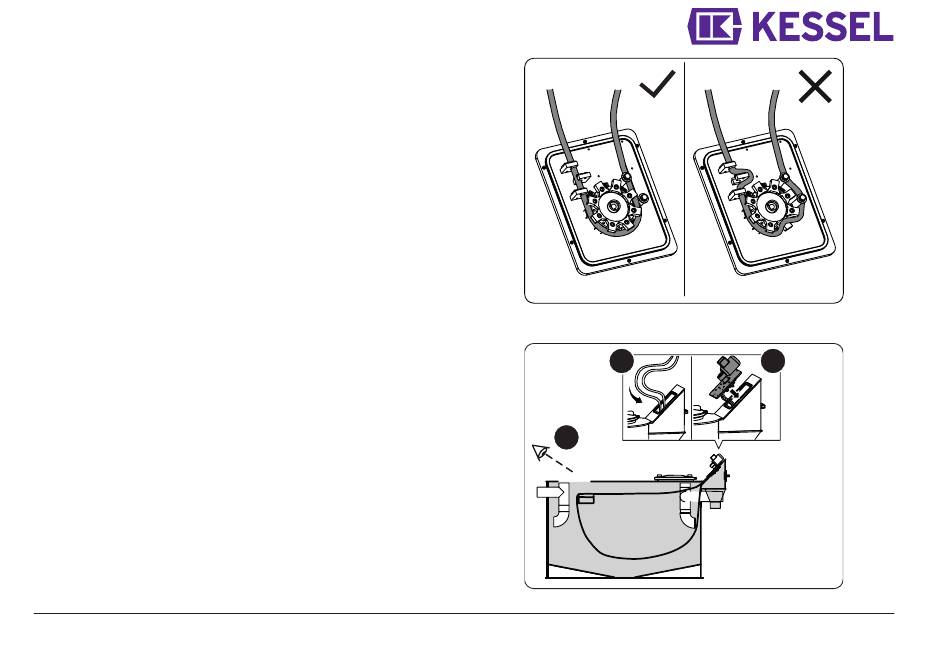

▶ Fitting the skimmer hose:
▶ Thread in the skimmer hose. Put out the loose end and lay it stra-
ight, without twisting. Ensure that the skimmer hose is positioned
precisely to the guides and scrapers.
▶ Tighten the screws on the guides.
▶ Feed the skimmer hose into the separator tank through the opening
in the skimmer unit. ➊
▶ Fasten the skimmer unit again. ➋
▶ Lift the skimmer hose off the tank floor with the hooked rod and
hang it into the guide attached underneath the service access
cover. ➌
▶ Re-fit the skimmer unit in reverse order. When tightening the screw connec-
tions, observe the tightening torque (4.5±0.5 Nm).
