DC power connections
NOTE:
Use the following instructions for all S5200F-ON Series switches except for
the S5212F-ON switch. To connect DC power to the S5212F-ON switch, see
S5212F-ON only DC power
Each DC powered system comes with a set containing a prewired (3-inch 8AWG) power
supply connector and a four-screw wiring block. One set is provided for each DC PSU.

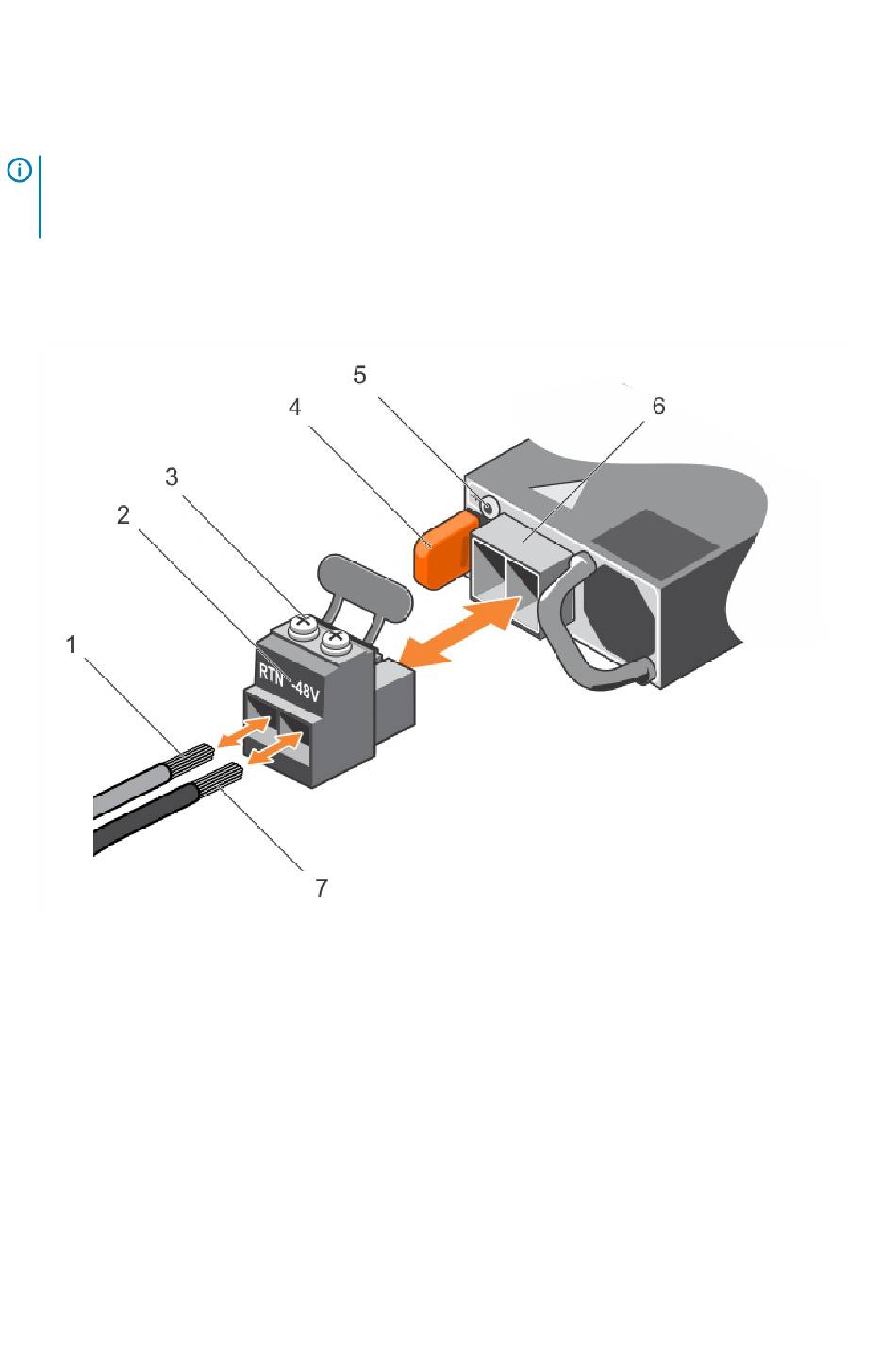

Figure 19. DC Power Connector and Wiring Block
1
DC wire RTN
3
Captive screws (2)
5
PSU status LED
7
DC wire –48V
connections.
2
4
6
S5200F-ON Series switch Installation
DC power connector
Orange tab
DC power socket
33
