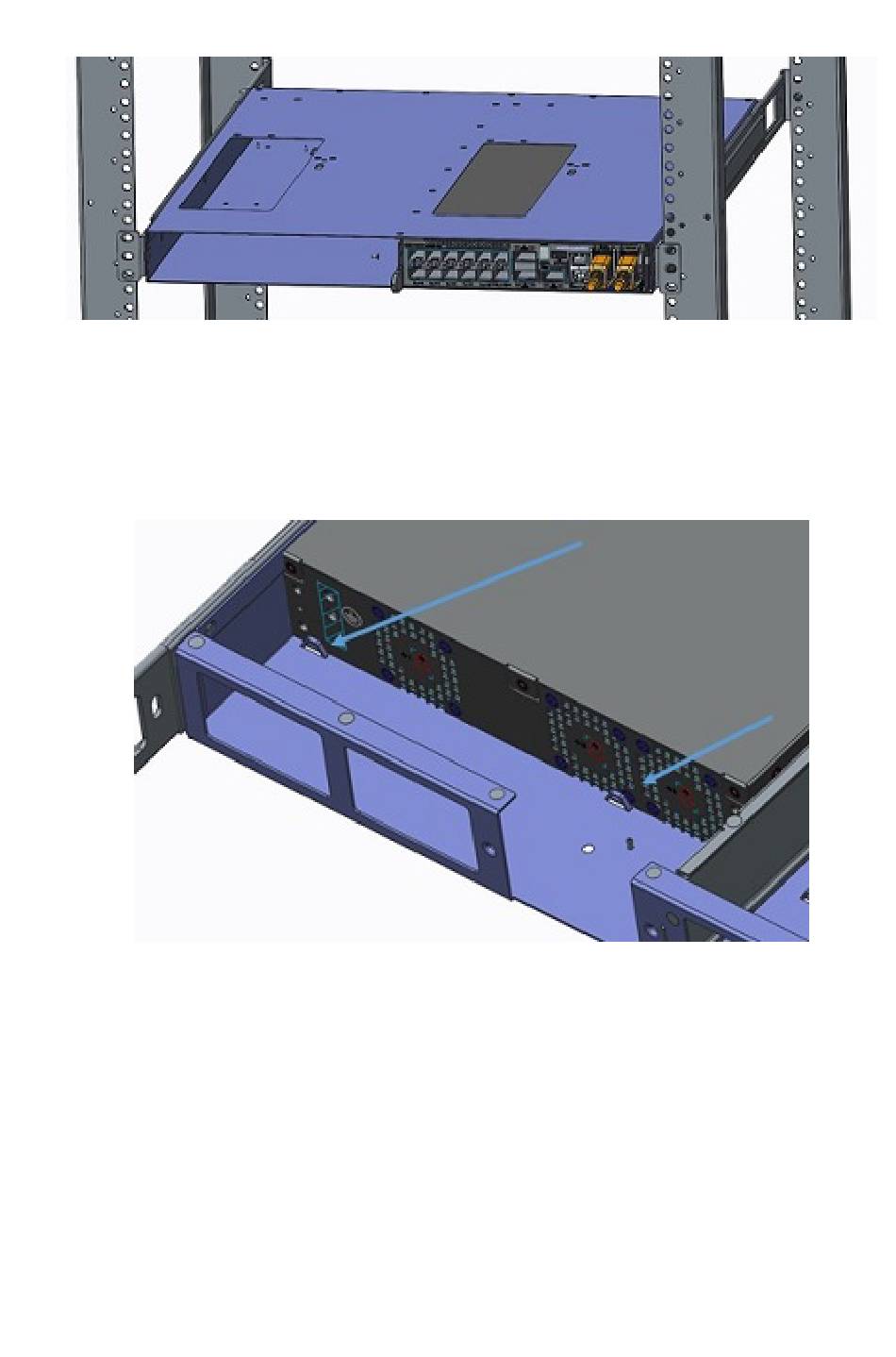

Figure 7. Install one-half U switch
The switch is fully inserted when it presses the stop feature on the dual tray. The front
switch latch snaps the switch into place.
Figure 8. Dual-tray stop feature
2
Insert the second switch in the open dual-tray slot if you are installing two switches.
18
S5200F-ON Series switch Installation
