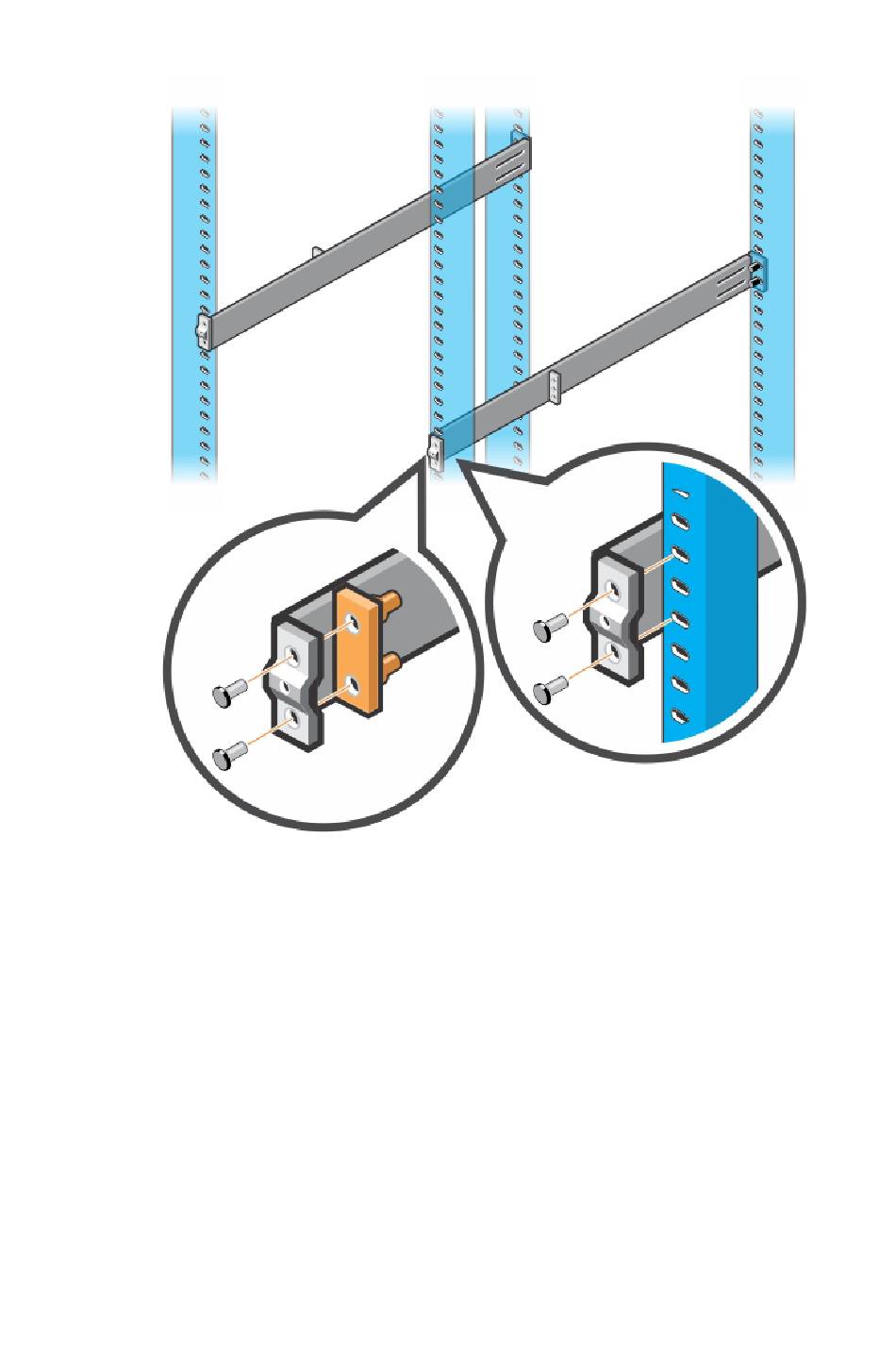

Figure 15. Four-post threaded installation
2
For each rail, attach the front and back flanges to the post flanges with two user-
supplied screws at each end.
S5200F-ON Series switch installation
For the 1U two-post configurations for the S5248F-ON, S5232F-ON, and S5224F-ON
switches, slide the switch into the rails in the same manner as the four-post configurations.
For the S5296F-ON switch installation, see
S5212F-ON switch installation, see
26
S5200F-ON Series switch Installation
S5296F-ON four-post rack
One-half U switch
assembly. For the
installation.
