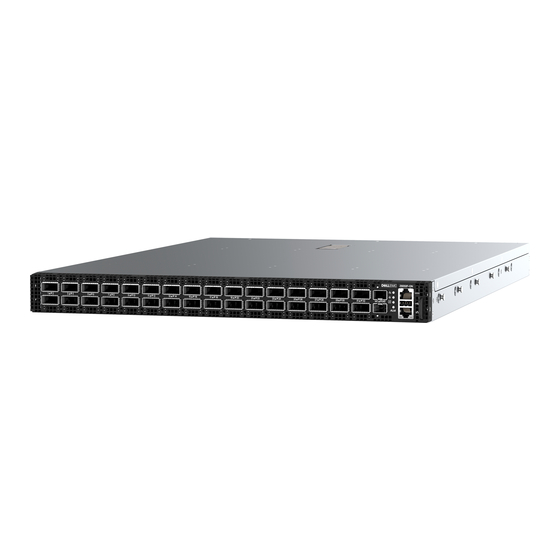

Dell EMC PowerSwitch Z9332F-ON Setup Manual
  1. Manuals
  2. Brands
  3. Dell EMC Manuals
  4. Switch
  5. PowerSwitch Z9332F-ON
  6. Setup manual

Dell EMC PowerSwitch Z9332F-ON Setup Manual

Hide thumbs Also See for PowerSwitch Z9332F-ON:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Installation Manual
Dell EMC PowerSwitch Z9332F-ON
Setup Guide
October 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerSwitch Z9332F-ON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dell EMC PowerSwitch Z9332F-ON

Summary of Contents for Dell EMC PowerSwitch Z9332F-ON

  • Page 1 Dell EMC PowerSwitch Z9332F-ON Setup Guide October 2019...
  • Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.

  • Page 3: Table Of Contents

    Contents 1 About this guide........................... 4 Related documents................................4 Information symbols................................4 2 Site preparations......................... 6 Site selection..................................6 Cabinet placement.................................6 Rack mount.................................... 6 Switch ground..................................7 Fans and airflow..................................7 Power...................................... 7 Storing components................................7 3 Z9332F-ON Installation.........................8 Unpack....................................8 Ground cable..................................

  • Page 4: About This Guide

    To access product documentation and resources that might be helpful to install, configure, and troubleshoot the specific Dell EMC PowerSwitch, see the Dell EMC Networking OS10 Info Hub. For all other resources, see Dell EMC support: www.dell.com/support. Information symbols This book uses the following information symbols: NOTE: The Note icon signals important operational information.
  • Page 5 NOTE: The Warning icon signals information about hardware handling that could result in injury. NOTE: The ESD Warning icon requires that you take electrostatic precautions when handling the device. About this guide...

  • Page 6: Site Preparations

    Site preparations The Z9332F-ON switch is suitable for installation as part of a common bond network (CBN). You can install the switch in: • Network telecommunication facilities • Data centers • Other locations where the National Electric Code (NEC) applies For more information about the Z9332F-ON switch specifications, see Specifications.

  • Page 7: Switch Ground

    Switch ground Dell EMC recommends grounding your switch. Use the Z9332F-ON switch in a CBN. Fans and airflow Fan installation is completed as part of the Factory Install based on the stock keeping unit (SKU) type. The Z9332F-ON switch supports AC airflow from the I/O to the PSU or from the PSU to the I/O.

  • Page 8: Z9332F-On Installation

    • Seven hot-swappable fan units • Two country- and region-specific AC power cables • Dell EMC PowerSwitch Z9332F-ON Set-up Guide • Safety and Regulatory Information • Warranty and Support Information 1. Place the container on a clean, flat surface and cut all straps securing the container.

  • Page 9: Rack Or Cabinet Installation

    NOTE: Coat the one-hole lug with an anti-oxidant compound before crimping. Also, bring any unplated mating surfaces to a shiny finish and coat with an anti-oxidant before mating. Plated mating surfaces must be clean and free from contamination. NOTE: The rack installation ears are not suitable for grounding. To connect the ground cable to the switch: 1.
  • Page 10 2. Loosen the thumbscrew at the front of the rail assembly. 3. Pull the inner rail out of the rail assembly. 4. Slide the white-plastic lever towards the thumbscrew to separate the inner and outer rails. The lever is marked with a directional arrow. 5.
  • Page 11 Slide the rail back until it locks into place. 6. Repeat with the second rail. 7. Align the two outer-rail rear tabs with two rear rackmount slots. 8. Pull the outer rail forward until the rear tabs snap into the rack. 9.

  • Page 12: Optics Installation

    Reinspect your switch before power up. Verify the following: • The equipment is properly secured to the rack. Dell EMC recommends properly grounding the switch. • The ambient temperature around the unit, which may be higher than the room temperature, is within the limits specified for the Z9332F-ON switch, see Specifications.

  • Page 13: After Switch Installation

    After switch installation After you have securely installed and powered on the Z9332F-ON switch: • If you are using Dell EMC software, see switch documentation at www.dell.com/support. • If you are using third-party software, see ONIE documentation at www.onie.org. Z9332F-ON Installation...

  • Page 14: Specifications

    Maximum operational altitude 10,000 feet (3,048 meters) Maximum non-operational altitude 39,370 feet (12,000 meters) Shock Dell EMC Spec SV0115 NOTE: AC power requires HighLine 200 VAC to 240 VAC support. You cannot use 120 VAC. Table 3. AC power requirements Parameter...
  • Page 15 Parameter Specifications Maximum power consumption 1244.86 W maximum Typical power consumption 1004 W typical—Measured @ 45°C, 16 ports with AOC and 16 ports with SR8 optics running snake traffic Specifications...

  • Page 16: Support

    To receive more technical support, click Contact Us. On the Contact Information web page, click Technical Support. To access product documentation and resources that might be helpful to install, configure, and troubleshoot the specific Dell EMC Networking switch, see the Dell EMC Networking OS10 Info Hub.
