S5212F-On Only Dc Power Connections - Dell EMC S5200F-ON Series Setup Manual

NOTE: To remove the power connector from a DC PSU, squeeze the levers on both
sides of the connector. Doing so disengages the power connector's clamps. While
continuing to squeeze, pull the power connector from the DC PSU socket.

S5212F-ON only DC power connections

NOTE: Use the following instructions for the S5212F-ON switch only. For all other
S5200F-ON Series switches, see
Each DC PSU comes with a connector cable. One cable is provided for each DC PSU.

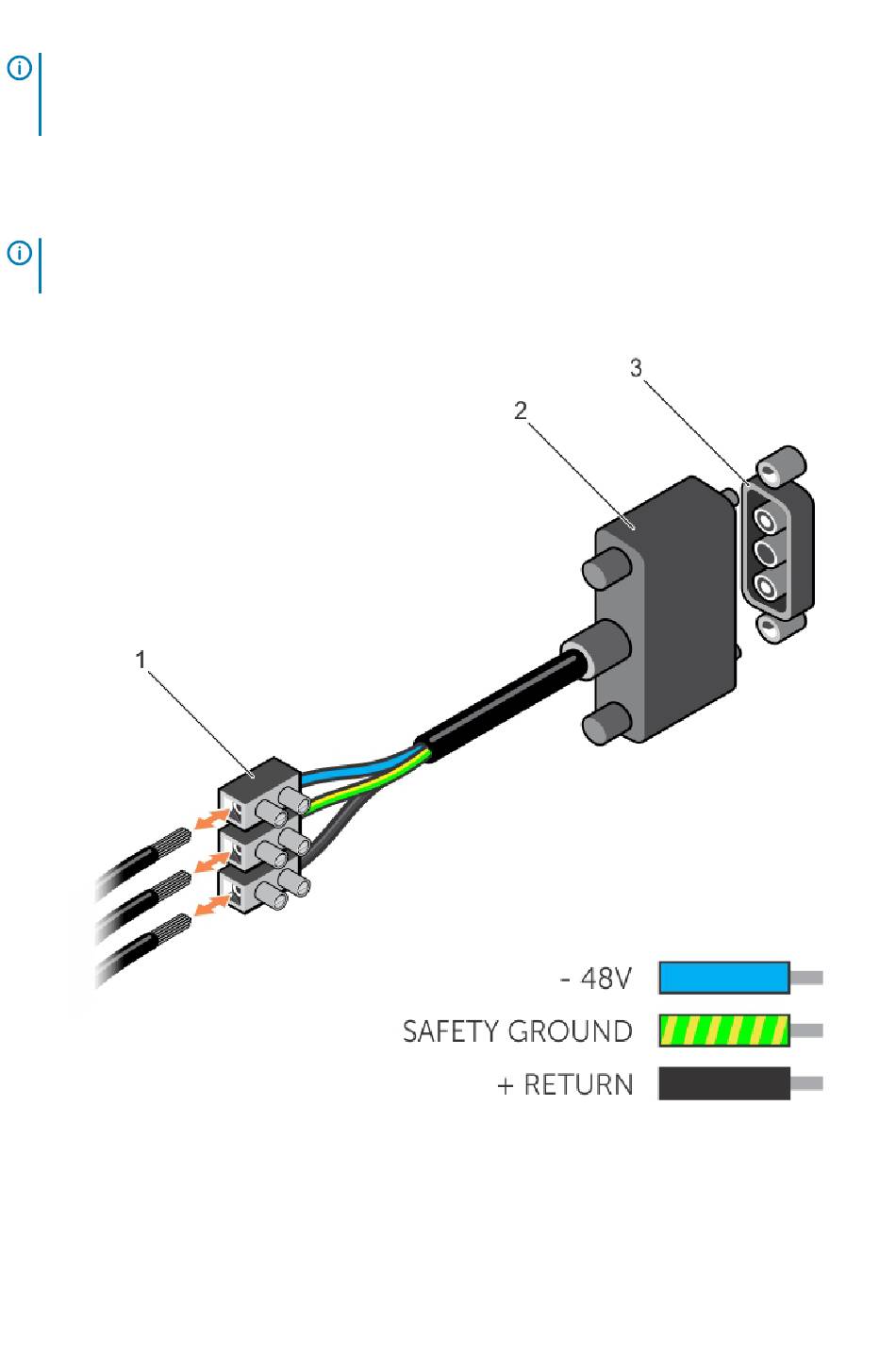

Figure 21. DC power connector and wiring block
1 Wiring block
DC power connections.
2 Power connector
S5200F-ON Series switch Installation 35
