1U Tool-less mount installation
NOTE:
For more installation instructions, see the installation labels attached to the
rail assembly.
1
Face the ReadyRails flange ears facing outward. Place one rail between the left and
right vertical posts. Align and seat the back flange rail pegs in the back vertical post
flange.
The center extractions show how the pegs appear in both the square and nonthreaded
round holes.

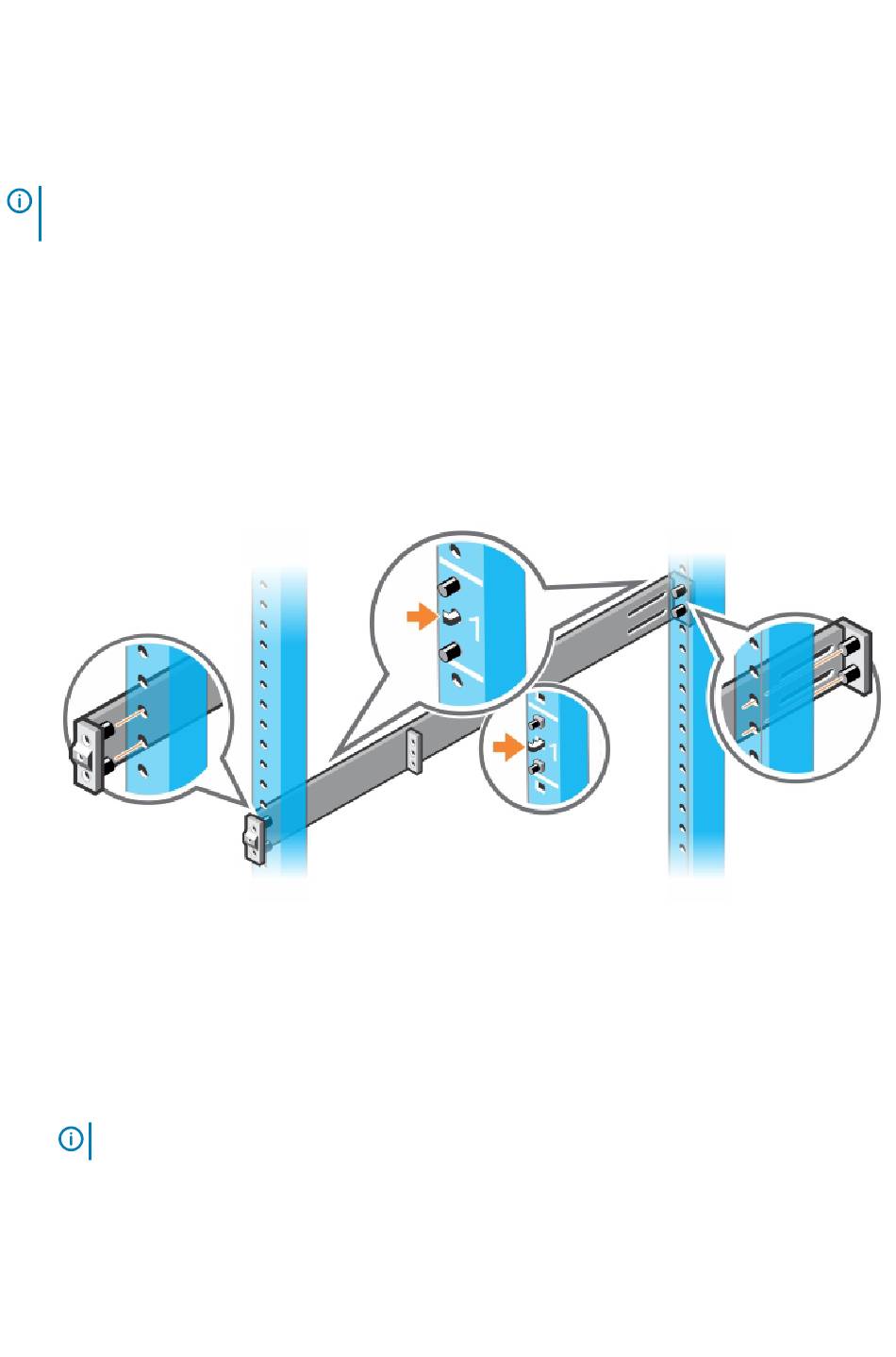

Figure 12. 1U tool-less installation
2
Align and seat the front flange pegs in the holes on the front side of the vertical post.
NOTE:
Be sure that the rails click into place and are secure.
3
Repeat this procedure for the second rail.
S5200F-ON Series switch Installation
21
