- Page 1 Dell EMC PowerSwitch N2200-ON Series Installation Guide...
- Page 2 Notes, cautions, and warnings NOTE: A NOTE indicates important information that helps you make better use of your product. CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem. WARNING: A WARNING indicates a potential for property damage, personal injury, or death.
-
Page 3: Table Of Contents
Contents 1 About this guide........................... 5 Related documents................................5 Information symbols................................6 2 N2200-ON Series switch.......................7 Introduction.................................... 7 Features....................................10 Physical dimensions................................11 LED display.....................................11 LED behavior..................................11 Prerequisites..................................14 N2200-ON Series switch configurations.......................... 14 Luggage tag..................................15 3 Site preparations........................17 Site selection..................................17 Cabinet placement................................ - Page 4 USA Federal Communications Commission statement.................... 56 European Union EMC directive conformance statement..................56 Japan VCCI compliance for class A equipment......................57 Korean certification of compliance..........................58 Safety standards and compliance agency certifications..................58 Electromagnetic compatibility .............................58 Product recycling and disposal............................ 59 10 Dell EMC support........................60 Contents...
-
Page 5: About This Guide
Marketing model N2248PX-ON is represented by the regulatory model E41W and the regulatory type E41W004. Topics: • Related documents • Information symbols Related documents For more information about the N2200-ON Series, see the following documents: • Dell EMC PowerSwitch N2200-ON Series Warnings Guide • Dell EMC PowerSwitch N2200-ON Series Setup Placemat About this guide... -
Page 6: Information Symbols
• Open Networking Hardware Diagnostic Guide N2200-ON and N3200-ON Series Switches • External Power Supply (EPS) Installation for the Dell EMC PowerSwitch N2200-ON and N3200-ON Series Switches NOTE: For the most recent documentation, see Dell EMC support: www.dell.com/support. Information symbols... -
Page 7: N2200-On Series Switch

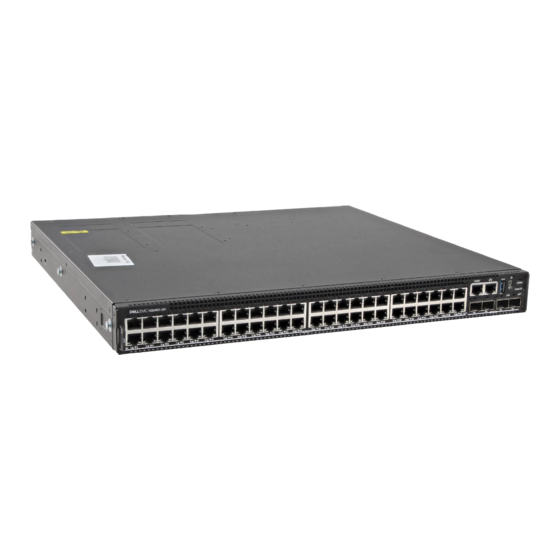

N2200-ON Series switch The following sections describe the Dell EMC N2200-ON Series (N2224X-ON, N2224PX-ON, N2248X-ON, and N2248PX-ON) switches: Topics: • Introduction • Features • Physical dimensions • LED display • Prerequisites • N2200-ON Series switch configurations • Luggage tag Introduction The N2200-ON Series switches are one rack unit (1U), full-featured fixed form-factor compact switches. - Page 8 1. Luggage tag 2. 2.5GBASE-T RJ45 multigigabit ports 3. RJ45 serial management port 4. RJ45 Ethernet console port 5. USB Type-A port 6. Stack ID 7. MicroUSB Type-B port 8. Status LEDs 9. 25G SFP28 ports N2224PX-ON I/O-side view 1. Luggage tag 2.
- Page 9 5. USB Type-A port 6. Stack ID 7. MicroUSB Type-B port 8. Status LEDs 9. 25G SFP28 ports N2248PX-ON I/O-side view 1. Luggage tag 2. 2.5GBASE-T RJ45 ports: • First 24 ports with 802.at (30W) PoE • Second 24 ports with 802.3bt Type-3 (60W) PoE 3.
-
Page 10: Features
N2248X-ON PSU-side view 1. 40G QSFP+ stacking ports 2. Fans 3. AC or DC PSUs N2248PX-ON PSU-side view 1. 40G QSFP+ stacking ports 2. Fans 3. Input for external power shelf (MPS-1S shelf and MPS-3S shelf) 4. AC or DC PSUs Features The N2200-ON Series switches offer the following features: •... -
Page 11: Physical Dimensions
Physical dimensions The N2200-ON Series switches have the following physical dimensions, excluding the PSU and fan tray handle: • 1.71 in x 17.09 in x 15.75 in (H x W x D) • 43.5 mm x 434 mm x 400 mm (H x W x D) (PSU and fan tray handle adds 1.18 in or 30 mm) LED display The N2200-ON Series switch includes LED displays on the I/O side of the switch. - Page 12 Table 2. N2200-ON Series switch LED behavior Description 7-Segment LED for stacking • Off—No power • Solid green—Hex digit representing the stack unit ID Stack Master LED • Off—Switch is in Stacking Slave mode • Solid green—Switch is in Stacking Master or Standalone mode System Status/Health LED •...
- Page 13 Table 5. 2.5G Base-T PoE port LEDs Description Link LED All four LEDs: • Off—No link • Solid green—Link operating at maximum speed, autonegotiated/forced to 2.5GBase-T mode • Solid yellow—Link operating at a lower speed, autonegotiated/ forced to 10/100/1000MBase-T • Flashing green, ~30ms—Port activity Activity LED •...
-
Page 14: Prerequisites
Prerequisites The following is a list of components that are required for successful switch installation: NOTE: For detailed installation instructions, see Site preparations N2200-ON Series switch installation. • N2200-ON Series switch or multiple switches, if stacking • AC or DC country- and regional-specific cables to connect the AC or DC power source to the AC or DC PSU •... -
Page 15: Luggage Tag
Luggage tag The switch has a pull-out tag, which is known as a luggage tag, on the PSU-side of the switch. The front of the luggage tag includes switch ID information. The back of the luggage tag includes a QRL that takes you to a How-To site where you can watch videos about racking the switch, replacing components, configuring port channels, and so on. - Page 16 1. Product ID QRL 2. Product information QRL 3. SVC tag 4. MAC address 5. Exp Svc code N2200-ON Series switch...
-
Page 17: Site Preparations
Site preparations The N2200-ON Series switch is suitable for installation as part of a common bond network (CBN). You can install the switch in: • Network telecommunication facilities • Data centers • Other locations where the National Electric Code (NEC) applies NOTE: Install the switch into a rack or cabinet before installing any additional components such as cables or optics. -
Page 18: Switch Ground
Switch ground Dell EMC recommends you ground your switch. Use the N2200-ON Series switch in a common bond network (CBN). Connect the grounding cables as described in N2200-ON Series switch installation. NOTE: For an AC-powered switch, although the third conductor of the AC power cable provides a ground path, Dell EMC recommends grounding your switch with a dedicated ground wire. - Page 19 • Store on a dry surface or floor, away from direct sunlight, heat, and air conditioning ducts. • Store in a dust-free environment. NOTE: ESD damage can occur when components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when handling the N2200-ON Series switch and accessories.
-
Page 20: N2200-On Series Switch Installation
N2200-ON Series switch installation To install the N2200-ON Series switch, complete the installation procedures in the order that is presented in this chapter. Always handle the switch and components with care. Avoid dropping the switch or its field replaceable units (FRUs). NOTE: ESD damage can occur if components are mishandled. -
Page 21: Rack Or Cabinet Hardware Installation
5. Inspect the product and accessories for damage. Rack or cabinet hardware installation You may either place the switch on a rack shelf or mount the switch directly into a 19" wide, EIA-310- E-compliant rack. Rack mounting includes four-post, two-post, or threaded mounts. Safety, Environmental, and WARNING: This document is a condensed reference. -
Page 22: Desktop
4. Repeat the process for the remaining three rubber feet. 5. Turn the switch over and place on a desktop. Two-post five-inch-offset switch installation External Power Supply (EPS) Installation for the Dell EMC NOTE: To install an external power supply (EPS), see the PowerSwitch N2200-ON and N3200-ON Series Switches at www.dell.com/support. -
Page 23: Two-Post Flush-Mount Switch Installation
5. Attach the switch to the two-post rack using two number 12-24 screws on each side. To uninstall the switch from the rack, unscrew the four number 12-24 rackmount screws. Two-post flush-mount switch installation External Power Supply (EPS) Installation for the Dell EMC NOTE: To install an external power supply, see the PowerSwitch N2200-ON and N3200-ON Series Switches at www.dell.com/support. -
Page 24: Wall- Or Ceiling-Mount Switch Installation
To uninstall the switch from the rack, unscrew the four number 12-24 rackmount screws. Wall- or ceiling-mount switch installation This installation procedure is for the full-width N2200-ON Series switches only. External Power Supply (EPS) Installation for the Dell EMC NOTE: To install an external power supply, see the PowerSwitch N2200-ON and N3200-ON Series Switches at www.dell.com/support. - Page 25 5. Drill eight 8 mm (0.3 in) holes in the wall or ceiling at the pencil marks. 6. Install the eight anchors into the holes. 7. Screw one M5 screw on each corner, four screws total, into the anchors, leaving approximately 5 mm (0.20 in) gap between the anchor and the screw.
-
Page 26: One Ru Readyrails Installation
Wall mount ceiling mount One RU ReadyRails installation Install the N2200-ON Series switch using one of the following installation instructions. You can install the ReadyRails system using the 1U tool-less square-hole method or one of three possible 1U threaded round-hole methods. The tooled installation methods include two-post flush mount, two-post center mount, or four-post threaded mount. -
Page 27: 1U Tool-Less Mount Readyrail Installation
Figure 2. Separate rails 1U Tool-less mount ReadyRail installation NOTE: For more installation instructions, see the installation labels attached to the rail assembly. 1. Face the ReadyRails flange ears facing outward. Place one rail between the left and right vertical posts. Align and seat the back flange rail pegs in the back vertical post flange. -
Page 28: Flush-Mount Readyrail Installation
3. Repeat this procedure for the second rail. To remove each rail, pull on the latch release on each flange ear and unseat each rail. Flush-mount ReadyRail installation NOTE: For more installation instructions, see the installation labels attached to the rail assembly. 1. -
Page 29: Threaded Readyrails Installation
2. Slide the back bracket towards the post. Secure it to the post flange with two user-supplied screws, items 2 and 3. 3. Repeat this procedure for the second rail. Threaded ReadyRails installation NOTE: For more installation instructions, see the installation labels attached to the rail assembly. 1. -
Page 30: Optics Installation
The N2200-ON Series has QSFP+ and SFP28 optical ports. For a list of supported optics, see the specification sheets at www.dell.com/support or contact your Dell EMC Sales representative. CAUTION: ESD damage can occur if components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when handling the N2200-ON Series switch and components. -
Page 31: Switch Start-Up
Dell EMC support representative. NOTE: Some steps do not apply if you are replacing a different switch or non-Dell EMC switch. NOTE: ESD damage can occur when components are mishandled. Always wear an ESD-preventive wrist or heel ground strap when handling the switch and accessories. - Page 32 10. Confirm that the software version of the replacement switch is the same as the previously installed switch. show version If the software versions do not match, upgrade the replacement switch software using the procedure included with the firmware download. 11.
-
Page 33: Power Supply
Power supply The N2200-ON Series switch ships with one hot-swappable AC power supply. You can order a second AC PSU separately. If you require DC power, you can order one or two DC power supply units. • N2224X-ON and N2248X-ON—AC with airflow from the I/O side to the PSU side or airflow from the PSU side to the I/O side •... - Page 34 1. PSUs—PSU1 is near the center of the switch; PSU2 is on the right edge of the switch. N2224X-ON PSUs 1. PSUs—PSU1 is near the center of the switch; PSU2 is on the right edge of the switch. N2248PX-ON PSUs 1.
-
Page 35: Ac Or Dc Power Supply Installation
NOTE: To comply with the GR-1089 Lightning Criteria for Equipment Interfacing with AC or DC Power Ports, use an external surge protection device (SPD) at the AC or DC input of the router. AC power cable retainer For hot-swappable PSUs, after you have connected the power cable to the switch, use the included black power-cable tie to secure the cable in place. - Page 36 1. PSU N2248PX-ON PSU installation 1. PSU N2248X-ON PSU installation 1. PSU NOTE: The N2200-ON Series switch powers up when you connect the cables between the power supply and the power source. Power supply...
-
Page 37: Ac Or Dc Power Supply Replacement
AC or DC power supply replacement CAUTION: Disconnect the power cable before removing the power supplies. Also, disconnect all power cables before servicing. NOTE: The PSU slides into the slot smoothly. Do not force a PSU into a slot as this action may damage the PSU or the N2200-ON Series switch. -
Page 38: Connect The Eps Shelf
NOTE: For more information about the external power supply (EPS), see the Dell EMC PowerSwitch N2200-ON and N3200-ON Series Switches at www.dell.com/support. NOTE: The EPS power cable supports a maximum of 2400 W. If you require more power than 2400 W, you must connect two EPS power cables. - Page 39 MPS-3S shelf 3. Connect the EPS power cable to the EPS-DC-In on the switch. Torque the screw to 10 in-lbs. One EPS power cable connected Power supply...
- Page 40 Two EPS power cables connected 4. Connect the other end of the DC cable to either a MPS-1S shelf or MPS-3S shelf. Torque the screw to 10 in-lbs. One EPS power cable connected to a MPS-1S shelf. One EPS power cable connected to a MPS-3S shelf Power supply...
- Page 41 Two EPS power cables connected to a MPS-3S shelf 5. Repeat until all EPS power cables are connected. To disconnect an EPS power cable, unscrew the cable and disconnect the cable from the switch. Power supply...
-
Page 42: Fans
Fans The N2200-ON Series switch comes from the factory with two or three pluggable fan modules. • N2224X-ON and N2224PX-ON—Two fan modules • N2248X-ON and N2248PX-ON—Three fan modules The N2224X-ON and N2248X-ON switches support two airflow direction options. Do not mix airflow types in a switch; you can use only a single airflow direction in a switch. -
Page 43: Fan Module Installation
1. Fans—Fan1 is near the left edge of the switch; Fan2 is near the center of the switch. N2248PX-ON fan modules 1. Fans—Fan1 is near the left edge of the switch; Fan3 is near the center of the switch. N2248X-ON fan modules 1. - Page 44 1. Fan N2224X-ON fan installation 1. Fan N2248PX-ON fan installation 1. Fan N2248X-ON fan installation Fans...
-
Page 45: Fan Module Replacement
1. Fan Fan module replacement To request a hardware replacement, see www.dell.com/support/. 1. Take the replacement fan module out of the shipping box. 2. Slide the installed fan module out of the bay. 3. Slide the replacement module into the bay. Fans... -
Page 46: Management Ports
Management ports The N2200-ON Series switch provides three ports for management and one USB flash drive mount for file transfers. NOTE: The output examples in this section are for reference only. Your output may vary. Topics: • RJ45 console port access •... -
Page 47: Microusb Type-B Console Port Access
Before starting this procedure, be sure that you have a terminal emulation program that is already installed on your computer. If your computer requires non-Dell EMC drivers, and you have issues with your USB console port, contact Dell EMC technical support for assistance. - Page 48 For USB storage: Disk /dev/sdb<number>: 30.9 GB, 30942946304 bytes 64 heads, 32 sectors/track, 29509 cylinders Units = cylinders of 2048 * 512 = 1048576 bytes Device Boot Start Blocks Id System 5. Mount the device /dev/sdb<number> to the /mnt/usb directory. ONIE:/ # mount -t vfat /dev/sdb<number>...
-
Page 49: Installation Using Onie
Installation using ONIE This section describes uninstalling an operating system and installing ONIE on your switch. For more information, see switch-specific information at www.dell.com/support. NOTE: Before you install an operating system, ensure that the switch has the most current ONIE and firmware version. Drivers and Downloads page for your switch at www.dell.com/support. -
Page 50: Check Your Switch
NOTE: After you have securely installed and powered on the N2200-ON Series switch, to configure your switch, see your third-party ONIE-compatible operating system or the Dell EMC operating system documentation. Check your switch To confirm that ONIE is working properly, use the onie-sysinfo command at the ONIE prompt. -
Page 51: Uninstall An Existing Os
00:05.0 Class 0807: 8086:19a2 00:1f.2 Class 0580: 8086:19de 00:1c.0 Class 0805: 8086:19db 00:1f.0 Class 0601: 8086:19dc 02:00.0 Class 0200: 8086:1533 00:04.0 Class 0600: 8086:19a1 01:00.0 Class 0200: 14e4:b170 (NPU PCI detection) ONIE:/ # Uninstall an existing OS CAUTION: To install a networking operating system (NOS) on a switch that has a previously installed OS, you must first uninstall the existing OS. -
Page 52: Automatic Nos Installation
Automatic NOS installation You can automatically install an NOS image on a Dell EMC ONIE-enabled device. This process is known as zero-touch install. After the device boots to ONIE: Install OS, ONIE autodiscovery follows these steps to locate the installer file and uses the first successful method: 1. -
Page 53: Manual Nos Installation
Press <DEL> or <F2> to enter setup. Welcome to GRUB! Manual NOS installation If you do not use the ONIE-based automatic installation of a NOS image and if a DHCP server is not available, you can manually install the image. Configure the Management port and provide the software image file to start the installation. 1. -
Page 54: Specifications
Specifications This section lists the N2200-ON Series switch specifications. CAUTION: Operate the product at an ambient temperature not higher than 45°C (113°F). NOTE: For RoHS information, see Restricted Material Compliance. Topics: • Chassis physical design • IEEE standards • Agency compliance Chassis physical design Table 10. - Page 55 Parameter Specifications Maximum non-operational altitude 39,370 feet (12,000 meters) Shock Dell EMC Spec SV0115 Table 12. Power consumption parameters Parameter Specifications Input voltage AC: 100–240 VAC 50/60 Hz DC: –40 VDC to –60 VDC Input current without PoE • N2224X-ON: 2.46 Amps @ 110 VAC and 1.23 Amps @ 220 VAC •...
-
Page 56: Ieee Standards
Properly shielded and grounded cables and connectors must be used in order to meet FCC emission limits. Dell EMC is not responsible for any radio or television interference caused by using other than recommended cables and connectors or by unauthorized changes or modifications in the equipment. -
Page 57: Japan Vcci Compliance For Class A Equipment
(VCCI). If this equipment is used in a domestic environment, radio disturbance may arise. When such trouble occurs, the user may be required to take corrective actions. NOTE: Use the AC power cords with Dell EMC equipment only. Do not use Dell EMC AC power cords with any unauthorized hardware. Figure 7. Japan: warning label... -
Page 58: Korean Certification Of Compliance
Korean certification of compliance Figure 8. Korean certification of compliance Figure 9. Korean package label Safety standards and compliance agency certifications • CUS UL 60950-1, 2nd Edition • Meets or exceeds Hi Pot and Ground Continuity testing per UL 60950-1. •... -
Page 59: Product Recycling And Disposal
You must recycle or discard this switch according to applicable local and national regulations. Dell EMC encourages owners of information technology (IT) equipment to responsibly recycle their equipment when it is no longer needed. Dell EMC offers a variety of product return programs and services in several countries to assist equipment owners in recycling their IT products. -
Page 60: Dell Emc Support
Dell EMC support The Dell EMC support site provides documents and tools to help you use Dell EMC equipment and mitigate network outages. Through the support site you can obtain technical information, access software upgrades and patches, download available management software, and manage your open cases.
