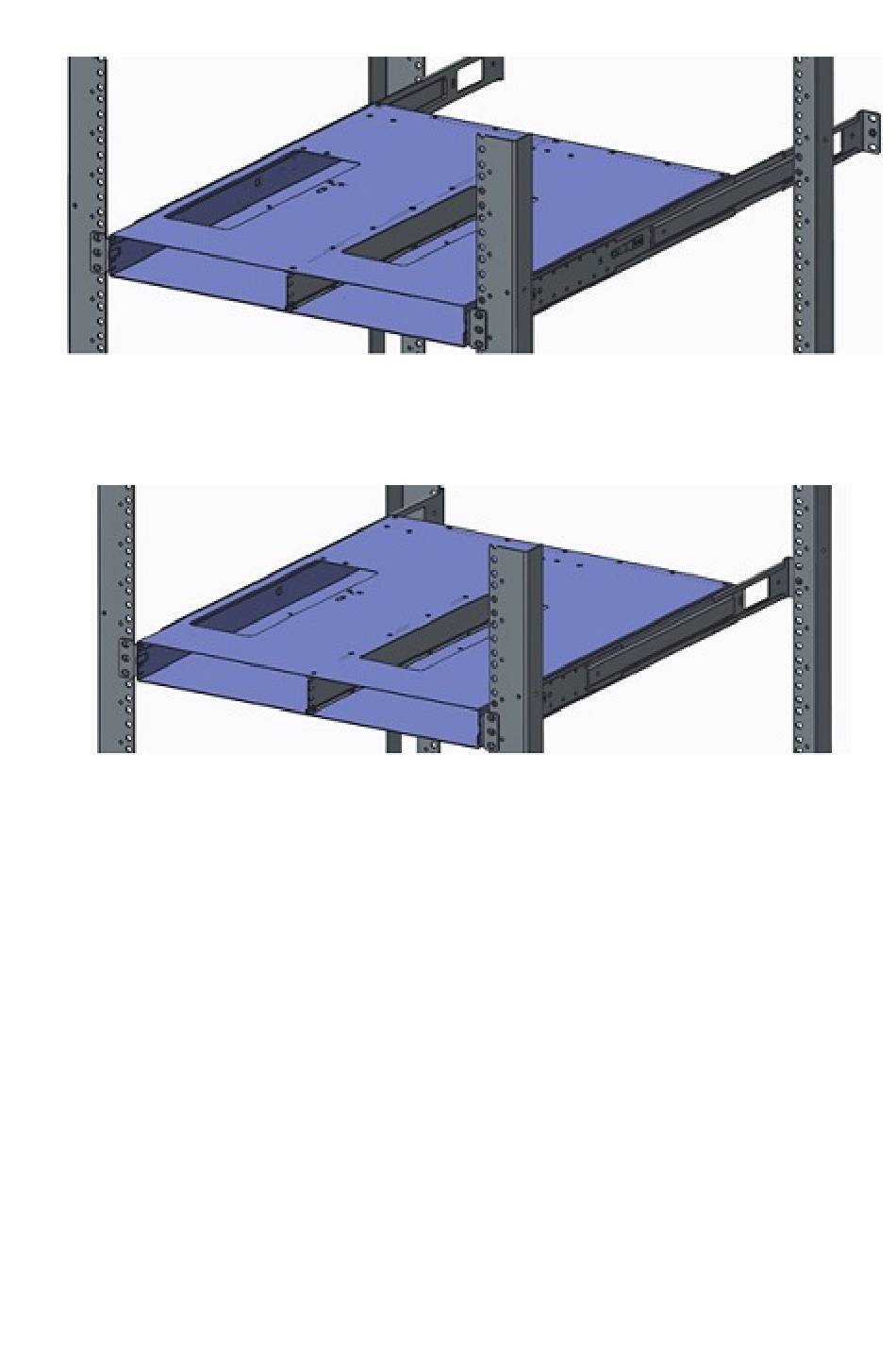

Figure 5. Attach the dual-tray rear to the four-post rack rear
8
Tighten all mounting screws to securely mount the dual tray into the four-post rack.
Figure 6. Secure the dual-tray in the four-post rack
One-half U switch installation
Install one or two half-U switches in the four-post rack-mounted dual tray.
1
Install one switch into either dual-tray slot from the front.
S5200F-ON Series switch Installation
