One-half U front-rack installation
Install the S5212F-ON switch using the following installation instructions.
NOTE:
To install the S5232F-ON, S5248F-ON, or S5224F-ON switch, see
ReadyRails
installation. To install the S5296F-ON switch, see
assembly.
The dual-tray mounting rails ship with the dual tray, not with the switch. You must supply
eight rackmount screws for this installation.
To install the one-half U switch:
•
Attach the rails to the dual tray.
•
Install the dual tray in the four-post rack.
•
(Recommended) Attach the ground cable to the switch.
•
Install the switch in the dual tray.
NOTE:
Do not install the dual tray in a two-post rack.
1
Remove the dual tray and the rails from the shipping packaging and place them on a
clean antistatic surface.
2
Line up the three holes on the inner switch rail with the dual-tray mounting heads.

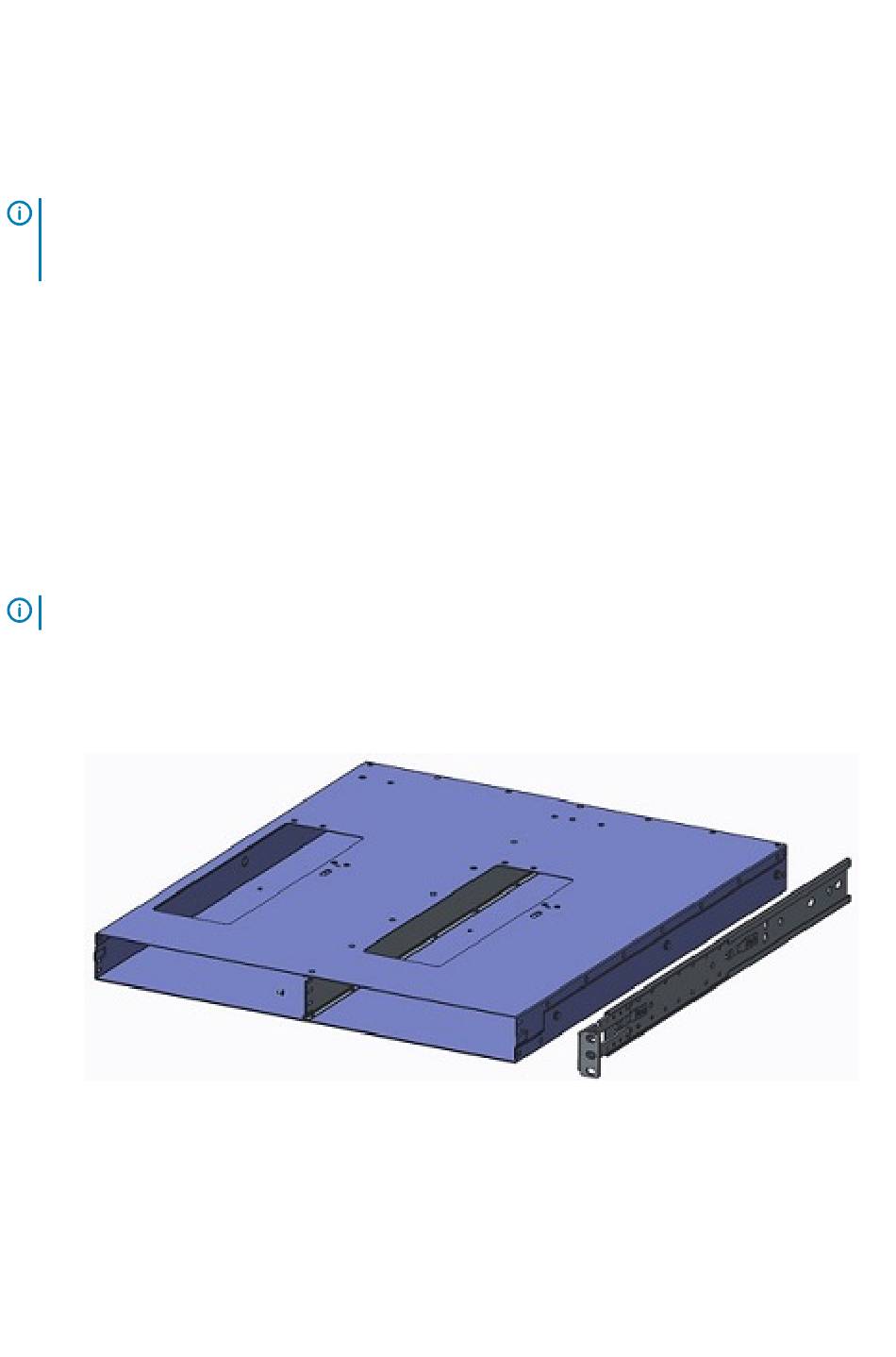

Figure 2. Dual-tray and rack mounting rail
3
Attach the rail to the dual tray. Slide the rail back until it locks into place.
4
Repeat with the other side.
S5200F-ON Series switch Installation
One U
Two U four-post rack
