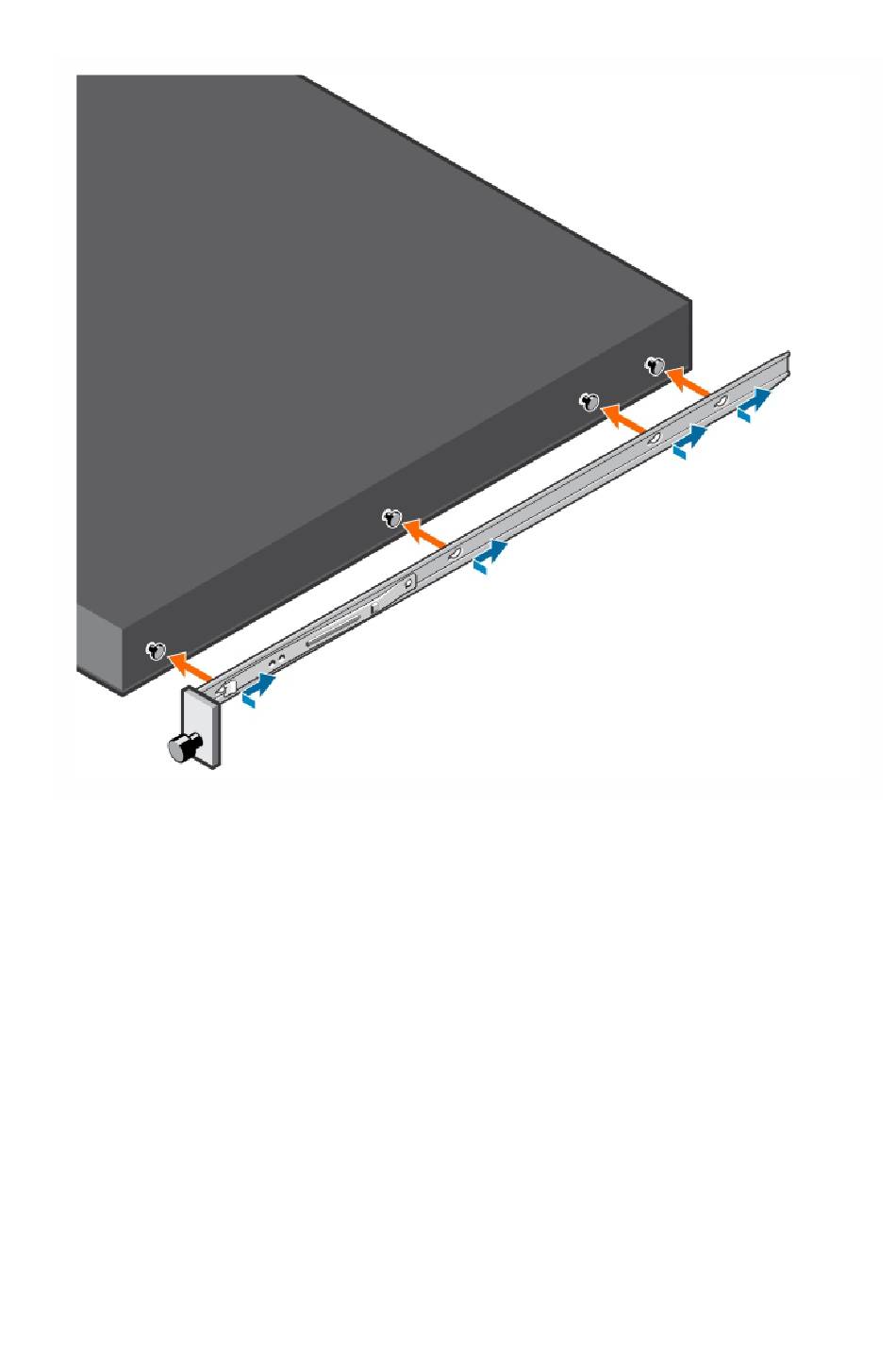

Figure 16. Switch rail attachment
2
After you install both rails, line them up on the ReadyRails. Slide the switch in until it is
flush with the front of rack.
About three inches before you fully insert your switch, the rail locking feature engages
to keep the switch from inadvertently sliding out and falling.
28
S5200F-ON Series switch Installation
