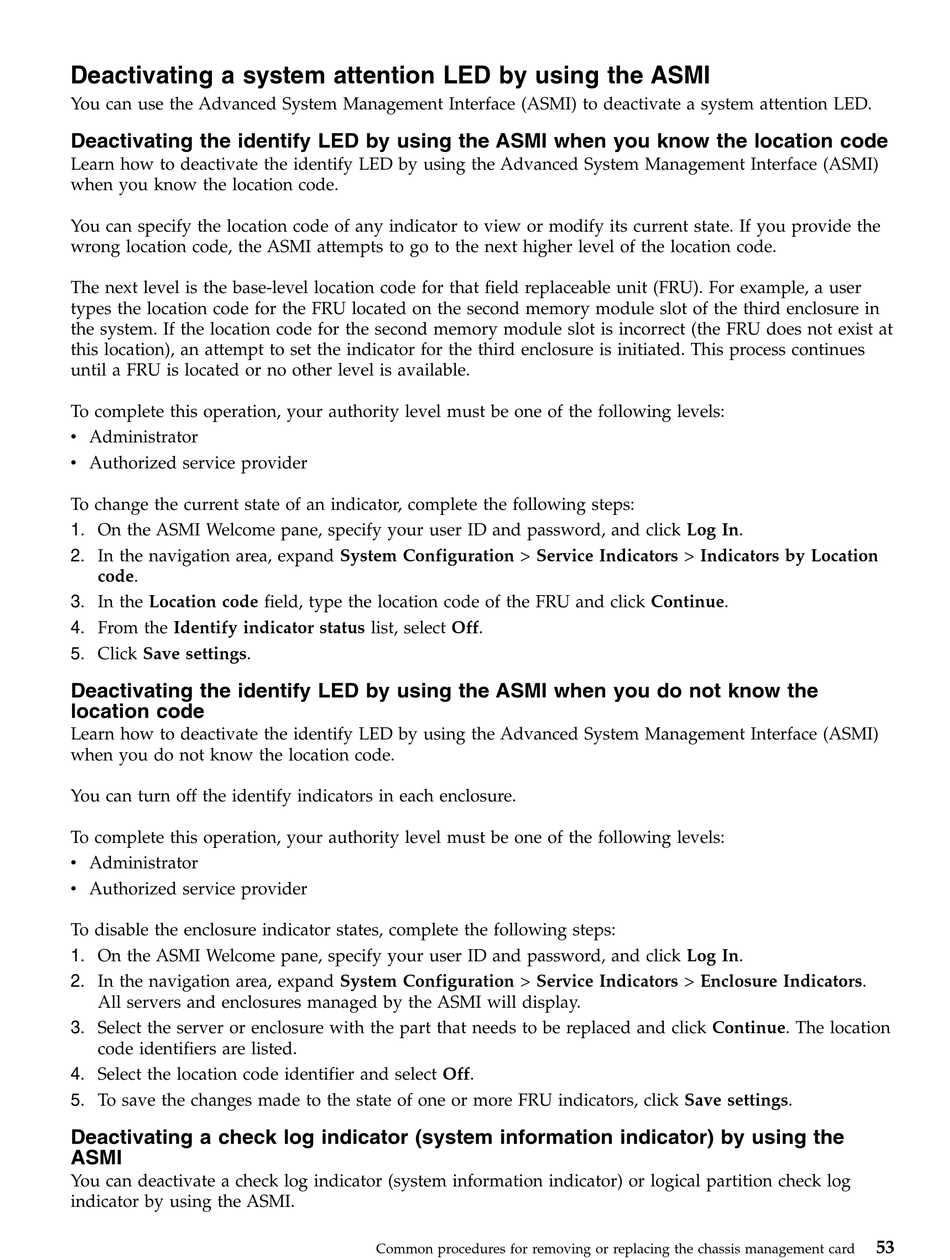

Deactivating a system attention LED by using the ASMI

You can use the Advanced System Management Interface (ASMI) to deactivate a system attention LED.

Deactivating the identify LED by using the ASMI when you know the location code

Learn how to deactivate the identify LED by using the Advanced System Management Interface (ASMI)
when you know the location code.
You can specify the location code of any indicator to view or modify its current state. If you provide the
wrong location code, the ASMI attempts to go to the next higher level of the location code.
The next level is the base-level location code for that field replaceable unit (FRU). For example, a user
types the location code for the FRU located on the second memory module slot of the third enclosure in
the system. If the location code for the second memory module slot is incorrect (the FRU does not exist at
this location), an attempt to set the indicator for the third enclosure is initiated. This process continues
until a FRU is located or no other level is available.
To complete this operation, your authority level must be one of the following levels:
v Administrator
v Authorized service provider
To change the current state of an indicator, complete the following steps:
1. On the ASMI Welcome pane, specify your user ID and password, and click Log In.
2. In the navigation area, expand System Configuration > Service Indicators > Indicators by Location
code.
3. In the Location code field, type the location code of the FRU and click Continue.
4. From the Identify indicator status list, select Off.
5. Click Save settings.
Deactivating the identify LED by using the ASMI when you do not know the
location code
Learn how to deactivate the identify LED by using the Advanced System Management Interface (ASMI)
when you do not know the location code.
You can turn off the identify indicators in each enclosure.
To complete this operation, your authority level must be one of the following levels:
v Administrator
v Authorized service provider
To disable the enclosure indicator states, complete the following steps:
1. On the ASMI Welcome pane, specify your user ID and password, and click Log In.
2. In the navigation area, expand System Configuration > Service Indicators > Enclosure Indicators.
All servers and enclosures managed by the ASMI will display.
3. Select the server or enclosure with the part that needs to be replaced and click Continue. The location
code identifiers are listed.
4. Select the location code identifier and select Off.
5. To save the changes made to the state of one or more FRU indicators, click Save settings.
Deactivating a check log indicator (system information indicator) by using the
ASMI
You can deactivate a check log indicator (system information indicator) or logical partition check log
indicator by using the ASMI.
Common procedures for removing or replacing the chassis management card
