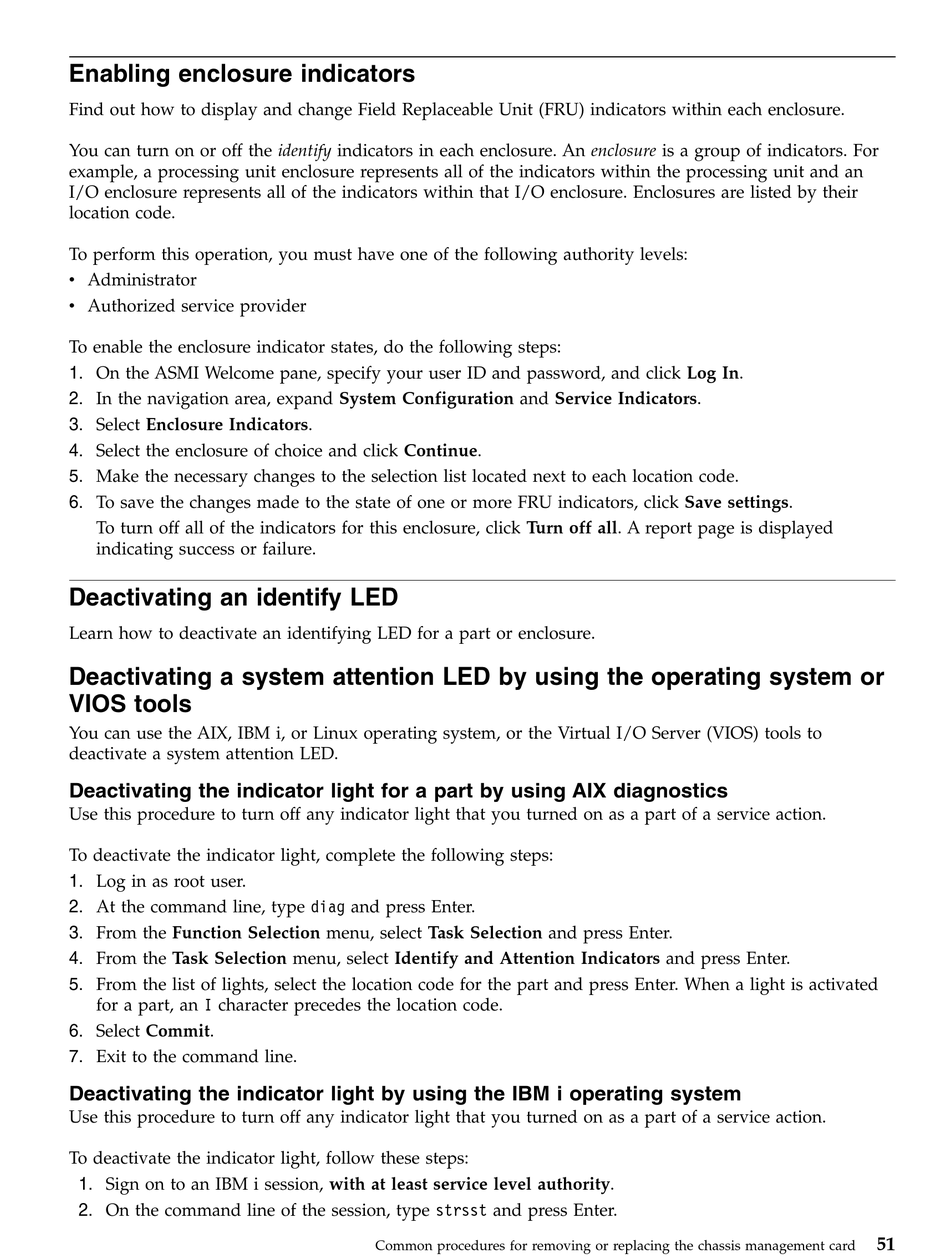

Enabling enclosure indicators

Find out how to display and change Field Replaceable Unit (FRU) indicators within each enclosure.
You can turn on or off the identify indicators in each enclosure. An enclosure is a group of indicators. For
example, a processing unit enclosure represents all of the indicators within the processing unit and an
I/O enclosure represents all of the indicators within that I/O enclosure. Enclosures are listed by their
location code.
To perform this operation, you must have one of the following authority levels:
v Administrator
v Authorized service provider
To enable the enclosure indicator states, do the following steps:
1. On the ASMI Welcome pane, specify your user ID and password, and click Log In.
2. In the navigation area, expand System Configuration and Service Indicators.
3. Select Enclosure Indicators.
4. Select the enclosure of choice and click Continue.
5. Make the necessary changes to the selection list located next to each location code.
6. To save the changes made to the state of one or more FRU indicators, click Save settings.
To turn off all of the indicators for this enclosure, click Turn off all. A report page is displayed
indicating success or failure.

Deactivating an identify LED

Learn how to deactivate an identifying LED for a part or enclosure.
Deactivating a system attention LED by using the operating system or
VIOS tools
You can use the AIX, IBM i, or Linux operating system, or the Virtual I/O Server (VIOS) tools to
deactivate a system attention LED.

Deactivating the indicator light for a part by using AIX diagnostics

Use this procedure to turn off any indicator light that you turned on as a part of a service action.
To deactivate the indicator light, complete the following steps:
1. Log in as root user.
2. At the command line, type diag and press Enter.
3. From the Function Selection menu, select Task Selection and press Enter.
4. From the Task Selection menu, select Identify and Attention Indicators and press Enter.
5. From the list of lights, select the location code for the part and press Enter. When a light is activated
for a part, an I character precedes the location code.
6. Select Commit.
7. Exit to the command line.

Deactivating the indicator light by using the IBM i operating system

Use this procedure to turn off any indicator light that you turned on as a part of a service action.
To deactivate the indicator light, follow these steps:
1. Sign on to an IBM i session, with at least service level authority.
2. On the command line of the session, type strsst and press Enter.
