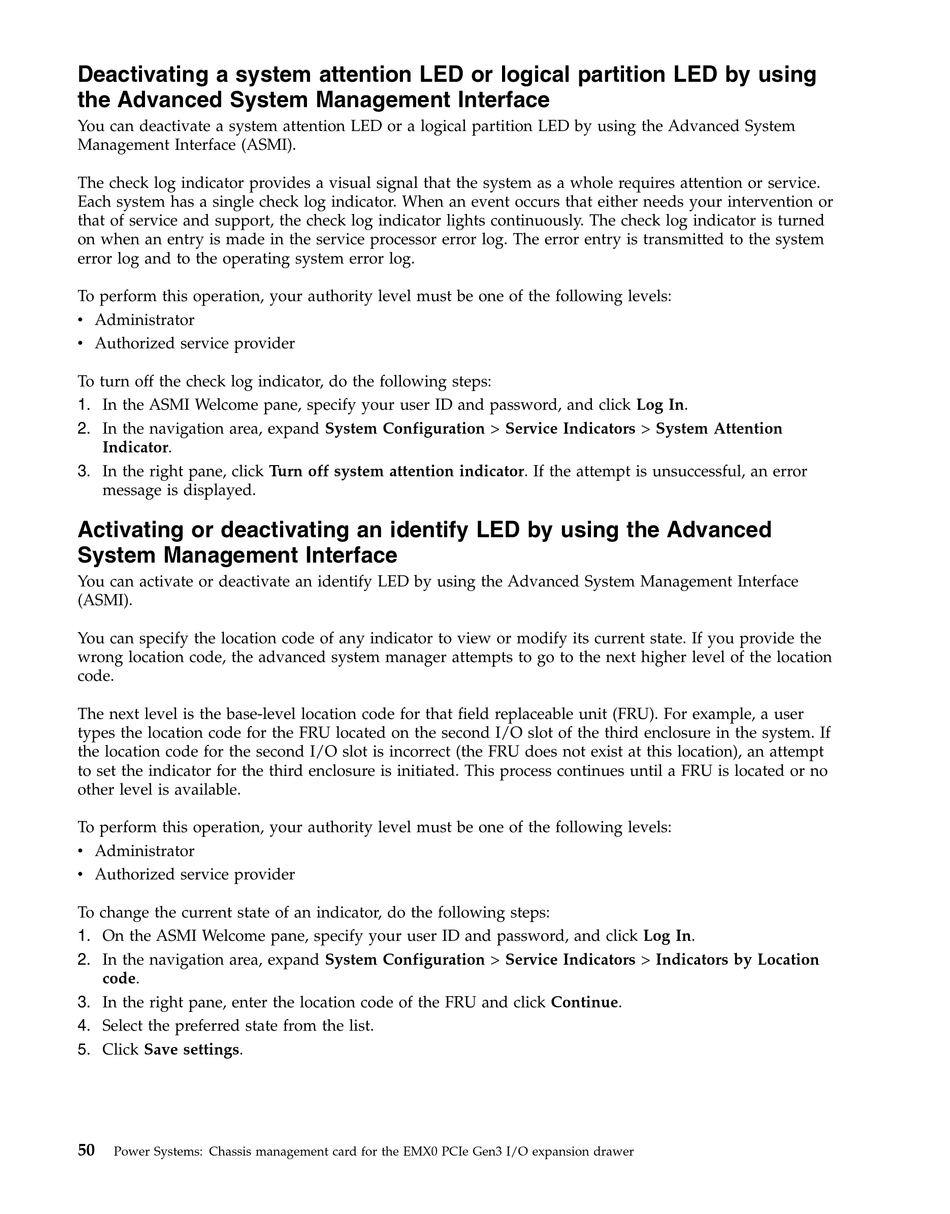

Deactivating a system attention LED or logical partition LED by using
the Advanced System Management Interface
You can deactivate a system attention LED or a logical partition LED by using the Advanced System
Management Interface (ASMI).
The check log indicator provides a visual signal that the system as a whole requires attention or service.
Each system has a single check log indicator. When an event occurs that either needs your intervention or
that of service and support, the check log indicator lights continuously. The check log indicator is turned
on when an entry is made in the service processor error log. The error entry is transmitted to the system
error log and to the operating system error log.
To perform this operation, your authority level must be one of the following levels:
v Administrator
v Authorized service provider
To turn off the check log indicator, do the following steps:
1. In the ASMI Welcome pane, specify your user ID and password, and click Log In.
2. In the navigation area, expand System Configuration > Service Indicators > System Attention
Indicator.
3. In the right pane, click Turn off system attention indicator. If the attempt is unsuccessful, an error
message is displayed.
Activating or deactivating an identify LED by using the Advanced
System Management Interface
You can activate or deactivate an identify LED by using the Advanced System Management Interface
(ASMI).
You can specify the location code of any indicator to view or modify its current state. If you provide the
wrong location code, the advanced system manager attempts to go to the next higher level of the location
code.
The next level is the base-level location code for that field replaceable unit (FRU). For example, a user
types the location code for the FRU located on the second I/O slot of the third enclosure in the system. If
the location code for the second I/O slot is incorrect (the FRU does not exist at this location), an attempt
to set the indicator for the third enclosure is initiated. This process continues until a FRU is located or no
other level is available.
To perform this operation, your authority level must be one of the following levels:
v Administrator
v Authorized service provider
To change the current state of an indicator, do the following steps:
1. On the ASMI Welcome pane, specify your user ID and password, and click Log In.
2. In the navigation area, expand System Configuration > Service Indicators > Indicators by Location
code.
3. In the right pane, enter the location code of the FRU and click Continue.
4. Select the preferred state from the list.
5. Click Save settings.
50
Power Systems: Chassis management card for the EMX0 PCIe Gen3 I/O expansion drawer
