DISTaNCE aND DIRECTION MEaSuREMENTS

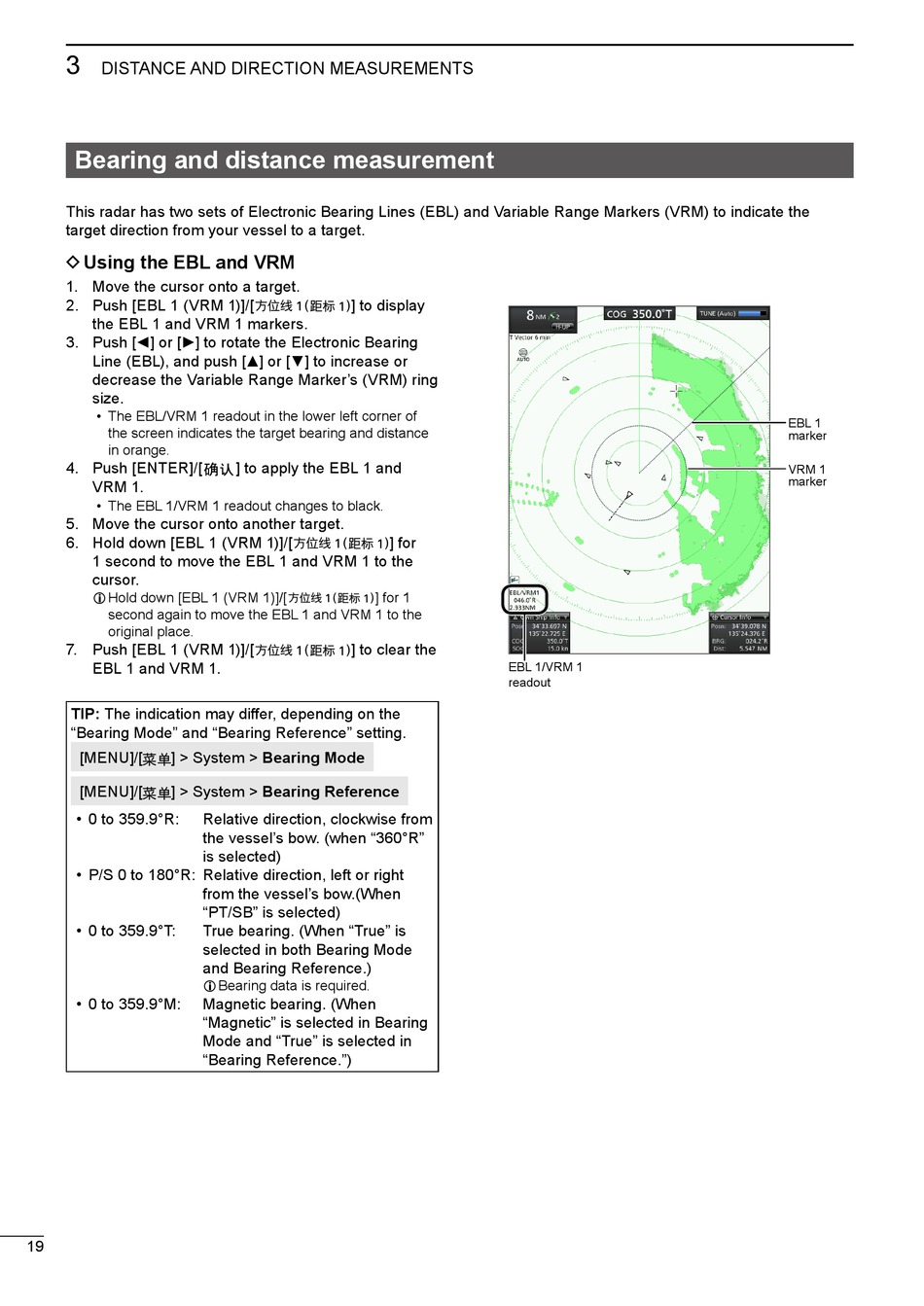

Bearing and distance measurement

This radar has two sets of Electronic Bearing Lines (EBL) and Variable Range Markers (VRM) to indicate the
target direction from your vessel to a target.
D Using the EBL and VRM
1. Move the cursor onto a target.
2. Push [EBL 1 (VRM 1)]/[
the EBL 1 and VRM 1 markers.
3. Push [◄] or [►] to rotate the Electronic Bearing
Line (EBL), and push [▲] or [▼] to increase or
decrease the Variable Range Marker's (VRM) ring
size.
• The EBL/VRM 1 readout in the lower left corner of
the screen indicates the target bearing and distance
in orange.
4. Push [ENTER]/[
VRM 1.
• The EBL 1/VRM 1 readout changes to black.
5. Move the cursor onto another target.
6. Hold down [EBL 1 (VRM 1)]/[
1 second to move the EBL 1 and VRM 1 to the
cursor.
L Hold down [EBL 1 (VRM 1)]/[
second again to move the EBL 1 and VRM 1 to the
original place.
7. Push [EBL 1 (VRM 1)]/[
EBL 1 and VRM 1.
TIP: The indication may differ, depending on the
"Bearing Mode" and "Bearing Reference" setting.
] > System > Bearing Mode
[MENU]/[
] > System > Bearing Reference
[MENU]/[
• 0 to 359.9°R:
• P/S 0 to 180°R: Relative direction, left or right
• 0 to 359.9°T:
• 0 to 359.9°M:
19
] to display
] to apply the EBL 1 and
] for 1
] to clear the
Relative direction, clockwise from
the vessel's bow. (when "360°R"
is selected)
from the vessel's bow.(When
"PT/SB" is selected)
True bearing. (When "True" is
selected in both Bearing Mode
and Bearing Reference.)
L Bearing data is required.
Magnetic bearing. (When
"Magnetic" is selected in Bearing
Mode and "True" is selected in
"Bearing Reference.")
] for
EBL 1/VRM 1
readout
EBL 1
marker
VRM 1
marker
