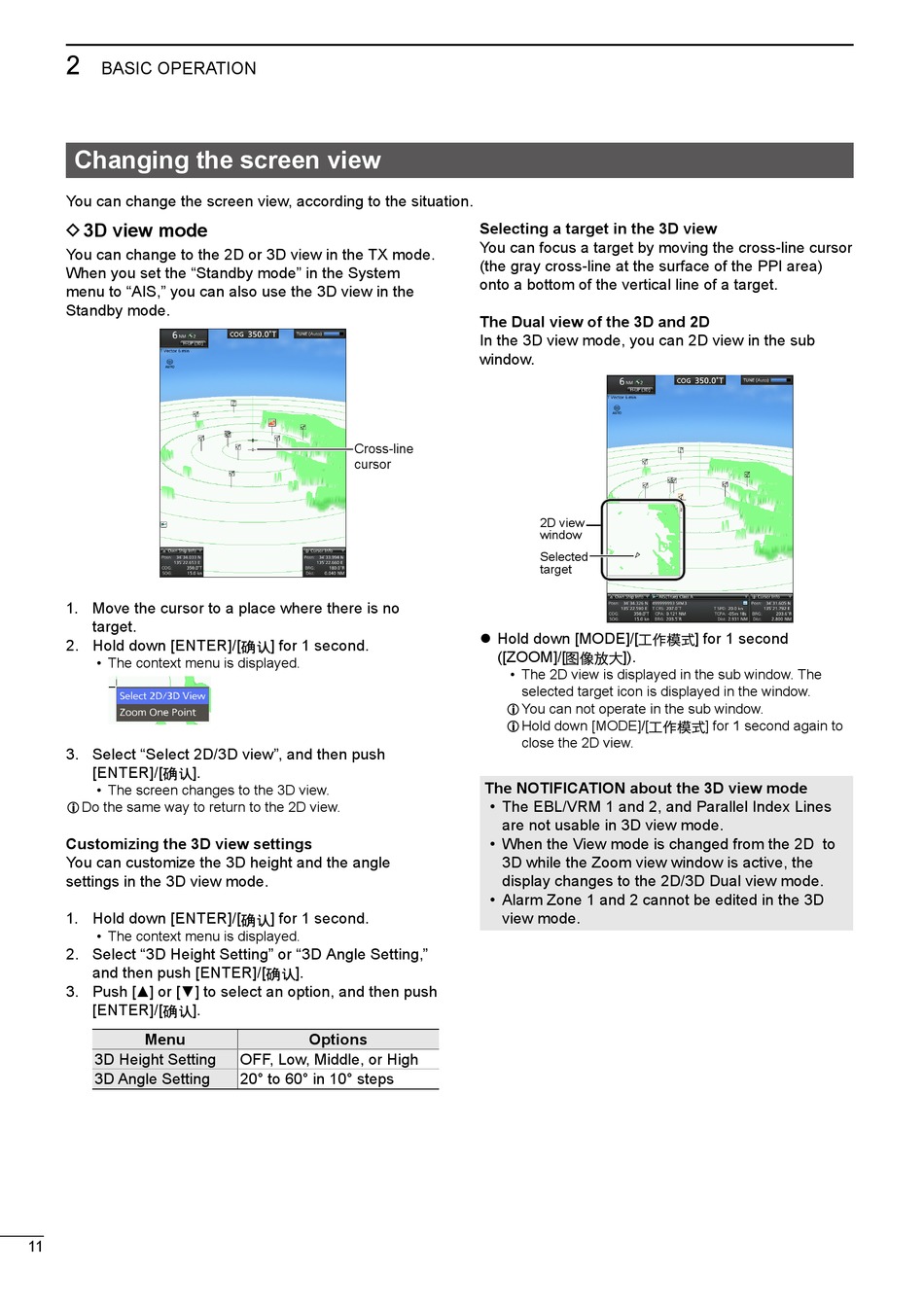

BASIC OPERATION

Changing the screen view

You can change the screen view, according to the situation.
D 3D view mode
You can change to the 2D or 3D view in the TX mode.
When you set the "Standby mode" in the System
menu to "AIS," you can also use the 3D view in the
Standby mode.
1. Move the cursor to a place where there is no
target.
2. Hold down [ENTER]/[
• The context menu is displayed.
3. Select "Select 2D/3D view", and then push
[ENTER]/[ ].
• The screen changes to the 3D view.
L Do the same way to return to the 2D view.
Customizing the 3D view settings
You can customize the 3D height and the angle
settings in the 3D view mode.
1. Hold down [ENTER]/[
• The context menu is displayed.
2. Select "3D Height Setting" or "3D Angle Setting,"
and then push [ENTER]/[
3. Push [▲] or [▼] to select an option, and then push
[ENTER]/[ ].
Menu
3D Height Setting
3D Angle Setting
11
Cross-line
cursor
] for 1 second.
] for 1 second.
].
Options
OFF, Low, Middle, or High
20° to 60° in 10° steps
Selecting a target in the 3D view
You can focus a target by moving the cross-line cursor
(the gray cross-line at the surface of the PPI area)
onto a bottom of the vertical line of a target.
The Dual view of the 3D and 2D
In the 3D view mode, you can 2D view in the sub
window.
2D view
window
Selected
target
z Hold down [MODE]/[
([ZOOM]/[ ]).
• The 2D view is displayed in the sub window. The
selected target icon is displayed in the window.
L You can not operate in the sub window.
L Hold down [MODE]/[
close the 2D view.
The NOTIFICATION about the 3D view mode
• The EBL/VRM 1 and 2, and Parallel Index Lines
are not usable in 3D view mode.
• When the View mode is changed from the 2D to
3D while the Zoom view window is active, the
display changes to the 2D/3D Dual view mode.
• Alarm Zone 1 and 2 cannot be edited in the 3D
view mode.
] for 1 second
] for 1 second again to
