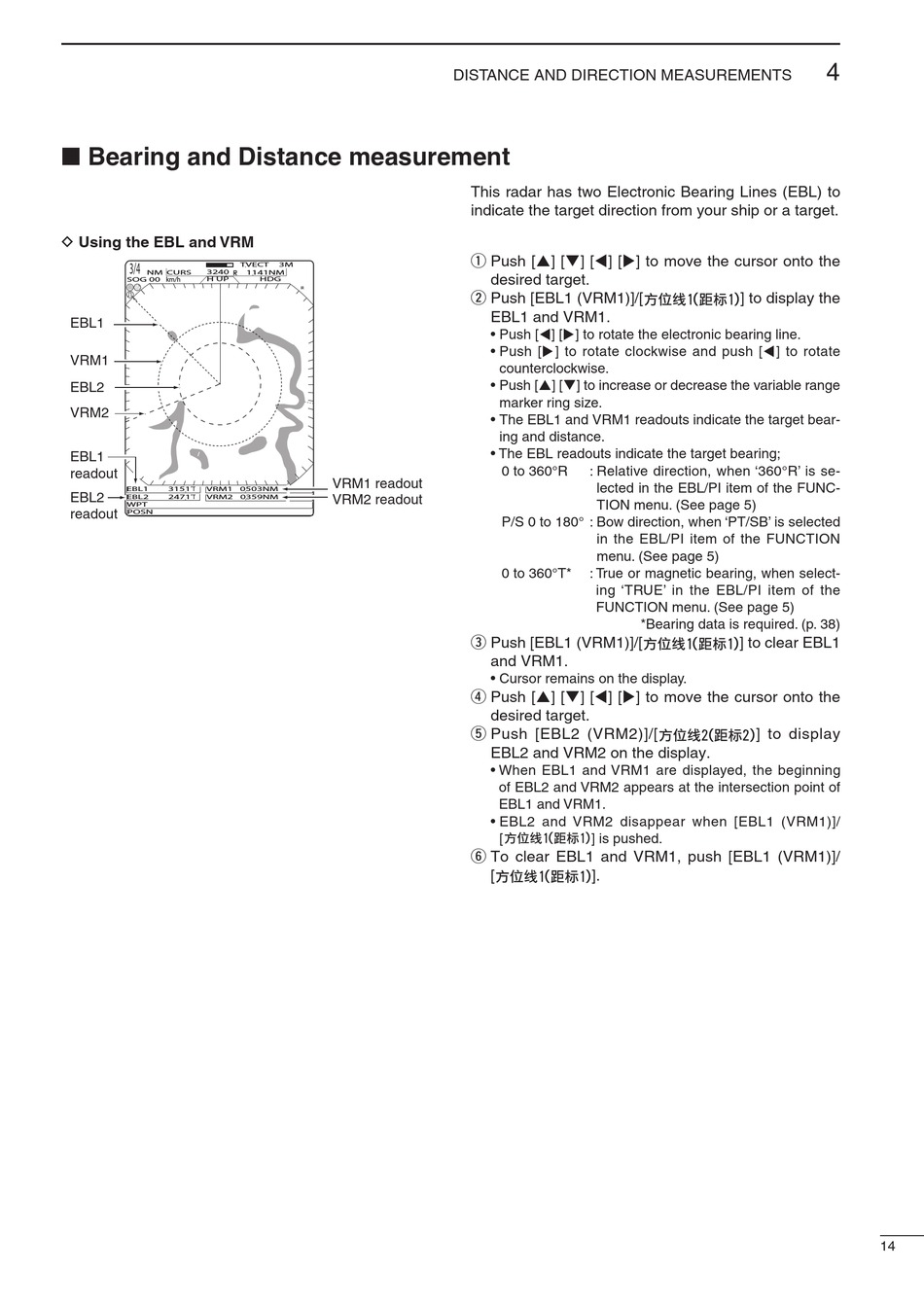

■ Bearing and Distance measurement

D Using the EBL and VRM
3/4
3240R
NM CURS
SOG 00 km/h H UP
EBL1
VRM1
EBL2
VRM2
EBL1
readout
EBL1 3151˚T VRM1
EBL2
2471˚T
EBL2 VRM2
WPT 34
readout
POSN
3M
TVECT
1141NM
HDG
IR
VRM1 readout
0503NM
VRM2 readout
0359NM
DISTANCE AND DIRECTION MEASUREMENTS
This radar has two Electronic Bearing Lines (EBL) to
indicate the target direction from your ship or a target.
q Push [p] [q] [t] [u] to move the cursor onto the
desired target.
w Push [EBL1 (VRM1)]/[
EBL1 and VRM1.
• Push [t] [u] to rotate the electronic bearing line.
• Push [u] to rotate clockwise and push [t] to rotate
counterclockwise.
• Push [p] [q] to increase or decrease the variable range
marker ring size.
• The EBL1 and VRM1 readouts indicate the target bear-
ing and distance.
• The EBL readouts indicate the target bearing;
0 to 360°R : Relative direction, when '360°R' is se-
lected in the EBL/PI item of the FUNC-
TION menu. (See page 5)
P/S 0 to 180° : Bow direction, when 'PT/SB' is selected
in the EBL/PI item of the FUNCTION
menu. (See page 5)
0 to 360°T* : True or magnetic bearing, when select-
ing 'TRUE' in the EBL/PI item of the
FUNCTION menu. (See page 5)
e Push [EBL1 (VRM1)]/[
and VRM1.
• Cursor remains on the display.
r Push [p] [q] [t] [u] to move the cursor onto the
desired target.
t Push [EBL2 (VRM2)]/[
EBL2 and VRM2 on the display.
• When EBL1 and VRM1 are displayed, the beginning
of EBL2 and VRM2 appears at the intersection point of
EBL1 and VRM1.
• EBL2 and VRM2 disappear when [EBL1 (VRM1)]/
[ ] is pushed.
y To clear EBL1 and VRM1, push [EBL1 (VRM1)]/
[ ].
] to display the
*Bearing data is required. (p. 38)
] to clear EBL1
] to display
4
14
