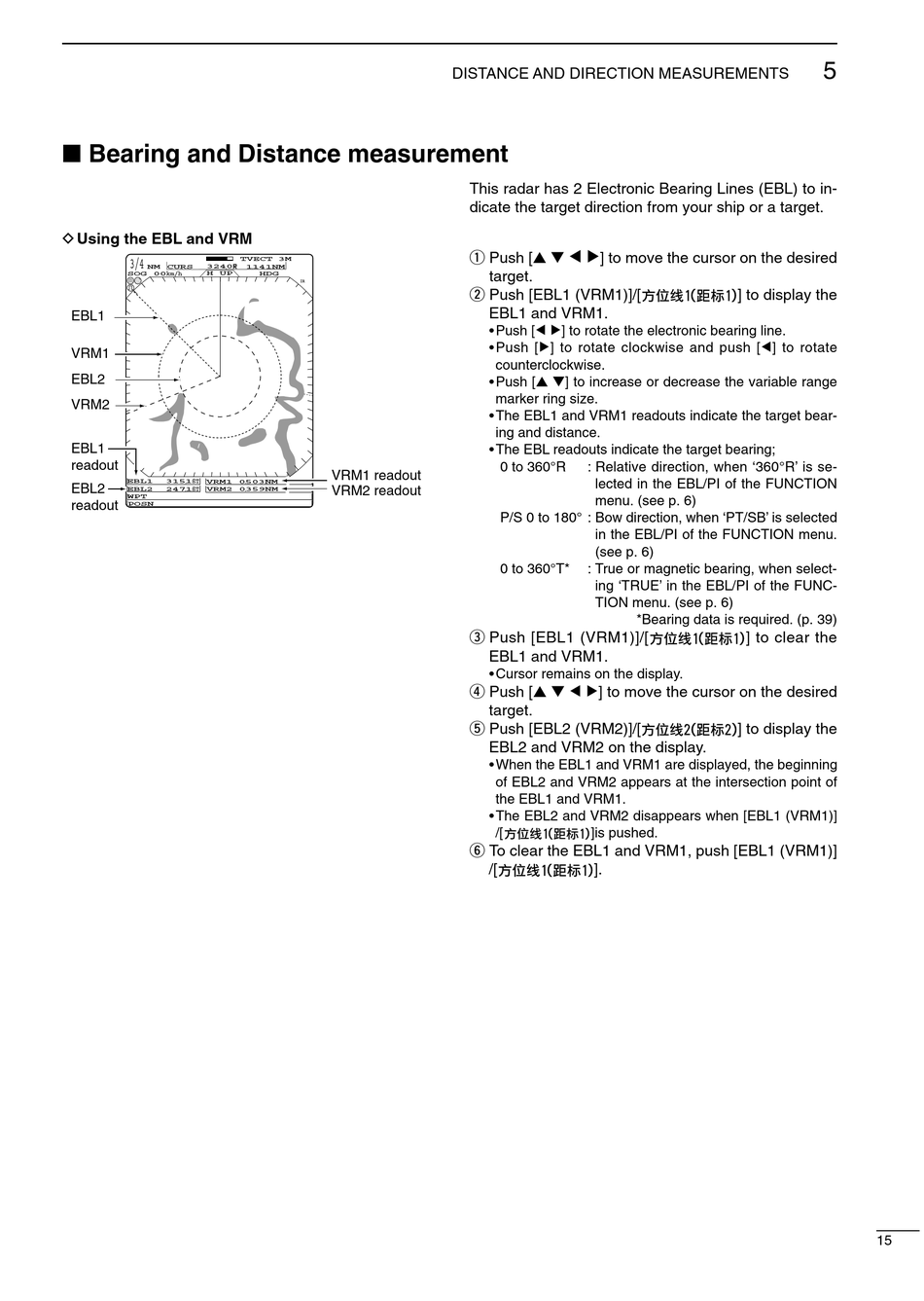

I Bearing and Distance measurement

D Using the EBL and VRM
3/4
NM CURS 3240R
H UP
SOG 00km/h
EBL1
VRM1
EBL2
VRM2
EBL1
readout
EBL1 3151ßT VRM1 0503NM
EBL2
EBL2 2471ßT VRM2 0359NM
WPT 34
readout
POSN
TVECT 3M
1141NM
HDG
IR
VRM1 readout
VRM2 readout
DISTANCE AND DIRECTION MEASUREMENTS
This radar has 2 Electronic Bearing Lines (EBL) to in-
dicate the target direction from your ship or a target.
q Push [
to move the cursor on the desired
target.
w Push [EBL1 (VRM1)]/[
EBL1 and VRM1.
• Push [ ] to rotate the electronic bearing line.
• Push [ ] to rotate clockwise and push [ ] to rotate
counterclockwise.
• Push [ ] to increase or decrease the variable range
marker ring size.
• The EBL1 and VRM1 readouts indicate the target bear-
ing and distance.
• The EBL readouts indicate the target bearing;
0 to 360°R : Relative direction, when '360°R' is se-
lected in the EBL/PI of the FUNCTION
menu. (see p. 6)
P/S 0 to 180° : Bow direction, when 'PT/SB' is selected
in the EBL/PI of the FUNCTION menu.
(see p. 6)
0 to 360°T* : True or magnetic bearing, when select-
ing 'TRUE' in the EBL/PI of the FUNC-
TION menu. (see p. 6)
e Push [EBL1 (VRM1)]/[
EBL1 and VRM1.
• Cursor remains on the display.
r Push [
to move the cursor on the desired
target.
t Push [EBL2 (VRM2)]/[
EBL2 and VRM2 on the display.
• When the EBL1 and VRM1 are displayed, the beginning
of EBL2 and VRM2 appears at the intersection point of
the EBL1 and VRM1.
• The EBL2 and VRM2 disappears when [EBL1 (VRM1)]
/[ ]is pushed.
y To clear the EBL1 and VRM1, push [EBL1 (VRM1)]
/[ ].
] to display the
*Bearing data is required. (p. 39)
] to clear the
] to display the
