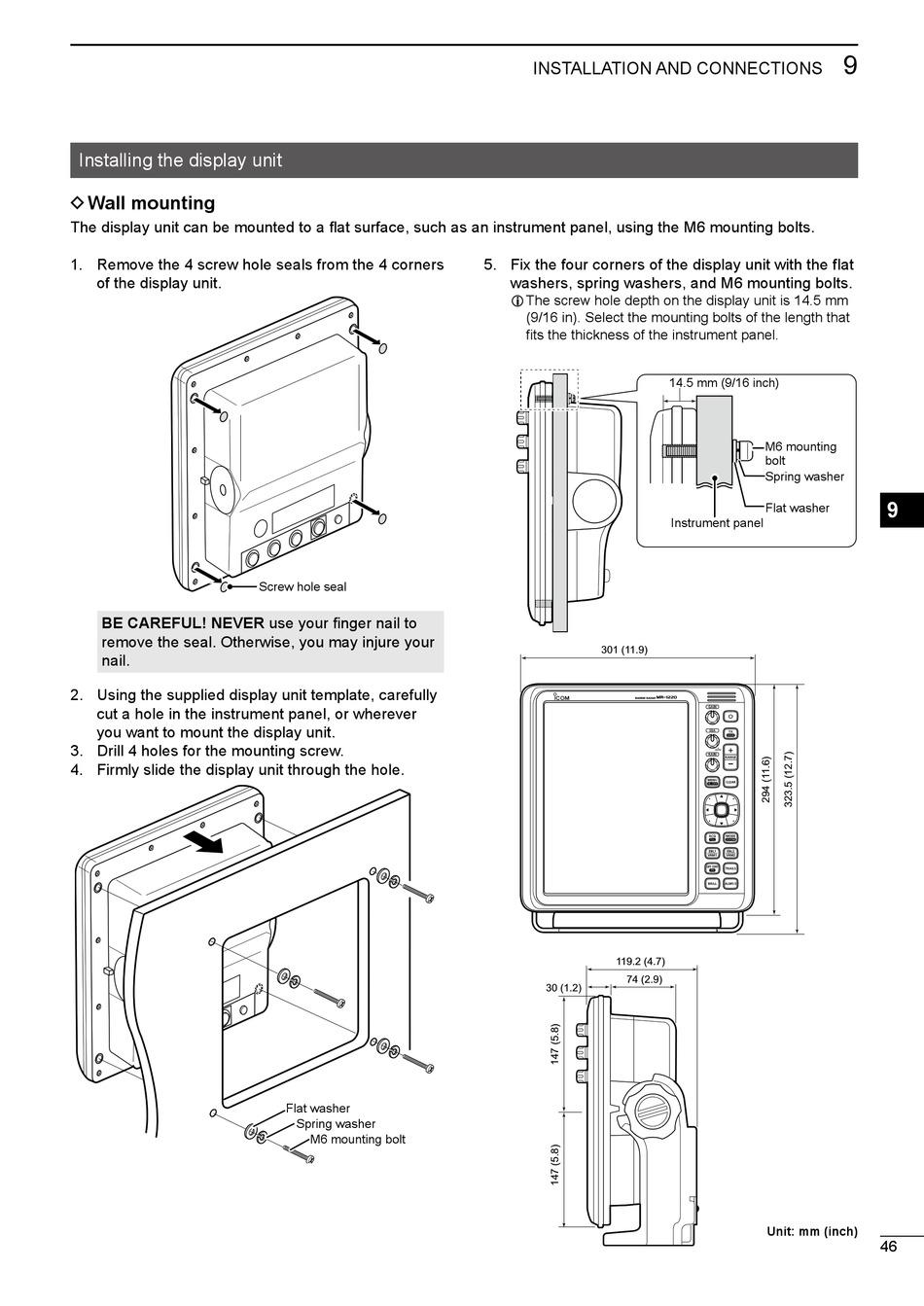

Installing the display unit
D Wall mounting
The display unit can be mounted to a flat surface, such as an instrument panel, using the M6 mounting bolts.
1. Remove the 4 screw hole seals from the 4 corners
of the display unit.
BE CAREFUL! NEVER use your finger nail to
remove the seal. Otherwise, you may injure your
nail.
2. Using the supplied display unit template, carefully
cut a hole in the instrument panel, or wherever
you want to mount the display unit.
3. Drill 4 holes for the mounting screw.
4. Firmly slide the display unit through the hole.
Screw hole seal
Flat washer
Spring washer
M6 mounting bolt
INSTALLATION AND CONNECTIONS
5. Fix the four corners of the display unit with the flat
washers, spring washers, and M6 mounting bolts.
L The screw hole depth on the display unit is 14.5 mm
(9/16 in). Select the mounting bolts of the length that
fits the thickness of the instrument panel.
301 (11.9)
MR-1220
119.2 (4.7)
74 (2.9)
30 (1.2)
14.5 mm (9/16 inch)
M6 mounting
bolt
Spring washer
Flat washer
Instrument panel
Unit: mm (inch)
