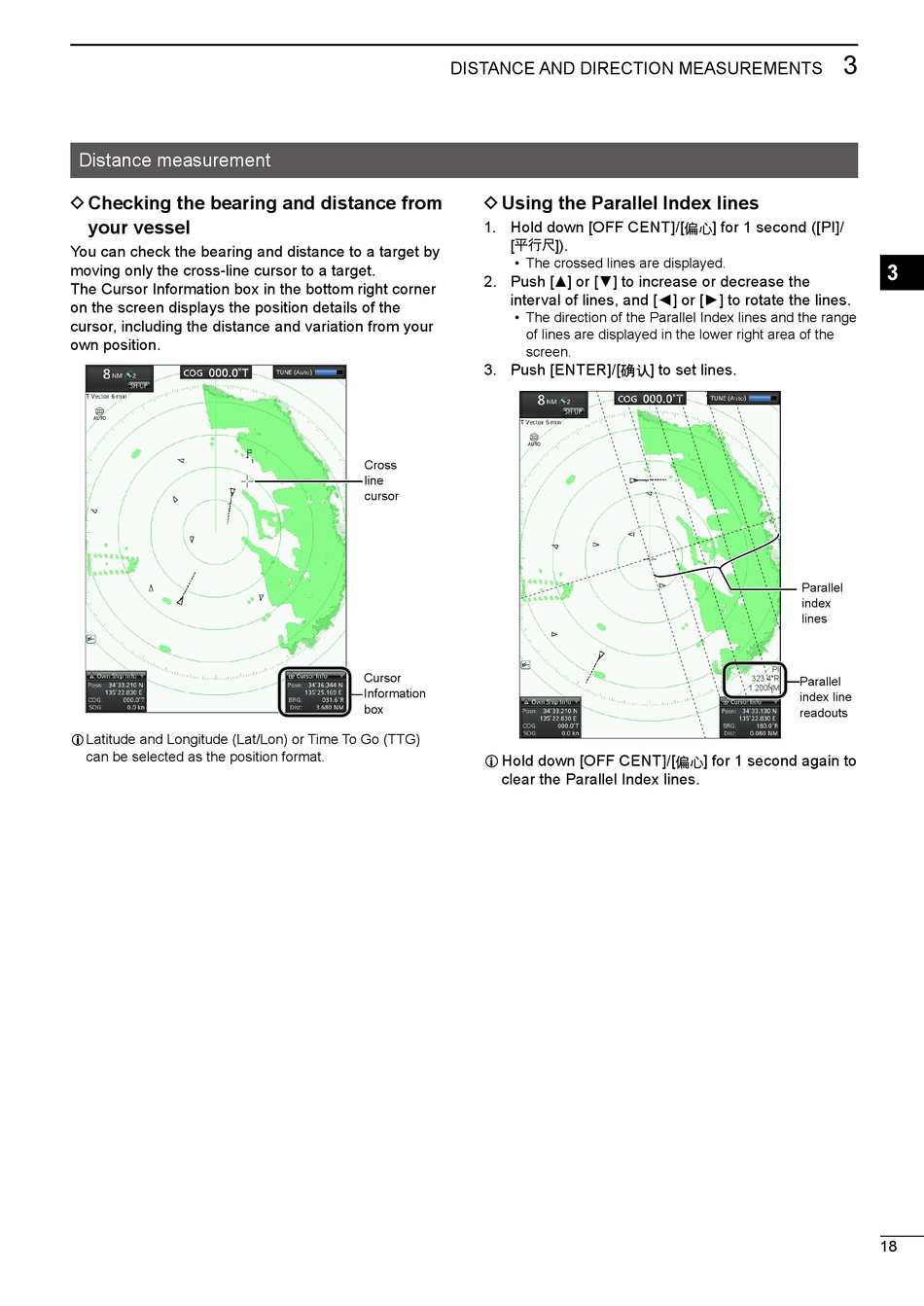

Distance measurement
D Checking the bearing and distance from
your vessel
You can check the bearing and distance to a target by
moving only the cross-line cursor to a target.
The Cursor Information box in the bottom right corner
on the screen displays the position details of the
cursor, including the distance and variation from your
own position.
L Latitude and Longitude (Lat/Lon) or Time To Go (TTG)
can be selected as the position format.
DISTaNCE aND DIRECTION MEaSuREMENTS
D Using the Parallel Index lines
1. Hold down [OFF CENT]/[
[
• The crossed lines are displayed.
2. Push [▲] or [▼] to increase or decrease the
interval of lines, and [◄] or [►] to rotate the lines.
• The direction of the Parallel Index lines and the range
of lines are displayed in the lower right area of the
screen.
3. Push [ENTER]/[
Cross
line
cursor
Cursor
Information
box
L Hold down [OFF CENT]/[
clear the Parallel Index lines.
] for 1 second ([PI]/
]).
] to set lines.
] for 1 second again to
