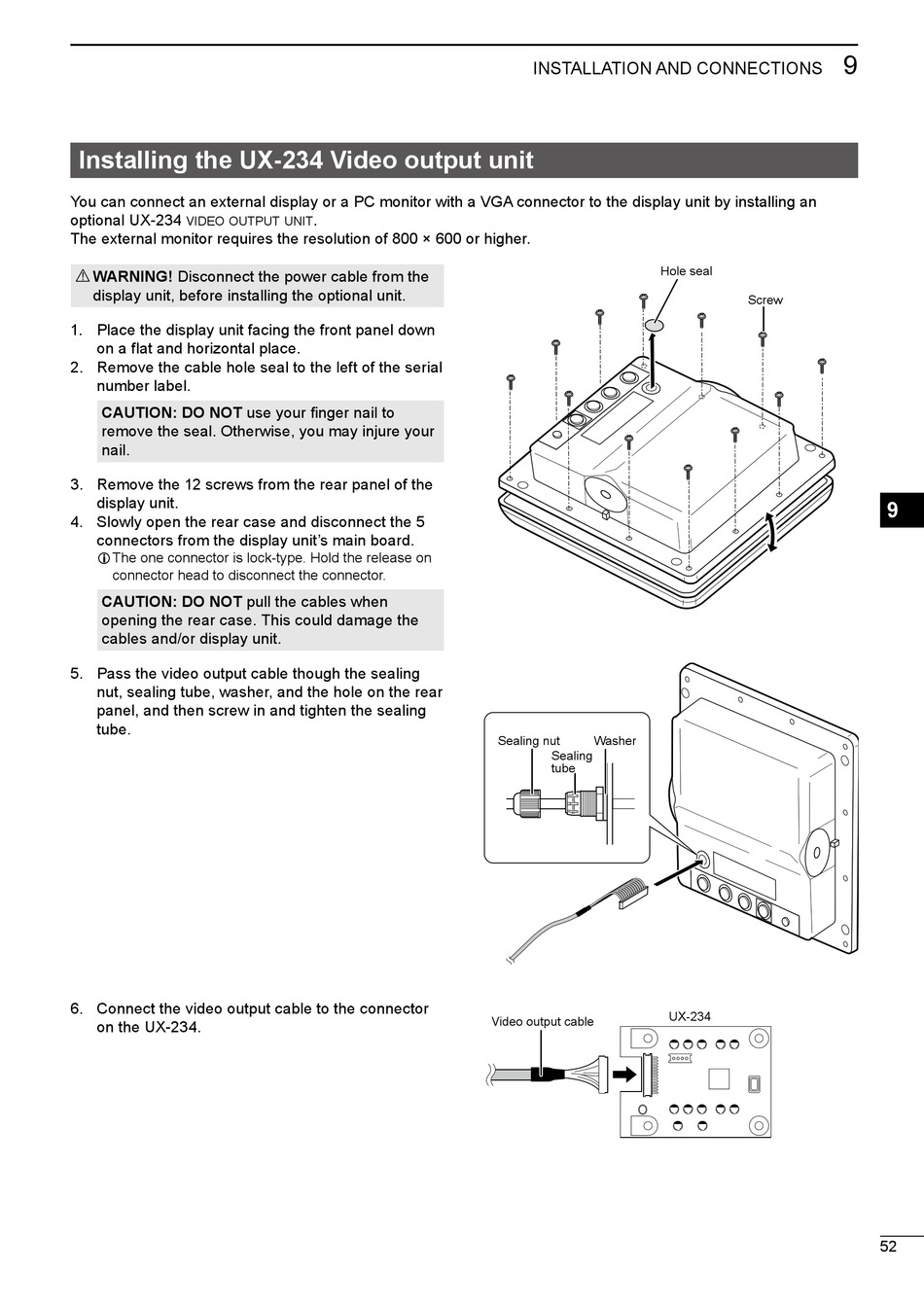

Installing the UX-234 Video output unit

Installing the UX-234 Video output unit
You can connect an external display or a PC monitor with a VGA connector to the display unit by installing an
optional UX-234
video output unit
The external monitor requires the resolution of 800 × 600 or higher.
R WARNING! Disconnect the power cable from the
display unit, before installing the optional unit.
1. Place the display unit facing the front panel down
on a flat and horizontal place.
2. Remove the cable hole seal to the left of the serial
number label.
CAUTION: DO NOT use your finger nail to
remove the seal. Otherwise, you may injure your
nail.
3. Remove the 12 screws from the rear panel of the
display unit.
4. Slowly open the rear case and disconnect the 5
connectors from the display unit's main board.
L The one connector is lock-type. Hold the release on
connector head to disconnect the connector.
CAUTION: DO NOT pull the cables when
opening the rear case. This could damage the
cables and/or display unit.
5. Pass the video output cable though the sealing
nut, sealing tube, washer, and the hole on the rear
panel, and then screw in and tighten the sealing
tube.
6. Connect the video output cable to the connector
on the UX-234.
.
INSTALLATION AND CONNECTIONS
Hole seal
Sealing nut Washer
Sealing
tube
Video output cable
Screw
UX-234
