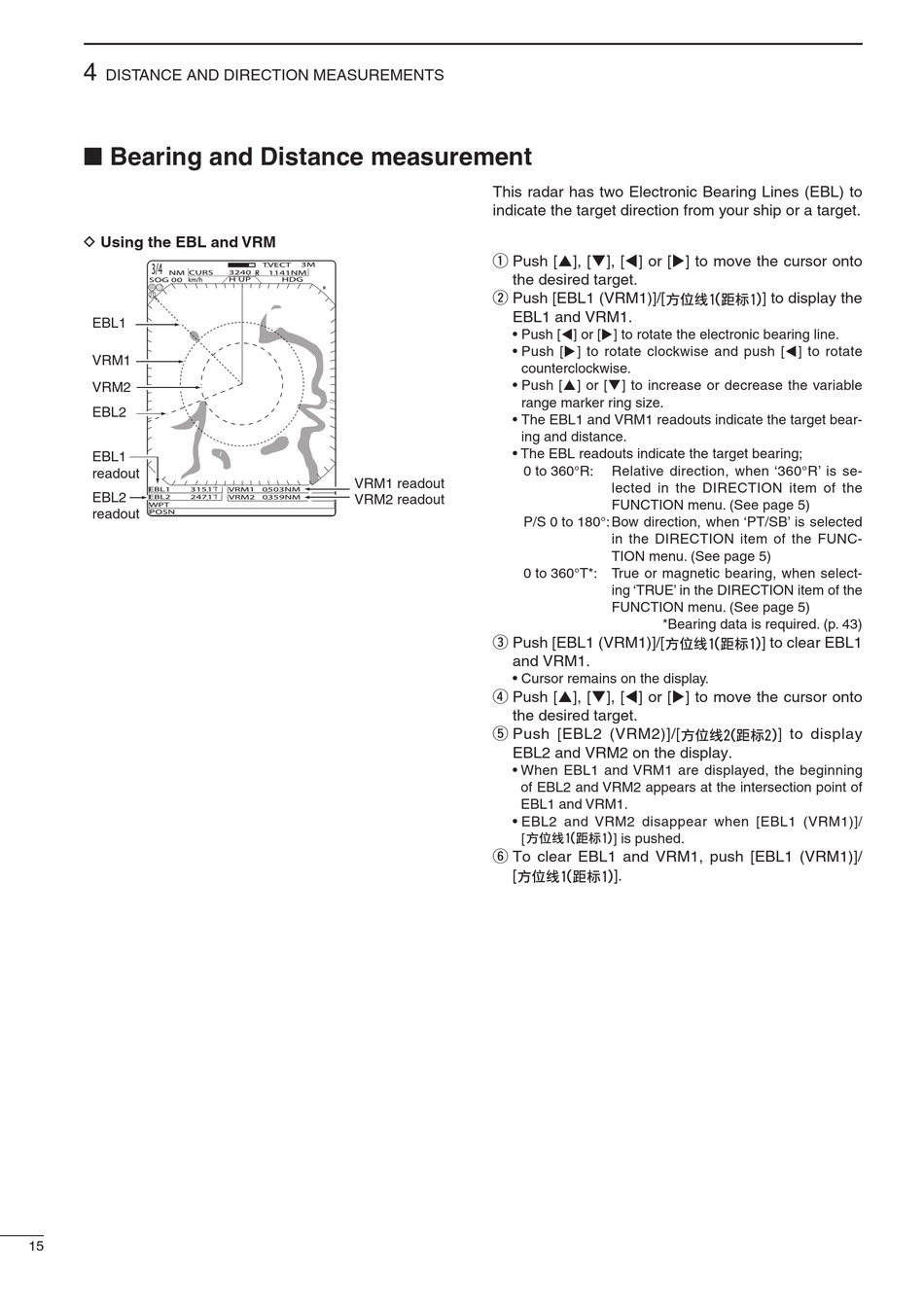

DISTANCE AND DIRECTION MEASUREMENTS

■ Bearing and Distance measurement

D Using the EBL and VRM
EBL1
VRM1
VRM2
EBL2
EBL1
readout
EBL2
readout
15
This radar has two Electronic Bearing Lines (EBL) to
indicate the target direction from your ship or a target.
q Push [p], [q], [t] or [u] to move the cursor onto
the desired target.
w Push [EBL1 (VRM1)]/[
EBL1 and VRM1.
• Push [t] or [u] to rotate the electronic bearing line.
• Push [u] to rotate clockwise and push [t] to rotate
counterclockwise.
• Push [p] or [q] to increase or decrease the variable
range marker ring size.
• The EBL1 and VRM1 readouts indicate the target bear-
ing and distance.
• The EBL readouts indicate the target bearing;
0 to 360°R:
VRM1 readout
VRM2 readout
P/S 0 to 180°: Bow direction, when 'PT/SB' is selected
0 to 360°T*: True or magnetic bearing, when select-
e Push [EBL1 (VRM1)]/[
and VRM1.
• Cursor remains on the display.
r Push [p], [q], [t] or [u] to move the cursor onto
the desired target.
t Push [EBL2 (VRM2)]/[
EBL2 and VRM2 on the display.
• When EBL1 and VRM1 are displayed, the beginning
of EBL2 and VRM2 appears at the intersection point of
EBL1 and VRM1.
• EBL2 and VRM2 disappear when [EBL1 (VRM1)]/
[
y To clear EBL1 and VRM1, push [EBL1 (VRM1)]/
[
] to display the
Relative direction, when '360°R' is se-
lected in the DIRECTION item of the
FUNCTION menu. (See page 5)
in the DIRECTION item of the FUNC-
TION menu. (See page 5)
ing 'TRUE' in the DIRECTION item of the
FUNCTION menu. (See page 5)
*Bearing data is required. (p. 43)
] to clear EBL1
] to display
] is pushed.
].
